09- front storage compartment (gts) Оригинальные запчасти для гидроциклов Sea-Doo (Bombardier) GTS, 5818 (1997)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

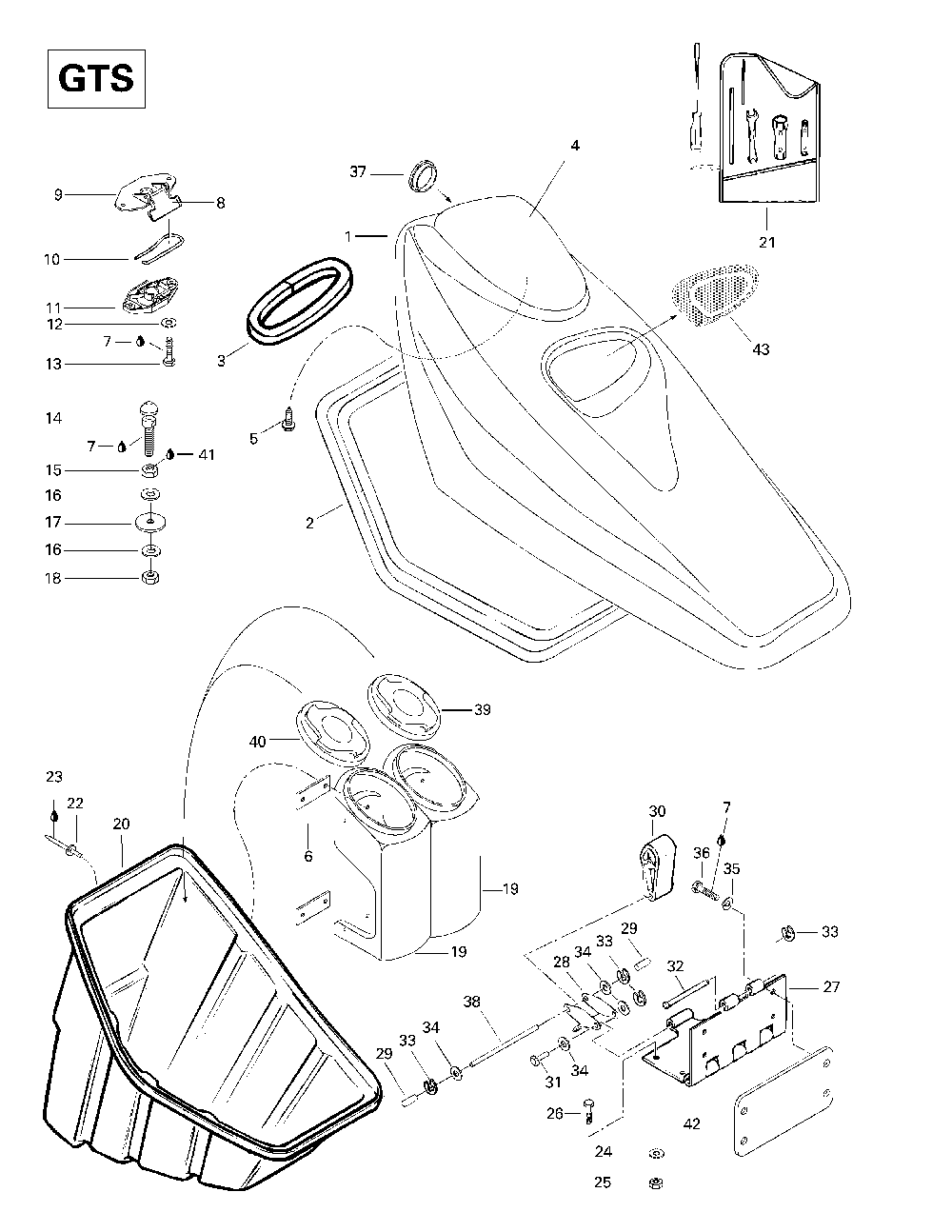

09- front storage compartment (gts)

Sea-Doo (Bombardier) GTS, 5818

09- front storage compartment (gts)

#

oem код

название

цена

1

Couv.bag.br.vio*cover-storage Gts 5818.

Couv.bag.br.vio*cover-storage Gts 5818.

2

Anneau Neoprene*neoprene Seal Gts 5818.

Anneau Neoprene*neoprene Seal Gts 5818.

3

Anneau Etanche *seal-tray Gts 5818.

Anneau Etanche *seal-tray Gts 5818.

4

Deflecteur *deflector Gts 5818.

Deflecteur *deflector Gts 5818.

5

Screw-special Gts 5818.

Screw-special Gts 5818.

6

Joint Etanche *gasket Gts 5818.

Joint Etanche *gasket Gts 5818.

7

Loctite 243 *loctite-243 Gts 5818.

Loctite 243 *loctite-243 Gts 5818.

8

Levier Loquet *lever-latch Gts 5818.

Levier Loquet *lever-latch Gts 5818.

9

Couv.loquet *cover-latch Gts 5818.

Couv.loquet *cover-latch Gts 5818.

10

Ressort Loquet *spring-latch Gts 5818.

Ressort Loquet *spring-latch Gts 5818.

11

Loquet Assemble*latch Ass Y Gts 5818.

Loquet Assemble*latch Ass Y Gts 5818.

12

Washer-flat Din.125a-a2 Gts 5818.

Washer-flat Din.125a-a2 Gts 5818.

13

Screw-hex.cap Din.931a2 Gts 5818.

Screw-hex.cap Din.931a2 Gts 5818.

14

Ergot D Ancrage*stud-latch Gts 5818.

Ergot D Ancrage*stud-latch Gts 5818.

15

Nut-jam Hexagonal Din.439b-a2 Gts 5818.

Nut-jam Hexagonal Din.439b-a2 Gts 5818.

16

Washer-flat Din.9021b-a2 Gts 5818.

Washer-flat Din.9021b-a2 Gts 5818.

17

Rondelle Caout.*washer-rubber Gts 5818.

Rondelle Caout.*washer-rubber Gts 5818.

18

Nut-stop Elastic Din.985a2 Gts 5818.

Nut-stop Elastic Din.985a2 Gts 5818.

19

Boitier Extinct*housing-exting Gts 5818.

Boitier Extinct*housing-exting Gts 5818.

20

Coffre Bagage *tray-storage Gts 5818.

Coffre Bagage *tray-storage Gts 5818.

21

Owner Tool Kit Gts 5818.

Owner Tool Kit Gts 5818.

22

Rivet Avdel *rivet-avdel Gts 5818.

Rivet Avdel *rivet-avdel Gts 5818.

24

Washer-flat Din.9021b-a2 Gts 5818.

Washer-flat Din.9021b-a2 Gts 5818.

25

Nut-stop Elastic Din.985-a2 Gts 5818.

Nut-stop Elastic Din.985-a2 Gts 5818.

26

Screw-hex.cap Din.933a2 Gts 5818.

Screw-hex.cap Din.933a2 Gts 5818.

27

Charniere *hinge Gts 5818.

Charniere *hinge Gts 5818.

28

Ressort *spring Gts 5818.

Ressort *spring Gts 5818.

29

Capuchon Court *cap-short Gts 5818.

Capuchon Court *cap-short Gts 5818.

30

Loquet *latch Gts 5818.

Loquet *latch Gts 5818.

31

Goupille Courte*pin-short Gts 5818.

Goupille Courte*pin-short Gts 5818.

32

Goupille Longue*pin-long Gts 5818.

Goupille Longue*pin-long Gts 5818.

33

Circlip *circlip Gts 5818.

Circlip *circlip Gts 5818.

35

Washer-lock Helical Din.127b-a2 Gts 5818.

Washer-lock Helical Din.127b-a2 Gts 5818.

36

Screw-hex.cap Din.933a2 Gts 5818.

Screw-hex.cap Din.933a2 Gts 5818.

37

Capuchon Jauge *cap-gauge Gts 5818.

Capuchon Jauge *cap-gauge Gts 5818.

38

Goupille *pin Gts 5818.

Goupille *pin Gts 5818.

39

Cap Extincteur *cap-extinguish Gts 5818.

Cap Extincteur *cap-extinguish Gts 5818.

40

Capuchon Rang. *cap-storage Gts 5818.

Capuchon Rang. *cap-storage Gts 5818.

41

Loctite 271 *loctite-271 Gts 5818.

Loctite 271 *loctite-271 Gts 5818.

42

Entretoise *spacer Gts 5818.

Entretoise *spacer Gts 5818.

43

Grille Noire *grill-black Gts 5818.

Grille Noire *grill-black Gts 5818.
