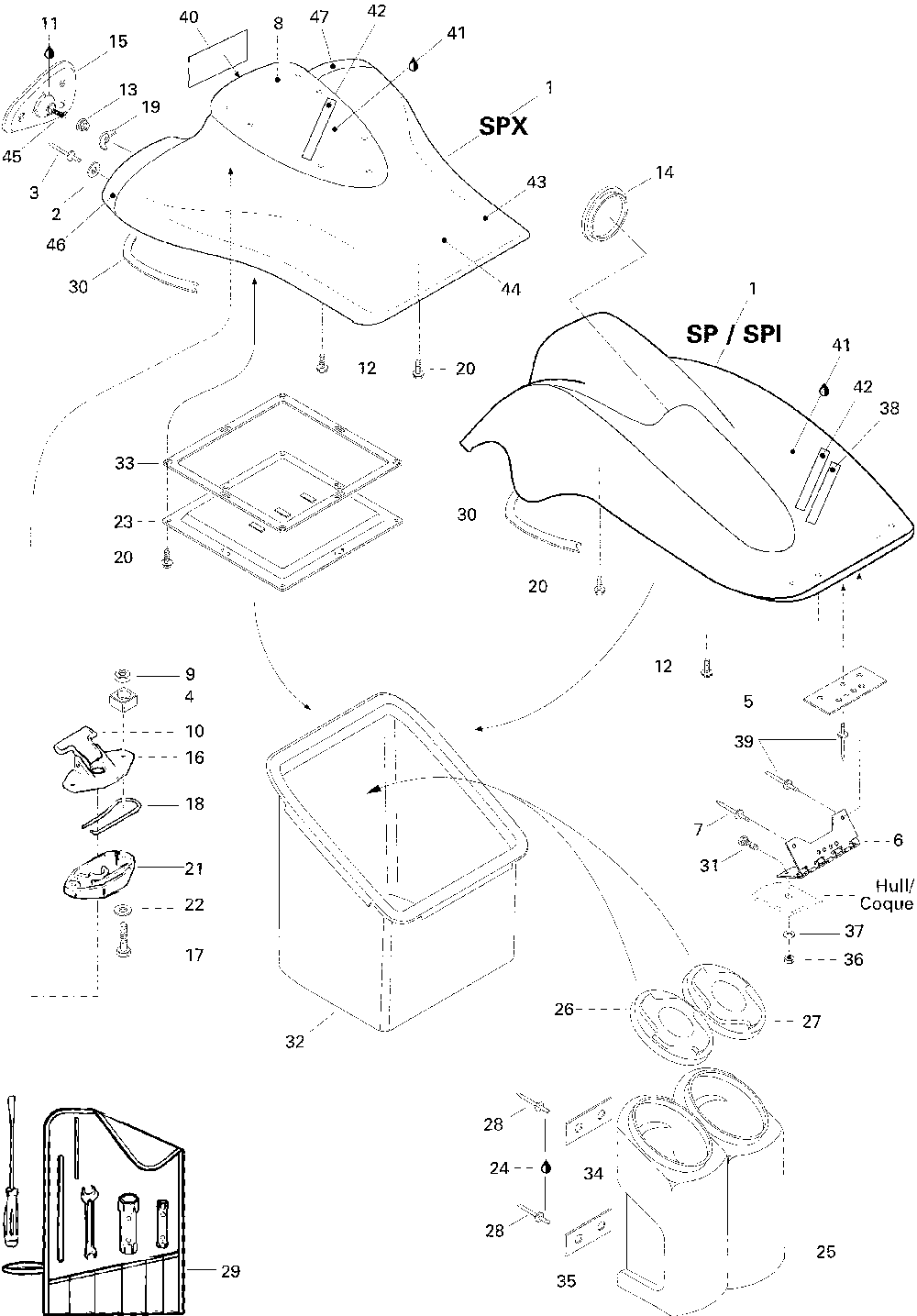

09- front storage compartment spx

Sea-Doo (Bombardier) SPX, 5877
Sea-Doo (Bombardier)
#oem кодцена
1
295500345
Storage Cover Kit Marine Green Includes 2, 3, 4, 5, 6, 7, 8, 9, 12, 20, 30, 43, 44
2
213200016
Washer-flat Emhart
3
293150008
Заклепка 3/16
4
269500252
Держатель гайки
5
269500107
Plaque Retenue *plate-retainer
6
269500672
Charniere Stlss*hinge-stlss.
7
293150039
Заклепка 3/16
8
269500230
Дефлектор
9
232561600
Гайка стопорная эластичная 985-A2
10
269700077
Levier Loquet *lever-latch
11
293550010
Graisse Synth. *grease-synth.
12
241140060
Винт K40 X 10
13
269500082
Ressort Miroir *spring-mirror
15
269500055
Miroir Ass.dr. *mirror-assy.rh
15
269500056
Miroir Ass.ga. *mirror-assy.lh
16
269700076
Couv.loquet *cover-latch
17
207163560
Винт
18
269700017
Ressort Loquet *spring-latch
19
232661600
Nut-wing Ansi B18.17 Type A
20
241141660
Винт K40 X 16
21
269700109
Loquet Assemble*latch Ass Y
22
234061600
Шайба
23
269500250
Couv.acces Ass.*cover-acc.assy
25
269500606
Boitier Extinct*housing-exting
26
269500603
Cap Extincteur *cap-extinguish
27
269500604
Capuchon Rang. *cap-storage
28
293150017
Rivet Avdel *rivet-avdel
29
295000066
Owner Tool Kit
30
293200020
Anneau Etanche *seal-tray
31
207151660
Винт
32
269500416
Coffre Bagage *tray-storage
34
293250037
Прокладка
36
232551600
Гайка
37
234051600
Шайба
40
219900772
Decal.cadran *decal-gauge
42
219900673
Decal.ident.spx*decal-ident.
43
269500246
Couv.bagage Sup*cover-stor.upp
45
269500079
Rotule Miroir *mirror Joint
46
269500248
Boitier Miroir *housing-rh.
47
269500249
Boitier Miroir *housing-lh.
