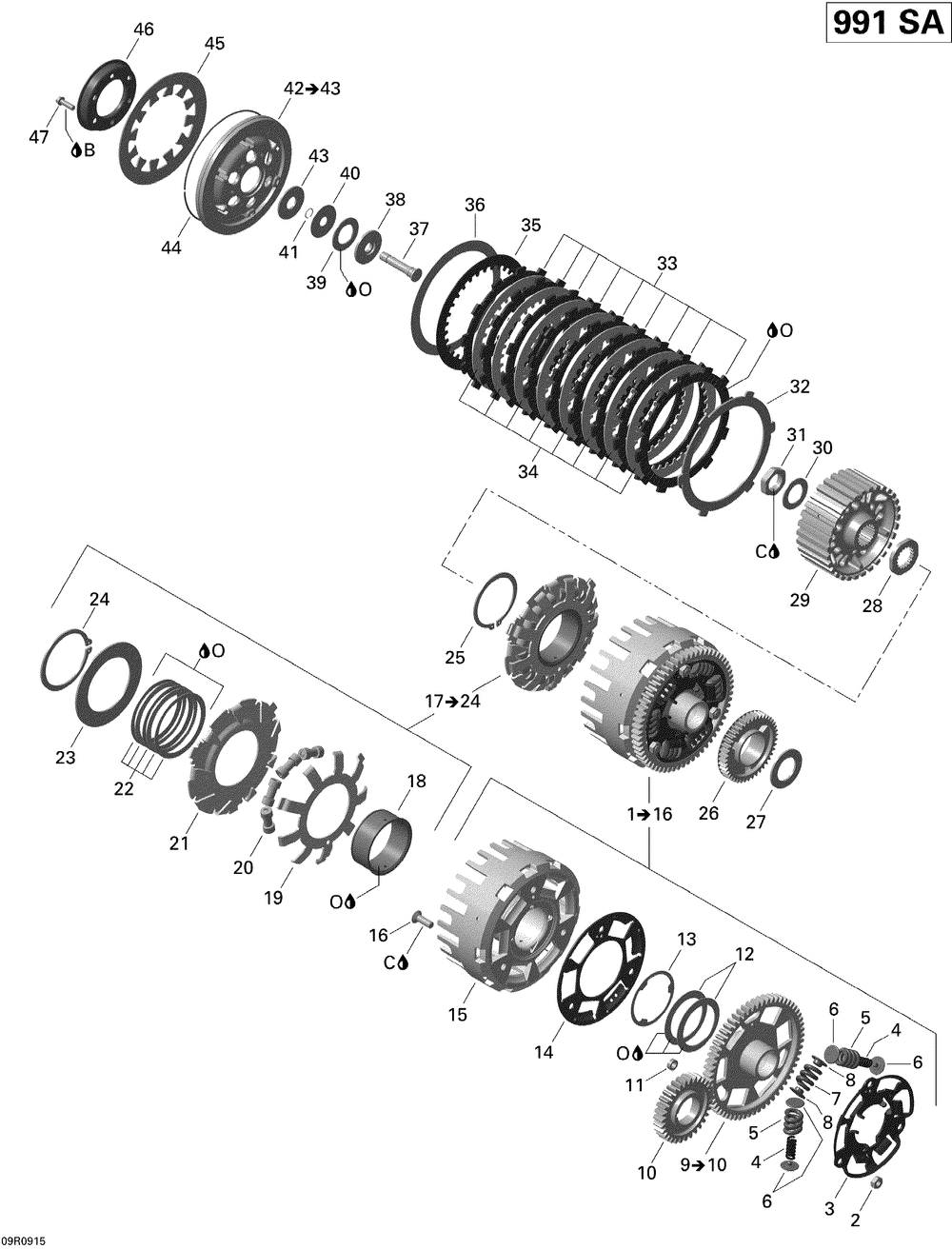

Сцепление

Can-Am (Bombardier) Spyder RS Roadster SE5
Can-Am (Bombardier)
#oem кодцена
2
232081414
Гайка
3
420259583
Plaque*support Plate
4
420238140
Ressort*spring
5
420238135
Ressort*spring
6
420247972
Reteneur*spring Retainer
7
420238130
Ressort* White Spring
8
420247976
"reteneur*spring Retainer D 11, 5"
9
420684815
Engrenage*primary Drive Gear (includes 9 To 10 )
11
420247614
Bague*distance Sleeve
12
420239395
Ressort*disc Spring
13
420627916
Шайба упорная
14
420259685
Plaque*support Plate
15
420659720
Tambour Embray.*drum-clutch
16
420941835
Vis Plate*screw-flat Head M8 X 25
17
420685543
Embr Centrifug*centrifugal Clutch Assy (includes 17 To 24 )
18
420659850
Coussinet*bushing
19
420659821
Came*cam
20
420229947
Masse Centrifug*weight-centrifug Assy
21
420659740
Plateau Press. *plate-pressure
22
420238520
Ressort*disk Spring
23
420626390
Plaque*stop Plate
24
420245080
Anneau*retaining Ring
25
420245070
Anneau*retaining Ring
26
420634476
Engrenage Pompe*gear-oil Pump
27
420626540
Шайба упорная
28
420627220
Anneau Butee *ring-thrust
29
420659750
Moyeu Embrayage*hub-clutch
30
420245830
Rondelle Ressort *washer-spring
31
420242950
Ecrou Hex.m24 *nut-hex.m24
32
420659970
Plateau 2.5mm *plate-2.5mm
33
420659800
Plateau 3.5mm *plate-friction
34
420259263
Plateau 1.5mm *plate-1.5mm
35
420281535
Plateau*adjustment Plate Kit
36
420238856
Ressort*disc Spring
37
420659797
Goupille*pin
38
420659890
Шайба упорная
39
420632700
Roulement*needle Bearing
40
420626560
Шайба упорная
41
420245440
Circlip 12 *circlip-12
42
420659735
Plateau Press. *plate-pressure (includes 42 To 43 )
43
420626570
Шайба упорная
44
420245250
Anneau*retaining Ring
45
420238530
Ressort*disk Spring
46
420259860
Plateau*plate Inner
47
420440207
Screw Torx Flange M6 X 20
B
293800060
Фиксатор резьбы loctite-243
C
413711400
Герметик loctite-648
13
420239395
Ressort*disc Spring
