Wiring harness (model k6/k7/k8) Оригинальные запчасти для мотоциклов Suzuki DR Z400S (2008)

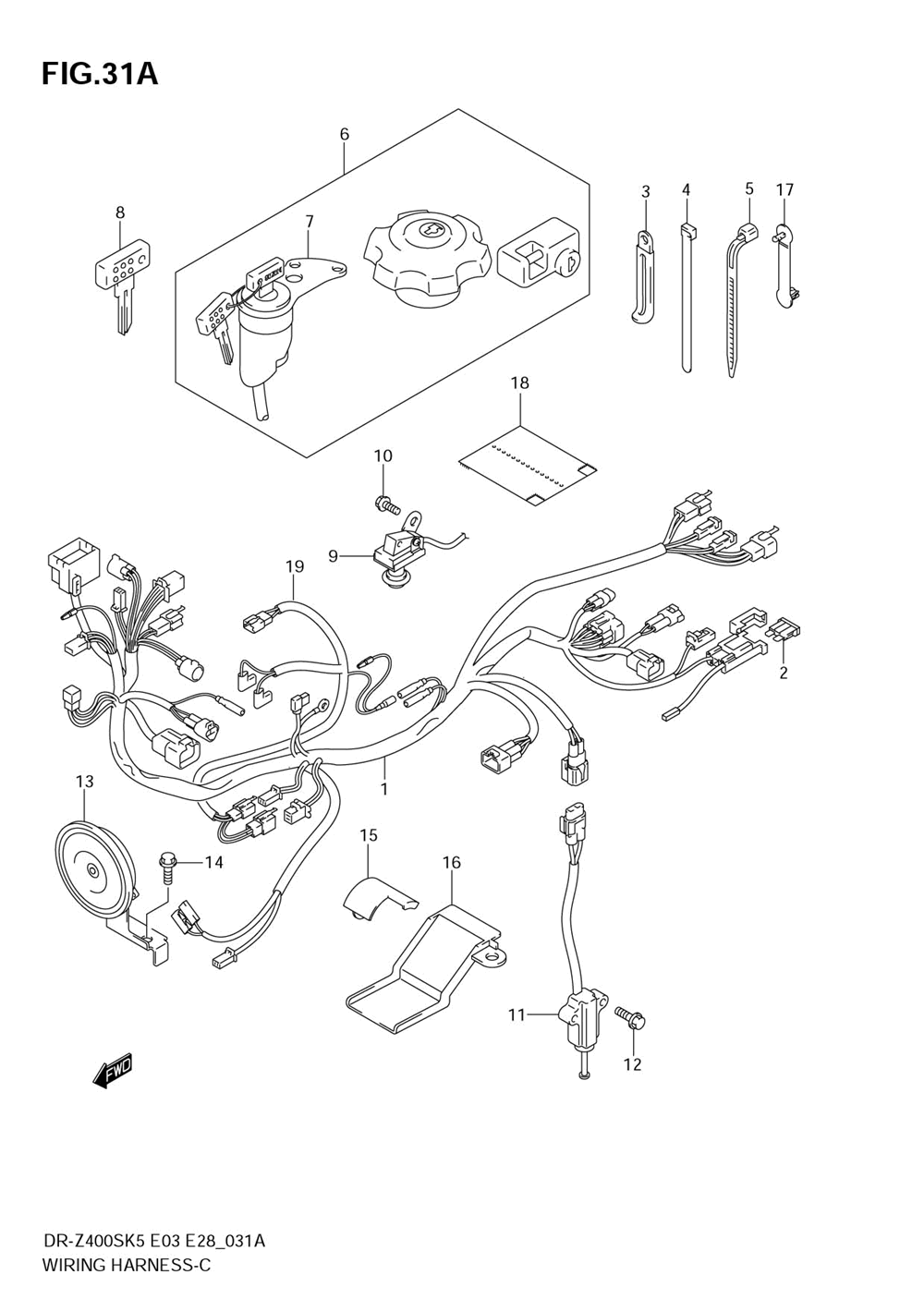

Wiring harness (model k6/k7/k8)

Suzuki DR Z400S

oem код

название

цена

1-1

36610-29FB0

Harness, Wiring (model K6/k7)

1-2

36610-29FF0

Harness, Wiring (model K8)

09481-20101

.fuse (20a) ()

3-1

09404-06432

.clamp, Sw Leads ()

3-2

09404-06434

Clamp (l:95) ()

09407-14407

.clamp, Harness (l:140) ()

5-1

09407-14403

.clamp, Battery Cable ()

5-2

09407-18402

Clamp (l:165) ()

5-3

09407-25401

Clamp (l:235) ()

6-1

37000-29821

Lock Set ()

6-2

37000-29831

Lock Set (e33)

37110-29F00

.switch Assy, Ignition ()

8-1

37146-01F00

Key, Blank (type:c) (opt)

8-2

37146-01F10

Key, Blank (type:d) (opt)

8-3

37146-01F20

Key, Blank (type:e) (opt)

8-4

37146-01F30

Key, Blank (type:f) (opt)

37740-29F00

Switch Assy, Stop Lamp ()

37840-11X50

Switch Assy, Side Stand ()

Болт

Horn Assy ()

Болт

Protector, Wiring Harness ()

36611-29F00

Protector, Wiring Harness ()

36651-48E00

Clamp (l:63) ()

36618-15D20

Cover, Wiring Harness ()

36856-29F00

Wire, Carburetor Heater (opt)
