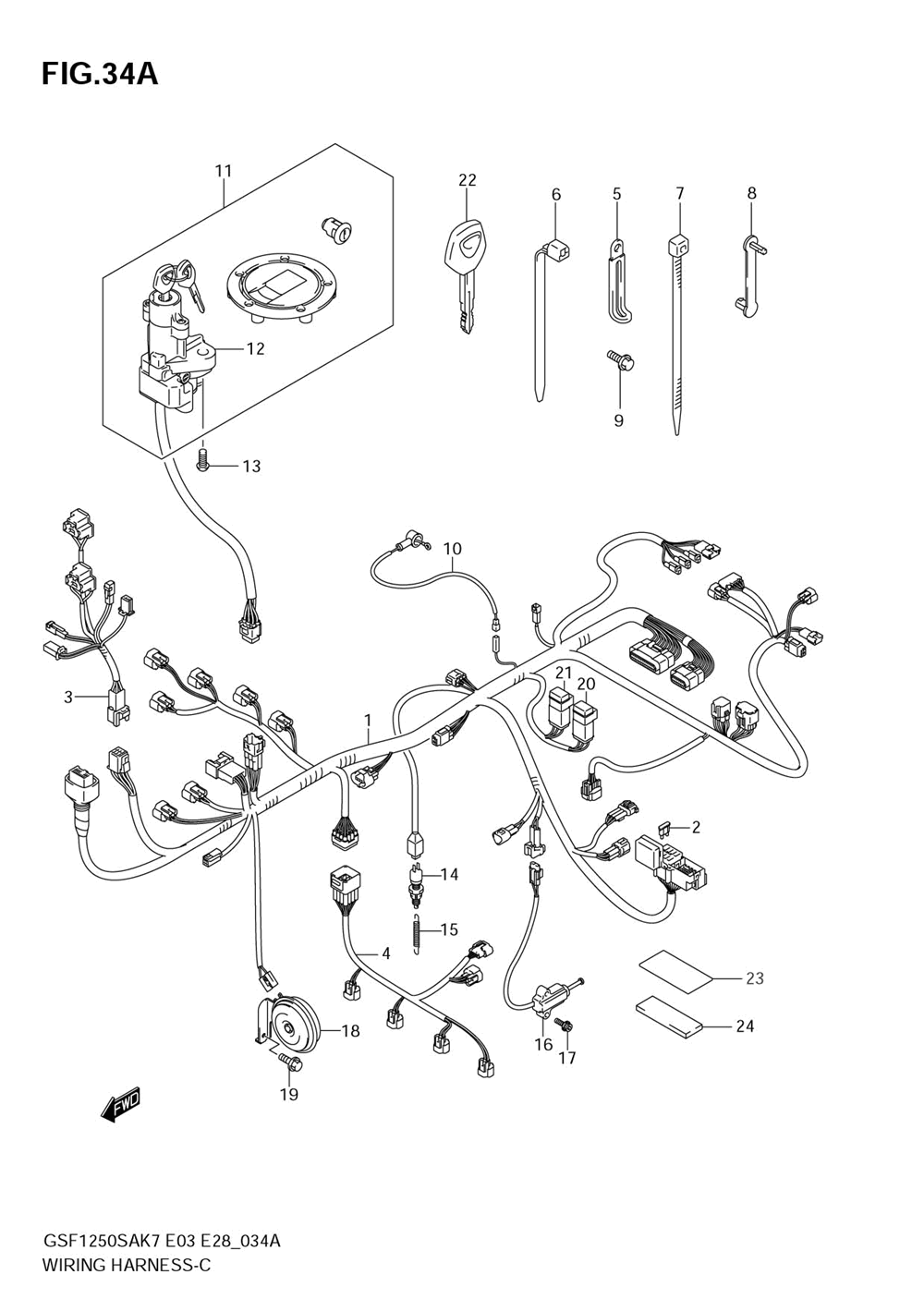

Wiring harness (gsf1250sk7/sk8) Оригинальные запчасти для мотоциклов Suzuki GSF1250S Bandit (2008)

Wiring harness (gsf1250sk7/sk8)

Suzuki GSF1250S Bandit

oem код

название

цена

1-1

36610-18H80

Harness, Wiring ()

1-2

36610-18H90

Harness, Wiring (e33)

2-1

09481-10501

.fuse (10a) ()

2-2

09481-15501

.fuse (15a) ()

36620-38G00

Harness, Wiring ()

36859-18H00

Wire, Injector L ()

5-1

09404-06432

.clamp, Sw Leads ()

5-2

09404-06434

Clamp (l:95) ()

6-1

09407-11401

.clamp, Sw Lead (l:95) ()

6-2

09407-14403

.clamp, Battery Cable ()

6-3

09407-18402

Clamp (l:165) ()

6-4

09407-25401

Clamp (l:235) ()

09407-14407

.clamp, Harness (l:140) ()

09407-03401

Clamp ()

01550-0612A

Болт

36851-18H00

Wire, Oil Pressu ()

11-1

Lock Set ()

Lock Assy, Steer ()

Bolt (8x20) ()

Switch Assy, Stop Lamp ()

09443-06054

Spring ()

37840-25D00

Switch Assy, Side Stand ()

Болт

Horn Assy ()

Болт

Relay Assy, Fuel Pump ()

37146-33E00

Key, Blank (opt)

63131-10F00

Tape (30x75x0.2) ()

33652-07D00

Cushion, Control (80x80x2) ()
