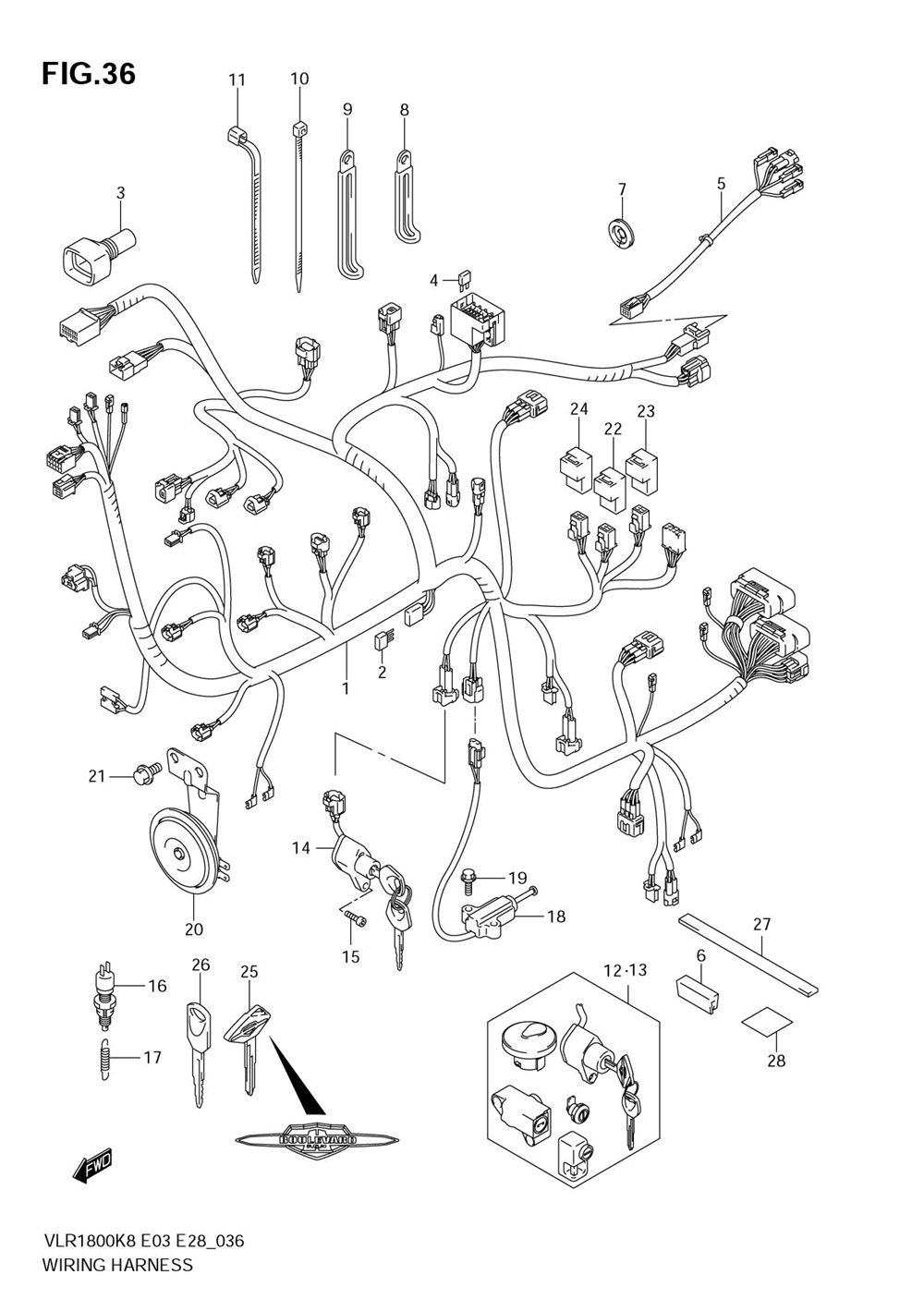

Электрика Оригинальные запчасти для мотоциклов Suzuki VLR1800 Boulevard C109R (2008)

Электрика

Suzuki VLR1800 Boulevard C109R

oem код

название

цена

1-1

36610-22H30

Harness, Wiring ()

1-2

36610-22H40

Harness, Wiring (e33)

36611-38A00

.diode ()

36618-33E00

.cap ()

4-1

09481-10501

.fuse (10a) ()

4-2

.fuse (15a) ()

Wire, Rear Comb ()

Molding, Frame C ()

Grommet ()

.clamp, Sw Leads ()

9-1

09404-08205

Clamp L:62 ()

9-2

09404-08419

Clamp (l:97) ()

09407-14407

.clamp, Harness (l:140) ()

11-1

09407-18402

Clamp (l:165) ()

11-2

09407-19401

Clamp ()

11-3

Clamp (l:235) ()

Lock Set ()

Lock Set (e33)

Switch Assy, Ign ()

.bolt, Piston Jet Valve ()

37740-24A00

Switch Assy, Stop Lamp ()

09443-06077

Spring, Stop Lamp Switch ()

Switch Assy, Sid ()

Болт

Horn Assy ()

Болт

Relay Assy, Fuel Pump ()

38740-24A00

Relay Assy, Headlamp ()

37146-10F00

Key, Blank Boulevard (opt)

37146-48E10

Key, Blank (opt)

94612-01H00

Cushion, Windscr ()

36920-23H10

Protector, 20x20 ()
