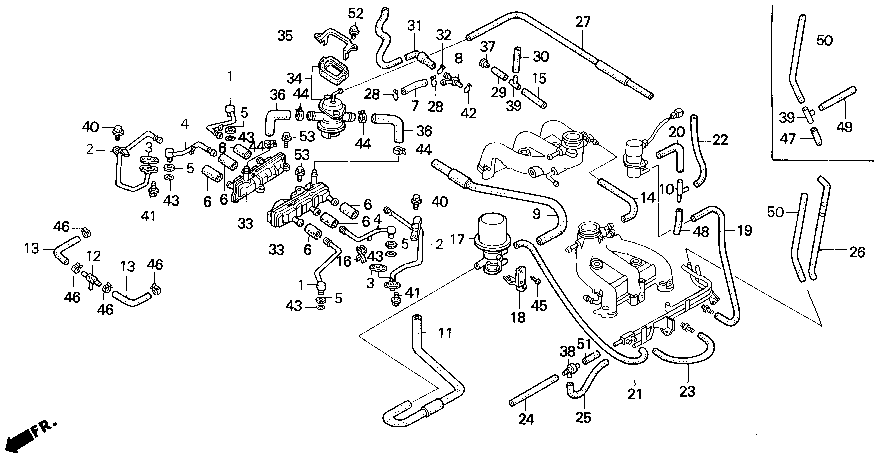

Tubing 2

Honda GL1500A
Honda
#oem кодцена
01
17130-MN5-020
Pipe, Air Feed
02
17140-MN5-000
Pipe B, Air Feed
03
17142-MN5-000
Gskt, Air Feed Pipe
04
17150-MN5-020
Pipe, Air Feed
05
17155-MT2-000
Rub, Air Feed Pipe
06
17161-MN5-010
Hose, Air Feed
07
17162-MN5-000
Шланг
08
17163-MN5-000
Joint B (three-way)
09
17164-MN5-000
Шланг
10
17165-MY4-000
Joint (three-way)
11
17170-MY4-000
Tube, Air In.
12
17171-MW5-003
Клапан
13
17172-MN5-000
Tube G, Air In.
14
17173-MN5-000
Tube, Pressure Boost
15
17175-MT2-000
Tube, Pressure Boost
16
17176-MN5-000
Clamp J, Hose
17
17340-MT2-003
Valve, Shot Air
18
17342-MT2-000
Stay, Shot Air Valve
19
17350-MT8-000
Tube, Pressure Boost
20
17351-MT8-000
Tube, Pressure Boost
21
17352-MT8-000
Tube, Pressure Boost
22
17353-MT8-000
Tube, Pressure Boost
23
17354-MT8-000
Tube, Pressure Boost
24
17355-MT8-000
Tube, Pressure Boost
25
17356-MT8-000
Tube, Pressure Boost
26
17357-MY4-000
Tube, Pressure Boost
27
17358-MT8-000
Tube, Pressure Boost
28
17369-KB4-670
Зажим
29
17461-MT2-000
Tube, Pressure Boost
30
17462-MT8-000
Tube (4.5x260)
31
17472-MT2-000
Tube (14mm)
32
17724-102-700
Зажим
33
18610-MW5-000
Case, Reed Valve
34
18650-MN5-024
Клапан
35
18652-MN5-000
Опора
36
18654-MN5-000
Hose, Air In.
37
36034-PD1-000
Уплотнительная пробка
38
36627-MN5-003
Клапан
39
36010-PA6-004
Наконечник
40
90016-MN5-000
Болт (6x14)
41
90040-MN5-000
Болт (6x18)
42
90654-MK3-780
Clip, Tube (b14)
43
91305-422-000
Кольцо (9.8x2.4)
44
91417-SZ3-003
Clamp (d20)
45
93904-25180
Винт (5x10)
46
95002-41200-08
Clamp, Tube (d12)
47
95005-35008-10M
Шланг (3.5x8000)
51
95005-45001-10M
Шланг (4.5x1000)
52
95701-06014-08
Болт (6x14)
53
95701-06025-08
Болт (6x25)
