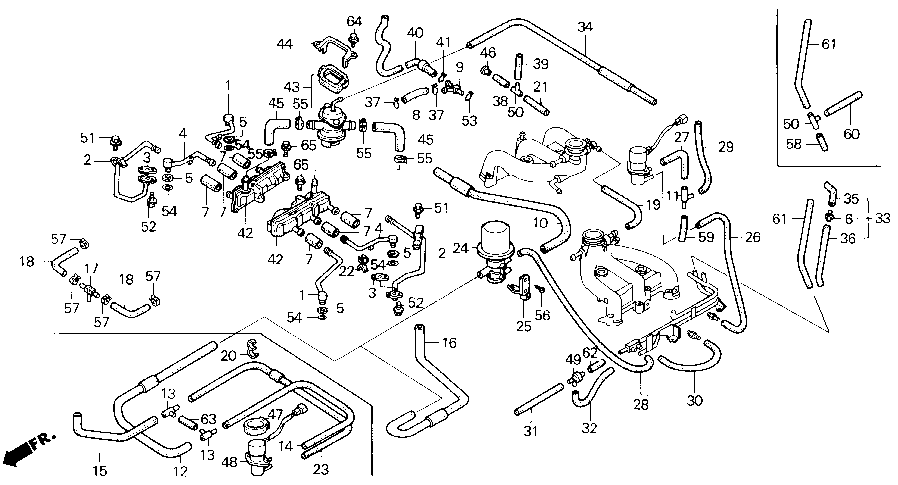

Tubing (2) 90-91

Honda GL1500SE
Honda
#oem кодцена
01
17130-MN5-020
Pipe, Air Feed
02
17140-MN5-000
Pipe B, Air Feed
03
17142-MN5-000
Gskt, Air Feed Pipe
04
17150-MN5-020
Pipe, Air Feed
05
17155-MT2-000
Rub, Air Feed Pipe
06
17159-MT8-000
Joint (2-way)
07
17161-MN5-010
Hose, Air Feed
08
17162-MN5-000
Шланг
09
17163-MN5-000
Joint B (three-way)
10
17164-MN5-000
Шланг
11
17165-MY4-000
Joint (three-way)
16
17170-MY4-000
Tube, Air In.
17
17171-MW5-003
Клапан
18
17172-MN5-000
Tube G, Air In.
19
17173-MN5-000
Tube, Pressure Boost
21
17175-MT2-000
Tube, Pressure Boost
22
17176-MN5-000
Clamp J, Hose
24
17340-MT2-003
Valve, Shot Air
25
17342-MT2-000
Stay, Shot Air Valve
26
17350-MT8-000
Tube, Pressure Boost
27
17351-MT8-000
Tube, Pressure Boost
28
17352-MT8-000
Tube, Pressure Boost
29
17353-MT8-000
Tube, Pressure Boost
30
17354-MT8-000
Tube, Pressure Boost
31
17355-MT8-000
Tube, Pressure Boost
32
17356-MT8-000
Tube, Pressure Boost
33
17357-MT8-010
Tube, Pressure Boost
34
17358-MT8-000
Tube, Pressure Boost
35
17361-MT8-000
Tube, Pressure Boost
36
17362-MT8-000
Tube, Pressure Boost
37
17369-KB4-670
Зажим
38
17461-MT2-000
Tube, Pressure Boost
39
17462-MT8-000
Tube (4.5x260)
40
17472-MT2-000
Tube (14mm)
41
17724-102-700
Зажим
42
18610-MW5-000
Case, Reed Valve
43
18650-MN5-024
Клапан
44
18652-MN5-000
Опора
45
18654-MN5-000
Hose, Air In.
46
36034-PD1-000
Уплотнительная пробка
49
36627-MN5-003
Клапан
50
36010-PA6-004
Наконечник
51
90016-MN5-000
Болт (6x14)
52
90040-MN5-000
Болт (6x18)
53
90654-MK3-780
Clip, Tube (b14)
54
91305-422-000
Кольцо (9.8x2.4)
55
91417-SZ3-003
Clamp (d20)
56
93904-25180
Винт (5x10)
57
95002-41200-08
Clamp, Tube (d12)
58
95005-35008-10M
Шланг (3.5x8000)
62
95005-45001-10M
Шланг (4.5x1000)
64
95701-06014-08
Болт (6x14)
65
95701-06025-08
Болт (6x25)
