Редуктор Оригинальные запчасти для мотоциклов Honda GL1500A (1994)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

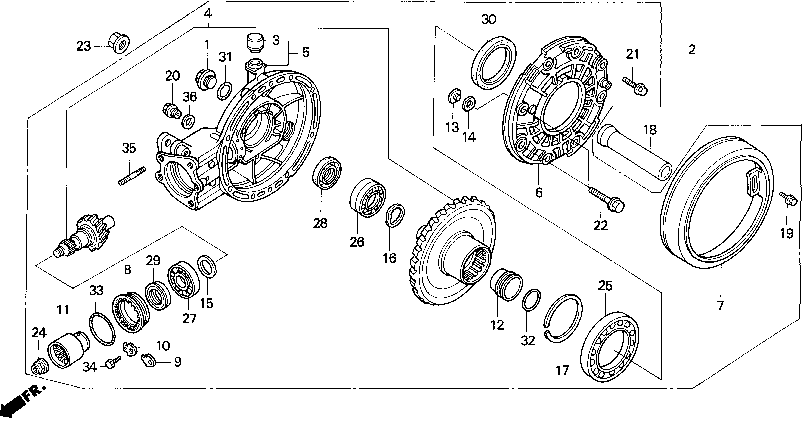

Редуктор

Honda GL1500A

Редуктор

#

oem код

название

цена

01

Крышка

Крышка

03

Cap, Breather

Cap, Breather

04

Gear Set, Final

Gear Set, Final

05

Case Set, Final

Case Set, Final

06

Cover, Gear Case

Cover, Gear Case

07

Plate, Dust Guard

Plate, Dust Guard

08

Обойма подшипника

Обойма подшипника

09

Lock A

Lock A

10

Lock B

Lock B

11

Joint, Pinion

Joint, Pinion

12

Holder, O-ring

Holder, O-ring

13

Штифт

Штифт

14

Shim A (0.10)

Shim A (0.10)

14

Прокладка регулировочная B (0,15)

Прокладка регулировочная B (0,15)

15

Shim A (1.32)

Shim A (1.32)

15

Shim B (1.38)

Shim B (1.38)

15

Shim C (1.44)

Shim C (1.44)

15

Shim D (1.50)

Shim D (1.50)

15

Shim E (1.56)

Shim E (1.56)

15

Shim F (1.62)

Shim F (1.62)

15

Shim G (1.68)

Shim G (1.68)

16

Washer (35x40)

Washer (35x40)

17

Spacer A (1.82)

Spacer A (1.82)

17

Spacer B (1.88)

Spacer B (1.88)

17

Spacer C (1.94)

Spacer C (1.94)

17

Spacer D (2.00)

Spacer D (2.00)

17

Spacer E (2.06)

Spacer E (2.06)

17

Spacer F (2.12)

Spacer F (2.12)

17

Spacer G (2.18)

Spacer G (2.18)

17

Spacer H (2.24)

Spacer H (2.24)

17

Spacer I (2.30)

Spacer I (2.30)

18

Collar B, Rr.

Collar B, Rr.

19

Болт (6x12) (ct200)

Болт (6x12) (ct200)

20

Bolt, Plug (14mm)

Bolt, Plug (14mm)

21

Bolt, Flange (8x27)

Bolt, Flange (8x27)

22

Болт (10x35)

Болт (10x35)

23

Гайка (18mm)

Гайка (18mm)

24

Гайка (16MM)

Гайка (16MM)

25

Bearing (65x100x11)

Bearing (65x100x11)

26

Bearing (35x62x18)

Bearing (35x62x18)

27

Bearing (qj3/28v1)

Bearing (qj3/28v1)

28

Oil Seal (35x54x8)

Oil Seal (35x54x8)

29

Oil Seal (39x56x7)

Oil Seal (39x56x7)

30

Oil Seal (65x85x7)

Oil Seal (65x85x7)

31

Колечко (30.8mm)

Колечко (30.8mm)

32

O-ring (39.5x2.4)

O-ring (39.5x2.4)

33

O-ring (64.5x3.5)

O-ring (64.5x3.5)

34

Болт (6X12)

Болт (6X12)

35

Bolt, Stud (10x32)

Bolt, Stud (10x32)

36

Шайба (14mm)

Шайба (14mm)
