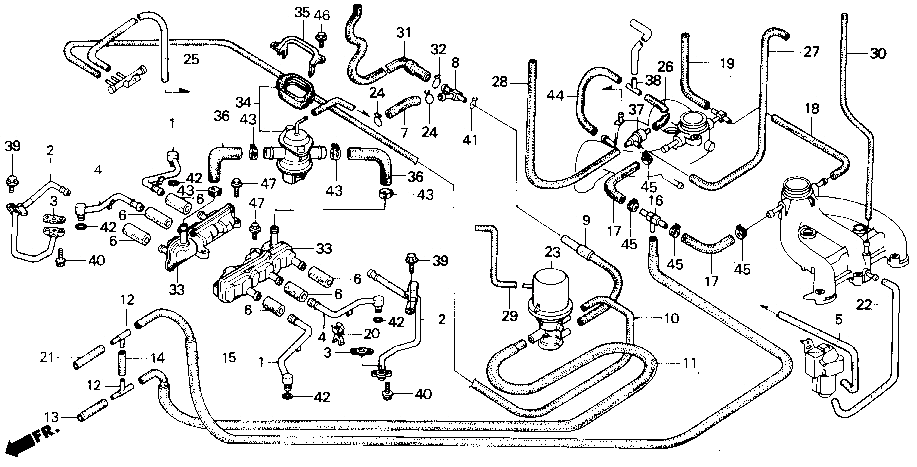

Tubing (2) 88

Honda GL1500
Honda
#oem кодцена
01
17010-MT2-305
Pipe A, Air Feed
02
17140-MN5-000
Pipe B, Air Feed
03
17142-MN5-000
Gskt, Air Feed Pipe
04
17020-MT2-305
Pipe C, Air Feed
05
17160-MN5-010
Tube, Pressure Boost
06
17161-MN5-010
Hose, Air Feed
07
17162-MN5-000
Шланг
08
17163-MN5-000
Joint B (three-way)
09
17164-MN5-000
Шланг
10
17165-MN5-000
Tube, Pressure Boost
11
17166-MN5-010
Tube, Air In.
12
17167-MN5-000
Joint (three-way)
13
17168-MN5-000
Tube, Air In.
14
17169-MN5-000
Tube, Air In.
15
17170-MN5-010
Tube, Air In.
16
17171-MN5-003
Клапан
17
17172-MN5-000
Tube G, Air In.
18
17173-MN5-000
Tube, Pressure Boost
19
17175-MN5-000
Tube, Pressure Boost
20
17176-MN5-000
Clamp J, Hose
21
17177-MN5-000
Tube, Air In.
22
17178-MN5-000
Tube, Pressure Boost
23
17340-MN5-003
Valve, Shot Air
24
17369-KB4-670
Зажим
25
17451-MN5-010
Tube (3.5x95)
26
17452-MN5-010
Tube (3.5mm)
26
17452-MN5-740
Tube (3.5mm)
27
17453-MN5-000
Tube (3.5mm)
28
17454-MN5-000
Tube (3.5x270)
29
17457-MN5-000
Tube (3.5mm)
30
17458-MN5-000
Tube (3.5x195)
31
17472-MN5-010
Tube (14mm)
32
17724-102-700
Зажим
33
18610-MN5-004
Case, Reed Valve
34
18650-MN5-024
Клапан
35
18652-MN5-000
Опора
36
18654-MN5-000
Hose, Air In.
37
36627-MN5-003
Клапан
38
36010-PA6-004
Наконечник
39
90016-MN5-000
Болт (6x14)
40
90040-MN5-000
Болт (6x18)
41
90654-MK3-780
Clip, Tube (b14)
42
91305-422-000
Кольцо (9.8x2.4)
43
91417-SZ3-003
Clamp (d20)
44
95001-35003-50M
Bulk Hose (3.5x3000)
45
95002-41200-08
Clamp, Tube (d12)
46
95701-06014-08
Болт (6x14)
47
95701-06025-08
Болт (6x25)
