A/i rear trunk 86-87 Оригинальные запчасти для мотоциклов Honda GL1200I (1987)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

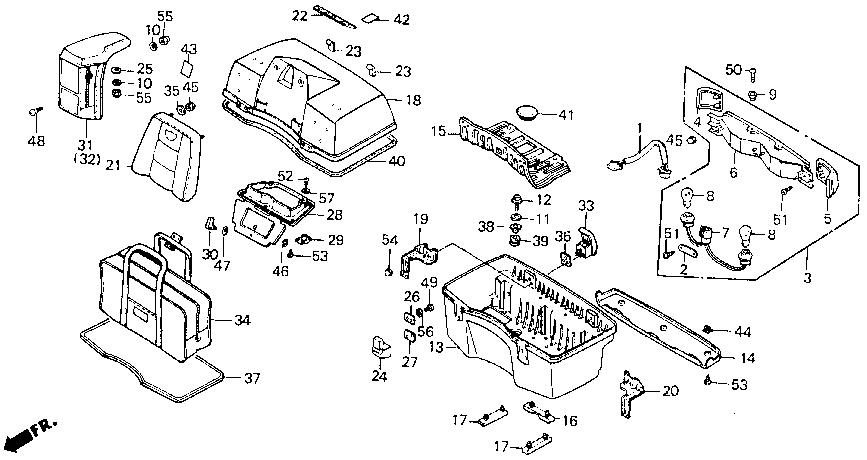

A/i rear trunk 86-87

Honda GL1200I

A/i rear trunk 86-87

#

oem код

название

цена

01

Sub-wire

Sub-wire

02

Опора

Опора

03

Taillight, Trunk

Taillight, Trunk

04

Reflector, Trunk

Reflector, Trunk

05

Reflector, Trunk

Reflector, Trunk

06

Taillight Sub-assy.

Taillight Sub-assy.

07

Патрон, Задний фонарь

Патрон, Задний фонарь

08

Bulb (12v 27/7w)

Bulb (12v 27/7w)

09

Collar, Fender Cover

Collar, Fender Cover

11

Шайба (6мм)

Шайба (6мм)

12

Болт (6х32)

Болт (6х32)

13

81111-MG9-770ZW

Trunk *yr143m* (pearly Beige Metallic)

Trunk *yr143m* (pearly Beige Metallic)

13

81111-MG9-770ZY

Trunk *nh178m* (amethyst Gray Metallic)

Trunk *nh178m* (amethyst Gray Metallic)

14

81112-MG9-770ZT

Cvr, Trunk *yr143m* (pearly Beige Metallic)

Cvr, Trunk *yr143m* (pearly Beige Metallic)

14

81112-MG9-770ZW

Cvr, Trunk *nh178m* (amethyst Gray Metallic)

Cvr, Trunk *nh178m* (amethyst Gray Metallic)

15

Stiffener, Trunk

Stiffener, Trunk

16

Резинка

Резинка

17

Rubber, Rr. Trunk

Rubber, Rr. Trunk

18

81121-ML8-600ZA

Trunk *yr143m* (pearly Beige Metallic)

Trunk *yr143m* (pearly Beige Metallic)

18

81121-ML8-600ZB

Trunk *nh178m* (amethyst Gray Metallic)

Trunk *nh178m* (amethyst Gray Metallic)

19

Stiffener, R.

Stiffener, R.

20

Stiffener, L.

Stiffener, L.

21

81125-ML8-600ZA

Seat *r58l* (type1) (romany Red)

Seat *r58l* (type1) (romany Red)

22

Emb, Trunk (upper)

Emb, Trunk (upper)

23

Hook, Trunk Lock

Hook, Trunk Lock

24

Hinge, Trunk

Hinge, Trunk

26

Washer, Hinge

Washer, Hinge

27

Rubber, Hinge

Rubber, Hinge

33

Lock Assy., Trunk

Lock Assy., Trunk

34

Bag, Trunk (inner)

Bag, Trunk (inner)

35

Опора

Опора

36

Plate, Lock Setting

Plate, Lock Setting

37

Floor Mat, Trunk

Floor Mat, Trunk

38

Манжета

Манжета

39

Затычка

Затычка

40

Rubber, Trunk Seal

Rubber, Trunk Seal

42

Лейбл

Лейбл

44

Grommet, Screw (4mm)

Grommet, Screw (4mm)

45

Гайка

Гайка

49

Винт (5x12)

Винт (5x12)

50

Винт (6x16)

Винт (6x16)

51

Винт (4x12)

Винт (4x12)

53

Винт (4x10)

Винт (4x10)

54

Nut, Cap (4mm)

Nut, Cap (4mm)

56

Шайба (5MM)

Шайба (5MM)
