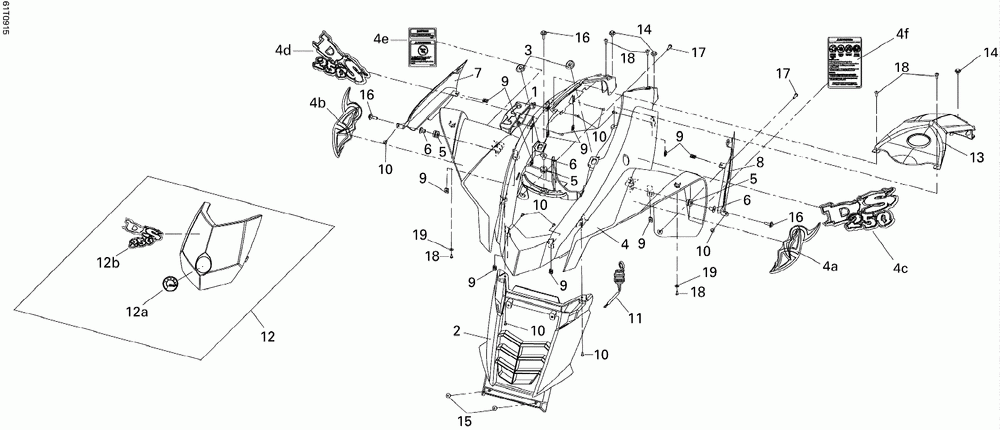

Переднее крыло

Can-Am (Bombardier) DS 250 NA, CE & INT
Can-Am (Bombardier)
#oem кодцена
1
S46220RCA000
Shift Lever Cover
2
S50611RCA000
Radiator Grille
3
S61105RCA000
Gromet
4
S6110GRCA900
Front Fender White (europe )
4
S6110GRCC900
Front Fender White (international )
4
S6110GRCA700
Front Fender Yellow (north America, Yellow Model )
4a
S87134RCA000
Lh Front Decal A (north America, Yellow Model )
4a
S87134RCA900
Lh Front Decal A (white Model )
4b
S87135RCA000
Rh Front Decal B (north America, Yellow Model )
4b
S87135RCA900
Rh Front Decal A (white Model )
4c
S87136RCA700
Lh Front Decal C Ds 250 (north America, Yellow Model )
4c
S87136RCA900
Lh Front Decal B (white Model )
4d
S87137RCA700
Rh Front Decal D Ds 250 (north America, Yellow Model )
4d
S87137RCA900
Rh Front Decal B (white Model )
4e
S8750ARCA000
Warning Label (north America, Yellow Model )
4e
S8750ARCA000
Warning Label (white Model )
4f
S87501RCA000
Warning Label A (north America, Yellow Model )
4f
S87501RCA900
Warning Label A (white Model )
4g
S87138RCA900
Lh Front Decal C (not Shown, White Model )
4h
S87139RCA900
Rh Front Decal C (not Shown, White Model )
5
S80103X01000
Washer Rubber
6
S80104X01000
Fender Collar
7
S83520RCA000
Fr.rh.side Fender
8
S83620RCA000
Fr.lh.side Fender
9
S90302V02000
Clip Nut
10
S9390332280
Саморез
11
S38600RA1000
Dc Power Outlet
12
S6430GRCA900
Radiator Cover Assy. (white Model )
12a
S87500RCA000
Логотип Брп
12b
S87130RCA900
Decal Ds250
13
S43020RCA000
Fuel Tank Cover
14
S934040601407
Washer Bolt
15
S90164RCA000
Винт
16
S934040602507
Washer Bolt
17
S9390344380
Tapping Screw (europe, North America )
17
S90119G03900
Screw Washer (international )
18
S9390345380
Taping Screw (europe, North America )
18
S9390335280
Tapping Screw (international )
19
S9411105800
Пружинная шайба
