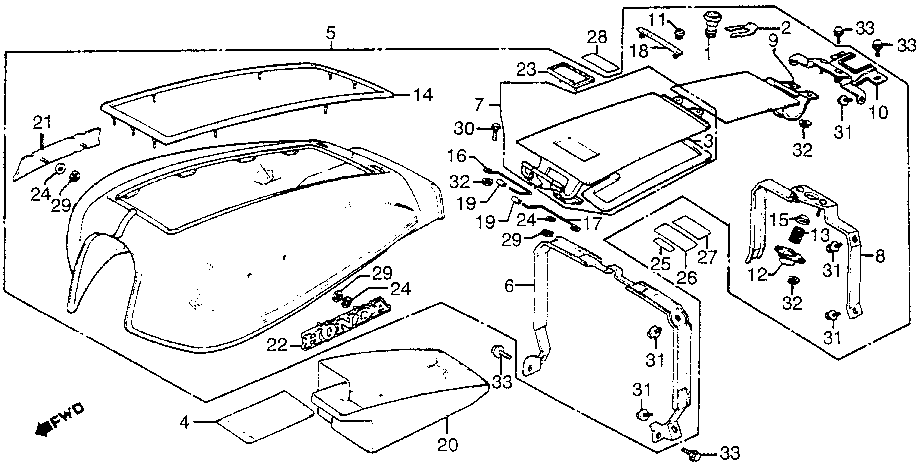

Fuel tank cover

Honda GL1100A

Fuel tank cover

#

oem код

название

цена

01

Lock, Filler Lid

Lock, Filler Lid

02

Пружина

Пружина

04

Чехол для сервисной книги

Чехол для сервисной книги

05

83100-MB9-950ZC

Cvr *yr116mu* (sorrel Brown Metallic-u)

Cvr *yr116mu* (sorrel Brown Metallic-u)

14

Weatherstrip

Weatherstrip

24

Резинка

Резинка

27

Наклейка

Наклейка

29

Nut, Speed (3mm)

Nut, Speed (3mm)

30

Болт (м6x16)

Болт (м6x16)

31

Bolt-washer (6x10)

Bolt-washer (6x10)

32

Гайка (6mm)

Гайка (6mm)

33

Болт (6X12)

Болт (6X12)

05

83100-MB9-950ZA

Cvr *nh125mu* (nimbus Gray Metallic)

Cvr *nh125mu* (nimbus Gray Metallic)

05

83100-MB9-950ZB

Cover Assy. *r114cu* (candy Wine Berry Red-u)

Cover Assy. *r114cu* (candy Wine Berry Red-u)

06

Frame A, Shelter

Frame A, Shelter

07

83115-MB9-950ZA

Cover *nh125mu* (nimbus Gray Metallic)

Cover *nh125mu* (nimbus Gray Metallic)

07

83115-MB9-950ZB

Cover *r114cu* (candy Wine Berry Red-u)

Cover *r114cu* (candy Wine Berry Red-u)

07

83115-MB9-950ZC

Cover *yr116mu* (sorrel Brown Metallic-u)

Cover *yr116mu* (sorrel Brown Metallic-u)

08

Frame B, Shelter

Frame B, Shelter

09

83117-MB9-950ZA

Lid *nh125mu* (nimbus Gray Metallic)

Lid *nh125mu* (nimbus Gray Metallic)

09

83117-MB9-950ZB

Lid *r114cu* (candy Wine Berry Red-u)

Lid *r114cu* (candy Wine Berry Red-u)

09

83117-MB9-950ZC

Lid *yr116mu* (sorrel Brown Metallic-u)

Lid *yr116mu* (sorrel Brown Metallic-u)

10

Frame C

Frame C

11

Опора

Опора

12

Holder, Spring

Holder, Spring

13

Spring, Shelter Lid

Spring, Shelter Lid

15

Cover, Spring

Cover, Spring

16

Spring A

Spring A

17

Spring B

Spring B

18

Опора

Опора

19

Ролик

Ролик

23

Emblem, Top Shelter

Emblem, Top Shelter

25

Label, Reserve Tank

Label, Reserve Tank

26

Наклейка

Наклейка

28

87560-181-760ZC

Mark *a73* (gold)

Mark *a73* (gold)
