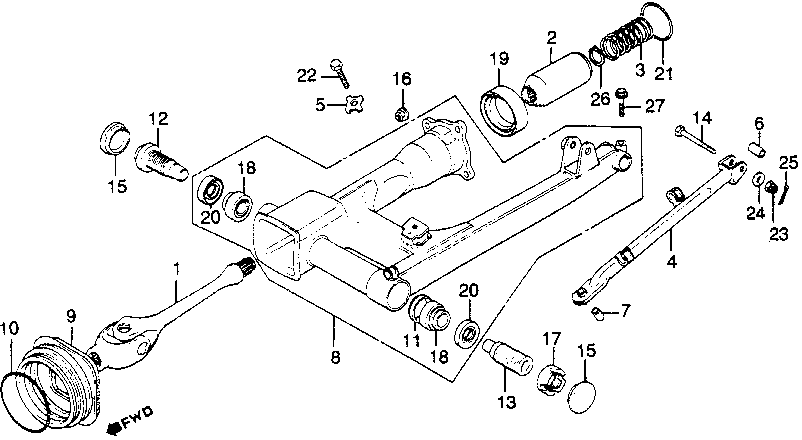

Swingarm @ drive shaft

Honda CB900C

Swingarm @ drive shaft

#

oem код

название

цена

15

Cap, Lock Nut

Cap, Lock Nut

16

Гайка(10mm)

Гайка(10mm)

17

Гайка

Гайка

18

Bearing (30203)

Bearing (30203)

22

Bolt, Hex. (8x28)

Bolt, Hex. (8x28)

23

Nut, Self-lock (8mm)

Nut, Self-lock (8mm)

24

Шайба (8MM)

Шайба (8MM)

25

Pin, Split (2.0x35)

Pin, Split (2.0x35)

25

Pin, Split (2.0x22)

Pin, Split (2.0x22)

25

Pin, Cotter (2.0x22)

Pin, Cotter (2.0x22)

26

Стопорное кольцо (20mm)

Стопорное кольцо (20mm)

27

Болт (8x32)

Болт (8x32)

01

Вал ведущий

Вал ведущий

02

Joint, Driveshaft

Joint, Driveshaft

03

Spring, Driveshaft

Spring, Driveshaft

04

Arm, Rr.

Arm, Rr.

05

Washer, Rr.

Washer, Rr.

06

Collar, Link

Collar, Link

07

Collar, Link

Collar, Link

08

52100-461-750ZA

Swingarm, Rr. *nh1* (black)

Swingarm, Rr. *nh1* (black)

09

Boot, Joint

Boot, Joint

10

Пружина задняя

Пружина задняя

11

Holder, Case

Holder, Case

12

Bolt, R. Swingarm

Bolt, R. Swingarm

13

Bolt, L. Rr.

Bolt, L. Rr.

14

Болт , задн.

Болт , задн.

19

Oil Seal (43x52x7)

Oil Seal (43x52x7)

20

Dust Seal (26x40x5)

Dust Seal (26x40x5)

21

O-ring (47x2.5)

O-ring (47x2.5)
