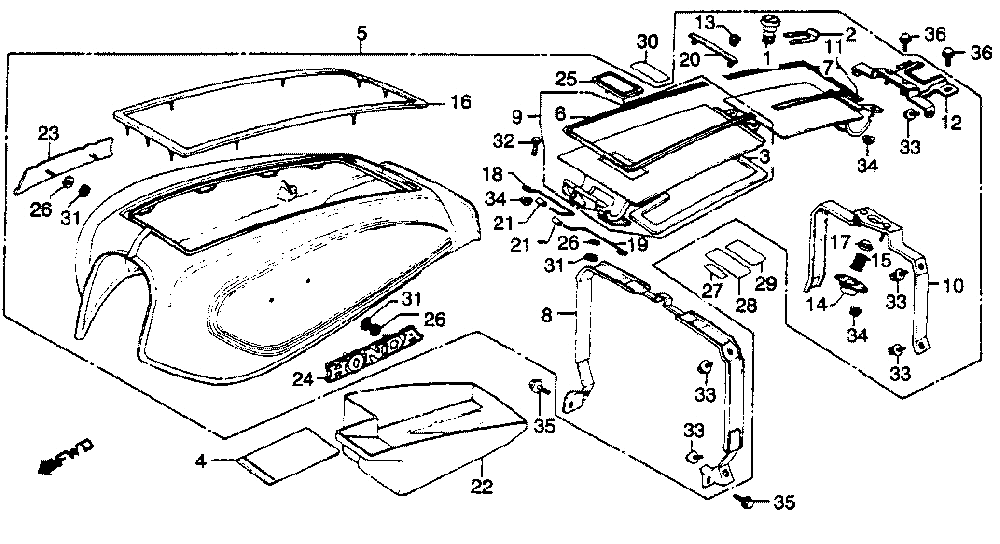

Shelter

Honda GL1100I
Honda
#oem кодцена
01
37220-439-007
Lock, Filler Lid
02
37222-463-000
Пружина
05
83100-MB9-770ZA
Shelter *b100mu* (cosmo Black Metallic)
05
83100-MB9-770ZD
Shelter Assy. *nh1* (black)
09
83115-MB9-000ZB
Shelter *r114cu* (candy Wine Berry Red-u)
29
87512-461-770
Наклейка
31
90313-567-000
Nut, Speed (3mm)
32
92101-06016-0G
Болт (м6x16)
33
93401-06010-08
Bolt-washer (6x10)
34
94050-06080
Гайка (6mm)
35
95701-06012-07
Болт (6X12)
03
50432-463-300
Seal, Tool Tray
04
77251-342-000
Чехол для сервисной книги
05
83100-MB9-770ZB
Shelter *r114cu* (candy Wine Berry Red-u)
06
83107-MB9-300ZA
Stripe (type1)
06
83107-MB9-300ZB
Stripe (type2)
07
83109-MB9-300ZA
Stripe (type1)
07
83109-MB9-300ZB
Stripe (type2)
08
83111-463-000
Frame A, Shelter
09
83115-MB9-000ZA
Shelter *b100mu* (cosmo Black Metallic)
09
83115-MB9-000ZD
Shelter, Top *nh1* (black)
10
83116-463-000
Frame B, Shelter
11
83117-MB9-000ZA
Lid *b100mu* (cosmo Black Metallic)
11
83117-MB9-000ZB
Lid *r114cu* (candy Wine Berry Red-u)
11
83117-MB9-000ZD
Lid, Shelter *nh1* (black)
12
83118-463-000
Frame C
13
83121-463-000
Опора
14
83123-463-000
Holder, Spring
15
83124-463-000
Spring, Shelter Lid
16
83127-463-000
Weatherstrip
17
83135-463-000
Cover, Spring
18
83137-463-000
Spring A
19
83138-463-000
Spring B
20
83139-463-000
Опора
21
83140-463-000
Ролик
22
83501-463-000
Tray, Tool
25
87123-MB9-000
Emblem, Top Shelter
26
87411-538-910
Резинка
27
87507-371-671
Label, Reserve Tank
28
87508-415-670
Наклейка
30
87560-181-760ZC
Mark *a73* (gold)
