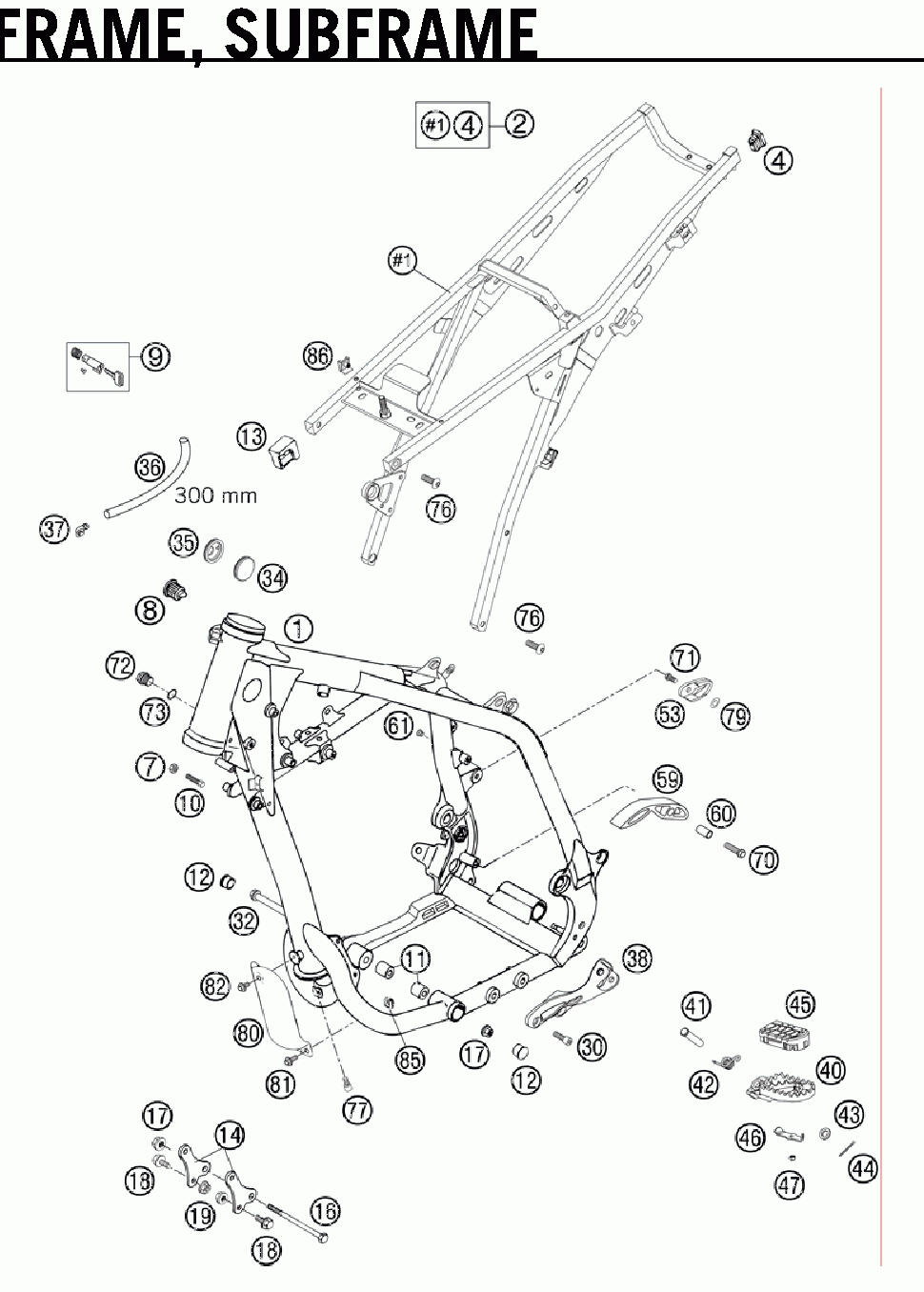

Frame, subframe ref# 1 - 61

KTM 625 SMC CHASSIS USA 06
KTM
#oem кодцена
1
5860300104430
Frame Cpl. "eg05" Smc 05
2
5860300204430
Subframe Cpl. "p5" 05
4
58303002090
Plug 12 X 17 Mm
7
0934080003
Hexagon Nut Din0934-m 8
8
42007049000
Plastic Cap
9
71003007000
Steering Head Lock Cpl. Zadi
10
59001037000
Special Screw M8x26 Ws=10
11
58003012000
Spacer Roller 10, 3x20x22
12
71001012100
Pvc Cap D=22mm
13
58307015000
Tank Support '93
14
58303055000
Engine Support Agw '94
16
58403013000
Engine Brac.screw M10x110 Ws13
17
54630044000
Collar Nut M10 Ws=13
18
49109481052
Hh Collar Screw M 8x16 Ws=13
19
54310086200
Self Locking Nut M8 10.9
30
0912100250
Ah Screw Din6912-m10x25, 10.9, L
32
58403014000
Engine Brac.screw M10x160 Ws13
34
54606004000
Plug 37mm
35
54606004100
Plug 37mm Perforated 04
37
50303089000
Angle Piece '97
38*
58403038100
Footrest Bracket Left Alu 05
40
59003040250
Foot Peg L/s Silver 02
40
59003041250
Foot Peg R/s Silver 02
41
54803044000
Bolt For Foot Ped 03
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
45
60003040010
Footrest Rubber Front L/s 03
45
60003041010
Footrest Rubber Front R/s 03
46
60003044010
Closing Panel Front L/s R/s 03
47
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
53
58604069000
Chain Sliding Piece 05
59
51103053000
Chain Sliding Piece Below '97
60
51103053051
Bushing 8, 2x10x20
61
54403135000
Plastic Cap Sfl10
