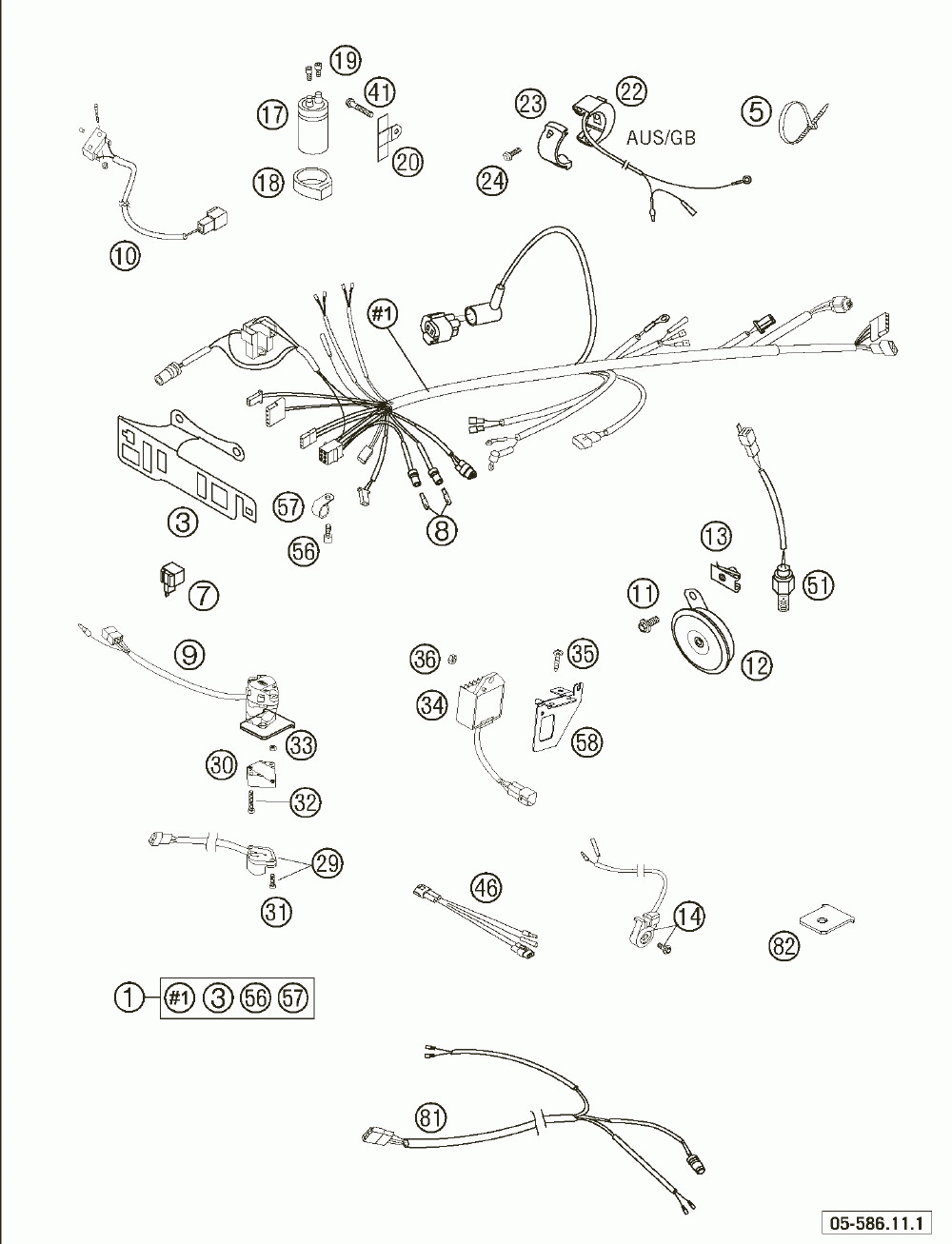

Wiring harness 660/2005

KTM 625 SMC
KTM
#oem кодцена
3
59011083000
Support Bracket Black 2001
7
44611207200
Flasher Unit 97
8
49111425200
Bulb 12v 2, 3w (w2x4, 6d)
9
50311070000
H.light Switch Cev 2/4takt '98
10
58411050000
Brake Light Switch Front Sm 03
11
0014060153
Hh Collar Screw M 6x15 Ws=8
12
50311060100
Dc Horn L.e.b. 03
13
54603048100
Range Change Metal Nut M6
14
58411045000
Side Stand Switch Cpl. '97
17
49111435100
Condensator 25v, 10.000 Mf
18
54511048000
Capacitor Bracket
19
0912050083
Ah Screw Din 912 M 5x8
20
54611448000
Bracket For Capacitor
22
50311074000
Engine Stop Switch Cev
23
50311074050
Clamp Engine Stop Switch
24
0985040203
Flat Head Screw Din7985-m 4x20
29
50311029000
Flasher Switch Cev '98
30
13011070060
Adapter For Flasher Switch '98
31
0985040163
Flat Head Screw Din7985-m 4x16
32
0084040223
Cyl.head Screw Din0084-m 4x22a
33
0934040003
Hexagon Nut Din0934-m 4
34
80011034000
Voltage Regulator 04
35
0016050121
Screw For Plastic 50x12
36
56509064100
Self Locking Nut M6 10.9
41
0015060303
Hh Collar Screw M 6x30 Sw=8
51
50311051100
Brake Light Switch Rear '98
57
57013070100
Pvc-clamp 7, 9 Mm Heyco 3355
81
58611076000
Wiring Harness Rear 05
