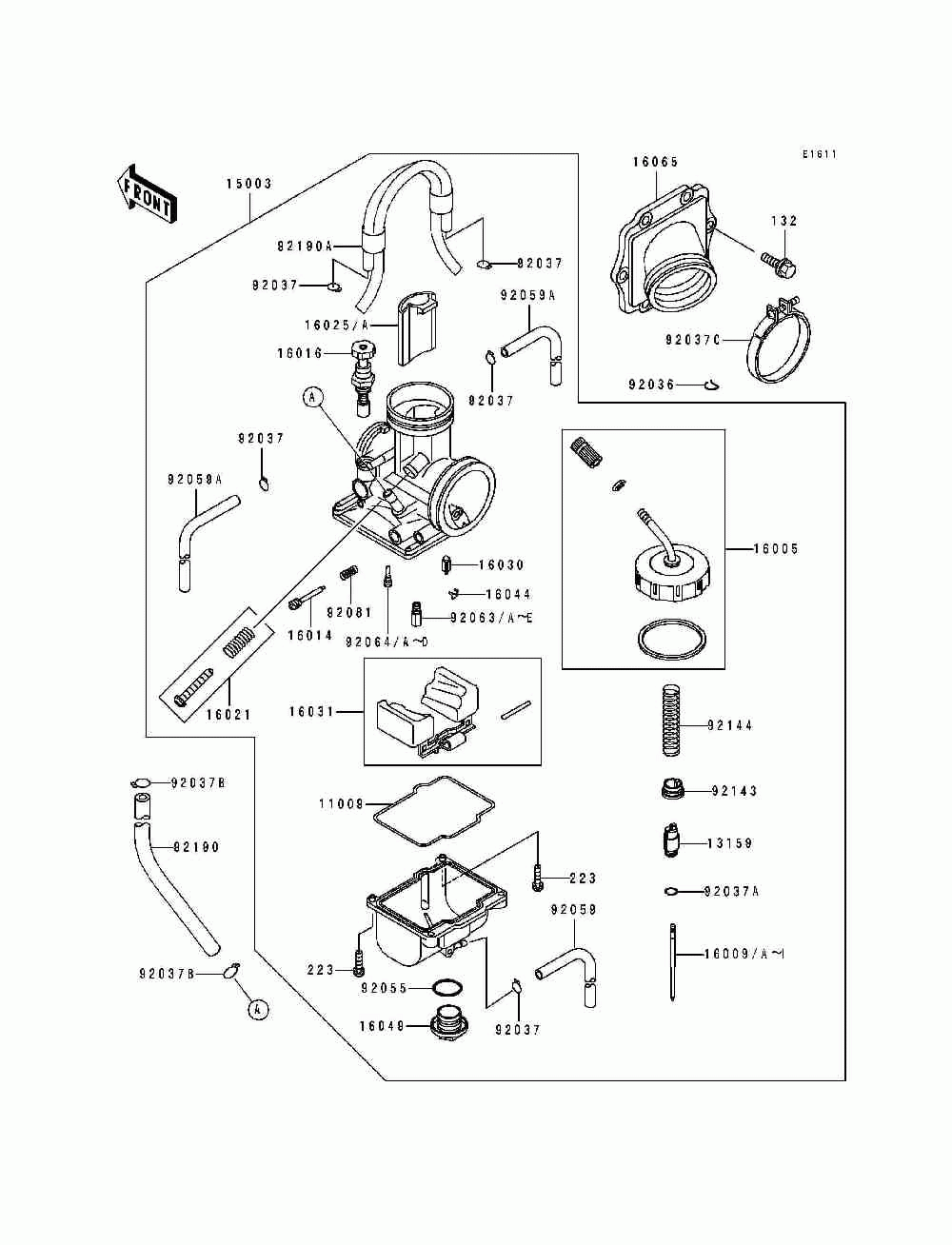

Карбюратор

Kawasaki KX250 (KX250-K4)
Kawasaki
#oem кодцена
11009
11009-1716
Прокладка
13159
13159-1063
Connector, Throttle Ca
15003
15003-1279
Carburetor-assy
16005
16005-1071
Top-chamber
16009
16009-1914
Needle-jet (option)
16009A
16009-1915
Needle-jet (option)
16009B
16009-1916
Needle-jet, N3wf
16009C
16009-1917
Needle-jet (option)
16009D
16009-1918
Needle-jet (option)
16009E
16009-1919
Needle-jet (option)
16009F
16009-1920
Needle-jet (option)
16009G
16009-1921
Needle-jet (option)
16009H
16009-1922
Needle-jet (option)
16009I
16009-1923
Needle-jet (option)
16014
16014-1058
Screw-pilot Air
16016
16016-1085
Плунжер
16021
16021-1198
Screw-throttle Stop
16025
16025-1216
Valve-throttle, #7
16025A
16025-1217
Valve-throttle, #8 (option)
16030
16030-1057
Игла запорная
16031
16031-1084
Поплавок
16044
16044-007
Clip, Float Valve
16049
16049-1051
Cover-main Jet
16065
16065-1334
Holder-carburetor
92036
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
92037-1396
Зажим
92037A
92037-1401
Clamp, Jet Needle
92037B
92037-147
Зажим
92037C
92037-1523
Зажим
92055
92055-1167
Ring-o, Main Jet Cover
92059
92059-1899
Tube, 3.5x6.5x390
132
132BA0620
Болт М6
223
223AB0416
Screw-pan-ws-cros
92059A
92059-1898
Tube, 4x7x480
92063
92063-1368
Jet-main, #160 (option)
92063A
92063-1369
Jet-main, #162 (option)
92063B
92063-1370
Jet-main, #165
92063C
92063-1371
Jet-main (option)
92063D
92063-1372
Jet-main (option)
92063E
92063-1374
Jet-main (option)
92064
92064-1140
Jet-pilot, #40 (option)
92064A
92064-1141
Jet-pilot, #42 (option)
92064B
92064-1142
Jet-pilot
92064C
92064-1143
Jet-pilot, #48 (option)
92064D
92064-1144
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92143
92143-1201
Collar, Throttle Valve
92144
92144-1305
Spring, Throttle Valve
92190
92190-1528
Патрубок
92190A
92190-1609
Tube, 4x7x580
