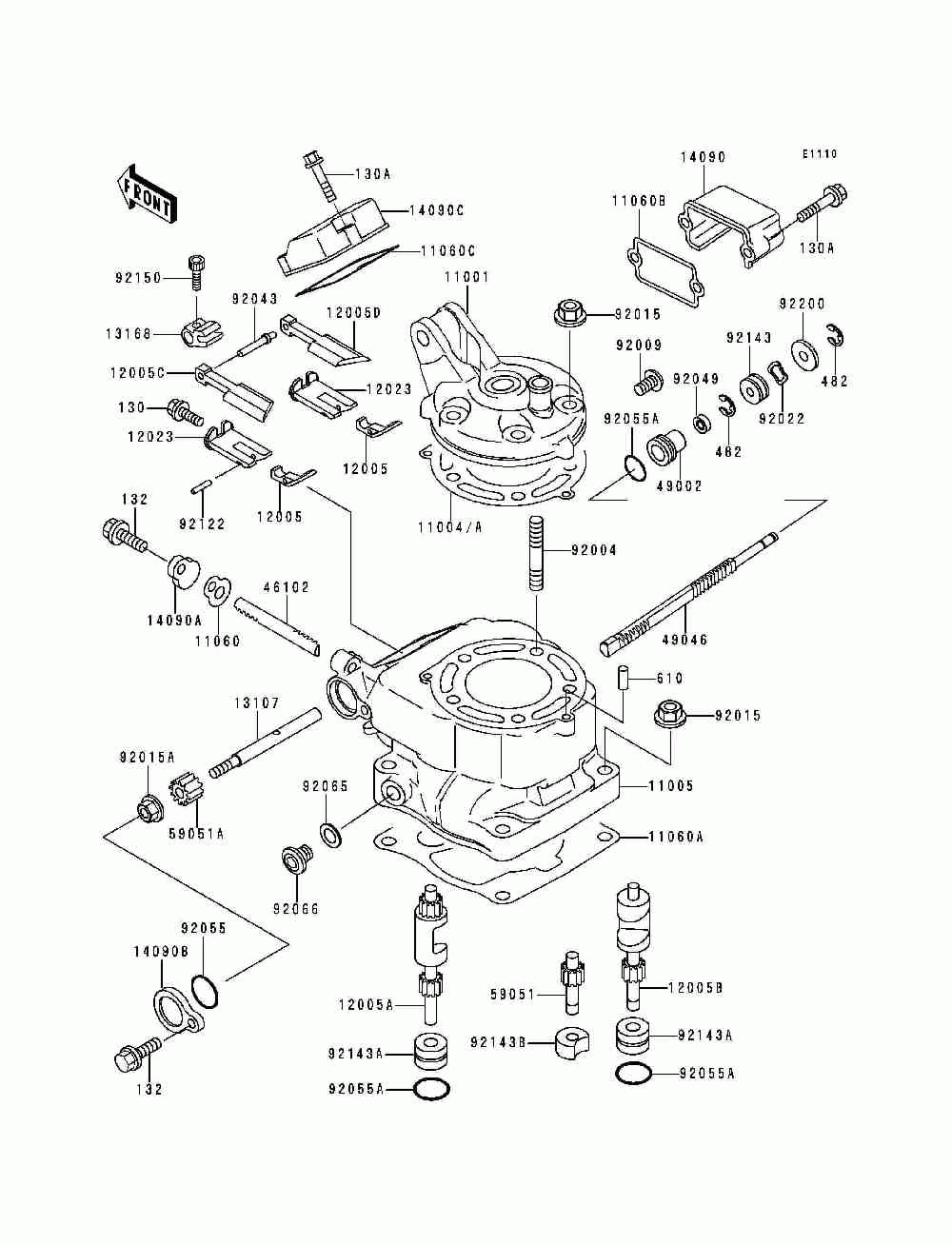

Цилиндр и головка цилиндров

Kawasaki KX125 (KX125-K3)
Kawasaki
#oem кодцена
11001
11001-1435
Головка блока цилиндров
11004
11004-1252
Gasket-head, T=0.46 (option)
11004A
11004-1300
Gasket-head, T=0.26
11005
11005-1840
Cylinder-engine
11060
11060-1346
Gasket, Governor Rod
11060A
11060-1647
Gasket, Cylinder Base
11060B
11060-1686
Прокладка
11060C
11060-1690
Gasket, Main Cover
12005
12005-1209
Valve-exhaust, Main
12005A
12005-1217
Valve-exhaust, Lh
12005B
12005-1218
Valve-exhaust, Rh
12005C
12005-1221
Valve-exhaust, Main, Lh
12005D
12005-1222
Valve-exhaust, Main, Rh
12023
12023-1073
Holder-valve, Main
13107
13107-1405
Shaft, Valve
13168
13168-1557
Lever, Main Valve
14090
14090-1130
Cover, Governor
14090A
14090-1132
Cover, Governor Rod
14090B
14090-1133
Cover, Main Valve
14090C
14090-1134
Cover, Main Valve
46102
46102-1319
Rod, Main Valve
49002
49002-1100
Guide-valve
49046
49046-1071
Rod-governor
59051
59051-1249
Gear-spur, Idle
59051A
59051-1252
Gear-spur, Main Valve
92004
92004-1060
Stud, 8x28.5
92009
92009-1502
Винт
92015
92015-1143
Nut-8mm
92015A
92015-1572
Nut, 6mm
92022
92022-1978
Шайба
92043
92043-1459
Штифт
92049
92049-1206
Seal-oil, Rso-5.5 11 4
92055
92055-1258
Ring-o, Id=16.8
92055A
92055-1399
Ring-o, 14.5x1.5
92065
92065-073
Gasket-drain Plug
92066
92066-1222
Plug, 12x10
92122
92122-1126
Roller, 3x15.8
92143
92143-1637
Collar, Rod
92143A
92143-1797
Манжета
130
130BA0508
Болт
130A
130BA0525
Bolt-flanged, 5x25
132
132BA0616
Болт М6
482
482K4000
Circlip Seld Bem Fit
610
610A0408
Pin Dowel 4x8
92143B
92143-1798
Манжета
92150
92150-1844
Bolt, Socket, 4x10
92200
92200-1129
Washer, 5.6x18x1.2
