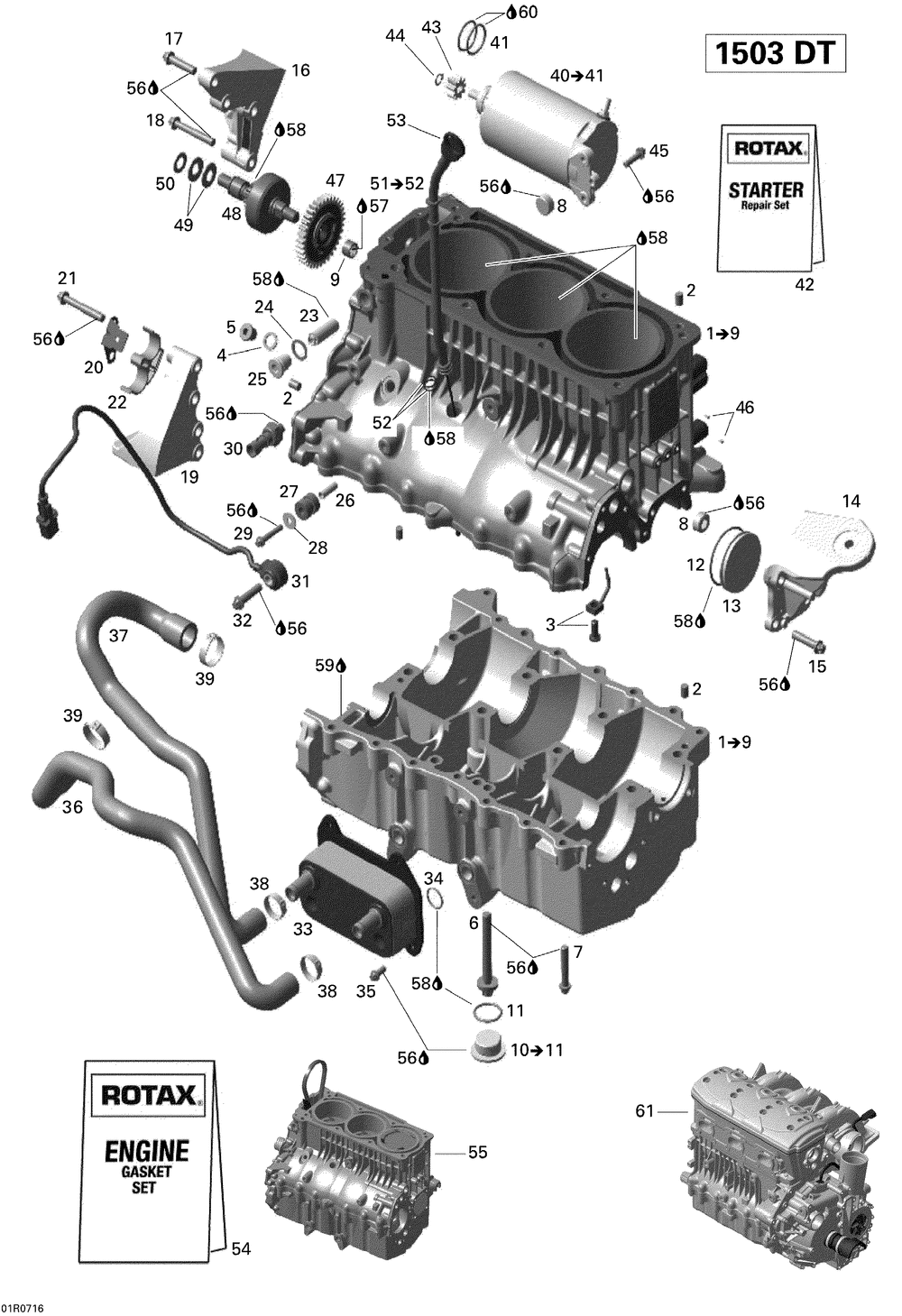

Блок двигателя

Sea-Doo (Bombardier) GTI 4-TEC SE, 1503 DT
Sea-Doo (Bombardier)
#oem кодцена
1
420890998
Carter-cyl. *cylinder Block W Sleeves (includes 1 To 9 )
2
420632010
Goupille *pin-center ( )
3
420956776
Obturateur *oil Spray Nozzle ( )
4
420250015
Rondelle Alumi.*aluminum Washer ( )
5
420841923
Vis Obturation *plug Screw M12 ( )
6
420641120
Torx-reduced Shaft Screw M10 X 82 ( )
7
420641203
Vis Hexalob.epa*torx Flange Screw ( )
8
420641317
Vis Obturation *plug Screw ( )
9
420232480
Roulement Aigui*bushing-needle ( )
10
420641171
Винт м30
11
420631300
Кольцо
12
420430405
Кольцо
13
420660110
Couvercle Obtur*plug Cover ( )
14
420811791
Supp.mot.avant *engine Bracket Front ( )
15
420641188
Vis Hexalob.epa*torx Flange Screw ( )
16
420811785
Supp.mot.echapp*engine Bracket Pto Exh. ( )
18
420641213
Vis Hexalob.epa*torx Flange Screw ( )
19
420811780
Supp.mot.admiss*engine Bracket Pto Inl. ( )
20
420851740
Plaque Retenue *retaining Plate ( )
22
420660290
Support Boyau *hose Bracket ( )
23
415129408
Tendeur Chaine *chain Tensioner ( )
23
420236259
Tendeur Chaine *chain Tensioner W Screw ( )
24
420430623
Anneau Etanche*gasket Ring ( )
26
420847971
Entretoise *spacer ( )
27
420660090
Support Caout. *rubber Bracket ( )
28
420827968
Rondelle Plate *washer M6 ( )
29
420641258
Screw Torx Flange M6 X 35 ( )
30
420856532
Inter.press.hui*oil Pressure Switch ( )
31
270000484
Capteur Clique.*sensor-noise ( )
33
420888852
Radiateur D Hui*oil Radiator ( )
34
420250055
Кольцо
35
420641048
Vis Hexalob.epa*torx Flange Screw ( )
36
420922798
Boyau Forme *formed Hose ( )
37
420922792
Formed Hose ( )
38
420851663
Clamp ( )
39
420851673
Bride Serrage *gear Clamp ( )
40
420888996
Electric Starter Assy (includes 40 To 41 )
41
420631310
Кольцо
42
420664710
Ens.balais Dem.*carbon Brush Set ( )
43
420834522
Engrenage 9d. *starter Gear 9 T ( )
44
420845600
Anneau Retenue *ring-retaining ( )
45
420641238
Vis Hexalob.epa*screw-torx Flange ( )
46
420249073
Goupille Cannel*grooved Pin ( )
47
420889872
Friction Clutch ( )
48
420890639
Lanceur Demar. *bendix Starter ( )
49
420238300
Rondelle Ressor*spring-disk ( )
50
420827261
Rondelle Butee *washer-thrust ( )
51
420956944
Boyau Niv.huile*oil Level Tube (includes 51 To 52 )
52
420950810
Кольцо
53
420956932
Jauge Niv.huile*oil Level Gauge ( )
54
420889773
Ens.joint Etan.*engine Gasket Set ( )
55
420150311
Ens.carter-cyl.*short Block 1503 ( )
56
293800060
Loctite 243
57
413707000
Dow Corning 111*dow Corning 111 ( )
59
293800081
Loctite 5910
60
293550021
Graisse Isoflex*grease-isoflex ( )
61
420150347
Moteur 1503dt Semi*block-long 1503 Dt ( )
