Передний капот Оригинальные запчасти для гидроциклов Sea-Doo (Bombardier) GTX LTD 1503 BVIC (2007)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

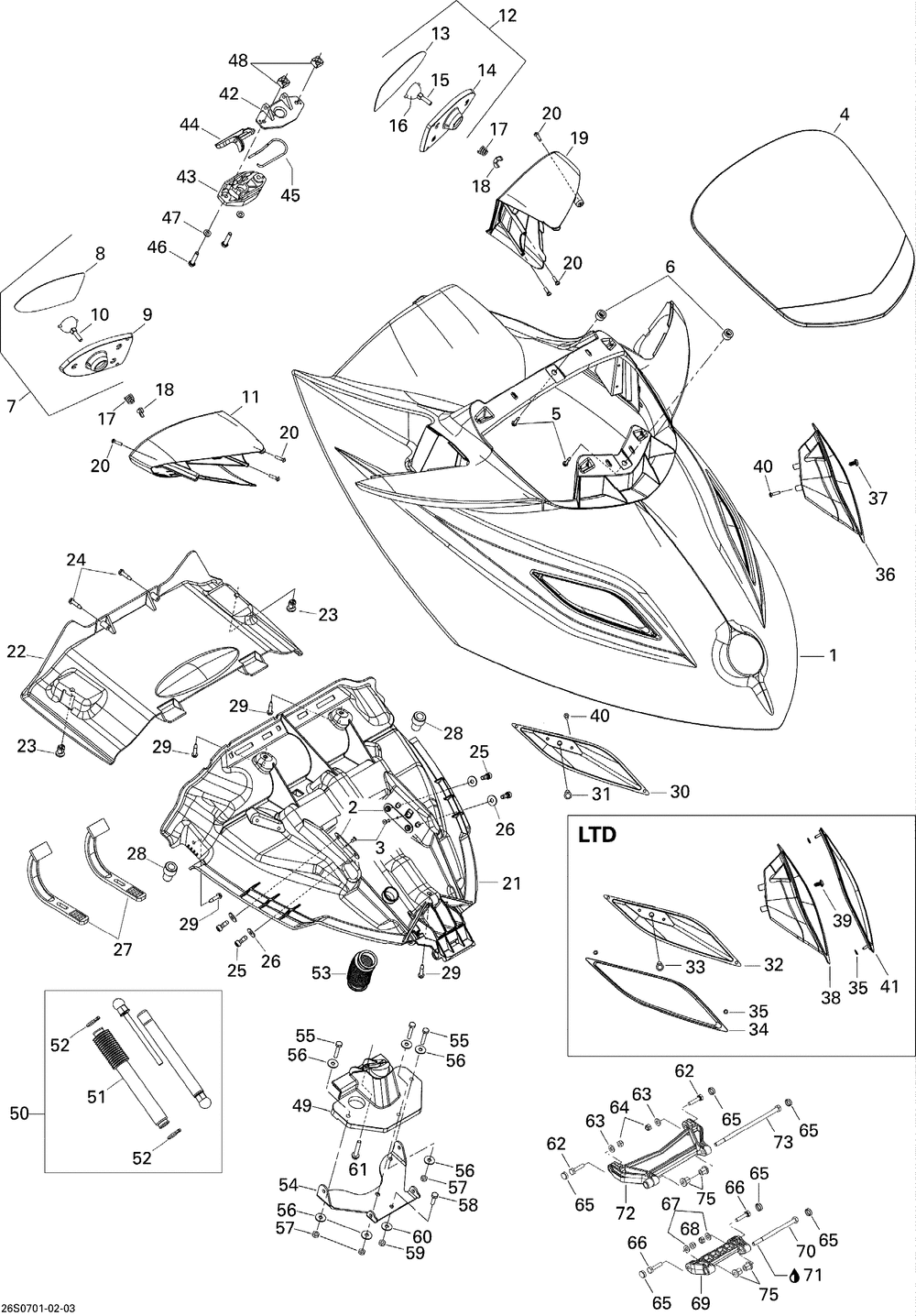

Передний капот

Sea-Doo (Bombardier) GTX LTD 1503 BVIC

Передний капот

#

oem код

название

цена

1

Couv.bag.sub. *storage Cover (includes 1 To 3 )

Couv.bag.sub. *storage Cover (includes 1 To 3 )

2

Plaque Retenu *plate ( )

Plaque Retenu *plate ( )

3

Rivet-pop 1/8 *rivet-pop 1/8 ( )

Rivet-pop 1/8 *rivet-pop 1/8 ( )

4

Defl Noir Ass *black Deflass ( )

Defl Noir Ass *black Deflass ( )

5

Screw-plastite Hex.unsl ( )

Screw-plastite Hex.unsl ( )

6

Entretoise *spacer ( )

Entretoise *spacer ( )

7

Miroir Droit *mirror-rh. ( )

Miroir Droit *mirror-rh. ( )

8

Miroir Droit*mirror Assy-rh. ( )

Miroir Droit*mirror Assy-rh. ( )

9

Cadre Miroir *frame-mirror ( )

Cadre Miroir *frame-mirror ( )

10

Rotule Miroir *mirror Joint ( )

Rotule Miroir *mirror Joint ( )

11

Boitier Droit *rh. Housing ( )

Boitier Droit *rh. Housing ( )

12

Miroir Gauche *mirror-lh. ( )

Miroir Gauche *mirror-lh. ( )

13

Miroir Gau. Ass*ror Assy-lh. ( )

Miroir Gau. Ass*ror Assy-lh. ( )

16

Graisse Synth. *grease-synth. ( )

Graisse Synth. *grease-synth. ( )

17

Ressort Miroir *spring-mirror ( )

Ressort Miroir *spring-mirror ( )

18

Nut-wing Ansi B18.17 Type A ( )

Nut-wing Ansi B18.17 Type A ( )

19

Boitier Gauche *lh. Housing ( )

Boitier Gauche *lh. Housing ( )

20

Screw-pt.flange Pan Hdtorx.k40 X 16 ( )

Screw-pt.flange Pan Hdtorx.k40 X 16 ( )

21

Couv.bag.sub.as*cover-storage ( )

Couv.bag.sub.as*cover-storage ( )

22

Panneau D Acces*acces Board ( )

Panneau D Acces*acces Board ( )

23

Plastique Rivet Tuflok ( )

Plastique Rivet Tuflok ( )

24

Screw-plastite Hex.wr.hd.unsl ( )

Screw-plastite Hex.wr.hd.unsl ( )

25

Screw-socket Din.912a2 S.grip ( )

Screw-socket Din.912a2 S.grip ( )

26

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

27

Sangle *strap ( )

Sangle *strap ( )

28

Butte *rubber Buffer ( )

Butte *rubber Buffer ( )

32

Grille Droite *rh.grill ( )

Grille Droite *rh.grill ( )

33

Dard Noir *dart-black ( )

Dard Noir *dart-black ( )

34

Enjo.dr.ch. *right Cap.chr. ( )

Enjo.dr.ch. *right Cap.chr. ( )

35

Ecrou Pression *push-nut ( )

Ecrou Pression *push-nut ( )

42

Couv.loquet *cover-latch ( )

Couv.loquet *cover-latch ( )

43

Loquet Assemble*latch Ass Y ( )

Loquet Assemble*latch Ass Y ( )

44

Levier Loquet *lever-latch ( )

Levier Loquet *lever-latch ( )

45

Ressort Loquet *spring-latch ( )

Ressort Loquet *spring-latch ( )

46

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

47

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

48

Logement Ecrou *housing-nut ( )

Logement Ecrou *housing-nut ( )

49

Base D Amort. *cyl. Base ( )

Base D Amort. *cyl. Base ( )

50

Amortisseur *shock ( )

Amortisseur *shock ( )

51

Soufflet *bellow ( )

Soufflet *bellow ( )

52

Tie Rap 94mm *tie-rap 94mm ( )

Tie Rap 94mm *tie-rap 94mm ( )

53

Passe-fils *grommet ( )

Passe-fils *grommet ( )

54

Support Pivot *support-pivot ( )

Support Pivot *support-pivot ( )

55

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

57

Nut-stop Elastic Din.985 ( )

Nut-stop Elastic Din.985 ( )

58

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

61

Screw-plastite Hex.wr.hd.unsl ( )

Screw-plastite Hex.wr.hd.unsl ( )

62

Screw-hex.cap Special ( )

Screw-hex.cap Special ( )

65

Cap.press.noir *cap-snap Black ( )

Cap.press.noir *cap-snap Black ( )

69

Bras Avant *arm-front ( )

Bras Avant *arm-front ( )

70

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

71

Loctite 243

Loctite 243

72

Bras Arriere*arm-rear ( )

Bras Arriere*arm-rear ( )

73

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

74

Loctite 271 *loctite-271 ( )

Loctite 271 *loctite-271 ( )

75

Manchon *sleeve ( )

Manchon *sleeve ( )
