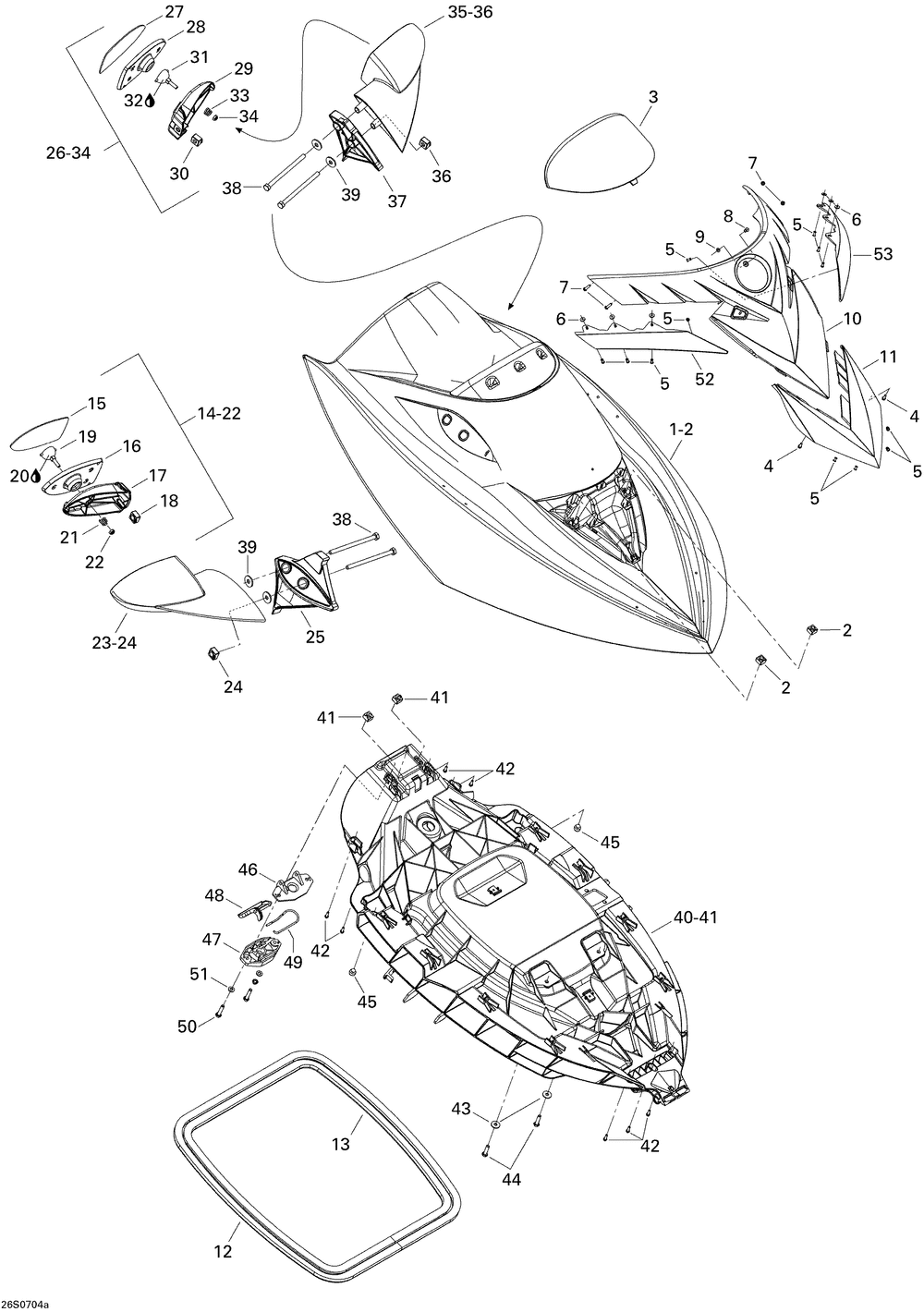

Передние отсеки для хранения

Sea-Doo (Bombardier) RXT 1503 BVIC, 2007
Sea-Doo (Bombardier)
#oem кодцена
1
269501572
Couvercle *lugage Cover (includes 1 To 2, Yellow/black )
1
269501573
Couvercle *lugage Cover (includes 1 To 2, Viper Red )
2
269501166
Logement Ecrou *housing-nut ( )
3
269501599
Deflecteur *deflector ( )
4
241141360
Screw-pt.hex.flange K40 X 13 ( )
5
293150001
Rivet-pop 1/8 *rivet-pop 1/8 ( )
6
293150007
Rondelle *washer ( )
8
293150029
Rivet-pop 5/32 *rivet-pop 5/32 ( )
9
234040600
Washer-flat Din.433a2 ( )
10
269501519
Facia *fascia ( )
11
269501407
Deflecteur *deflector ( )
12
293200093
Anneau Neoprene*neoprene Seal ( )
14
269501633
Miroir Droit*mirror Assy-rh. (includes 14 To 22 )
16
269501330
Cadre Miroir *frame-mirror ( )
17
269501331
Support Cadre *supp.housing ( )
18
269501387
Logement Ecrou *housing-nut As ( )
19
269500079
Rotule Miroir *mirror Joint ( )
20
293550010
Graisse Synth. *grease-synth. ( )
21
269501334
Ressort Miroir *spring-mirror ( )
22
232561600
Nut-stop Elastic Din.985-a2 ( )
23
269501577
Coquille Miroir*mirror Sheel (includes 23 To 24, Yellow/black )
23
269501578
Coquille Miroir*mirror Sheel (includes 23 To 24, Viper Red )
25
269501600
Support Droit *rh.support ( )
26
269501634
Miroir Gau. Ass*ror Assy-lh. (includes 26 To 34 )
35
269501579
Coquille Miroir*mirror Sheel (includes 35 To 36, Yellow/black )
35
269501580
Coquille Miroir*mirror Sheel (includes 35 To 36, Viper Red )
37
269501601
Support Gauche *lh.support ( )
38
230082060
Screw-hex.cap Din.931a2 ( )
39
234082600
Washer-flat Din.9021b-a2 ( )
40
269501575
Couv.bag.sub.as*cover-storage ( )
43
234062600
Washer-flat Din.9021b-a2 ( )
44
207162560
Screw-hex.cap Din.933a2 ( )
45
293830005
Butee *rubber Stopper ( )
46
269700076
Couv.loquet *cover-latch ( )
47
269700109
Loquet Assemble*latch Ass Y ( )
48
269700077
Levier Loquet *lever-latch ( )
49
269700017
Ressort Loquet *spring-latch ( )
50
207063060
Screw-hex.cap Din.931a2 ( )
51
234061600
Washer-flat Din.125a-a2 ( )
52
269501409
Deflecteur *deflector ( )
53
269501410
Deflecteur *deflector ( )
