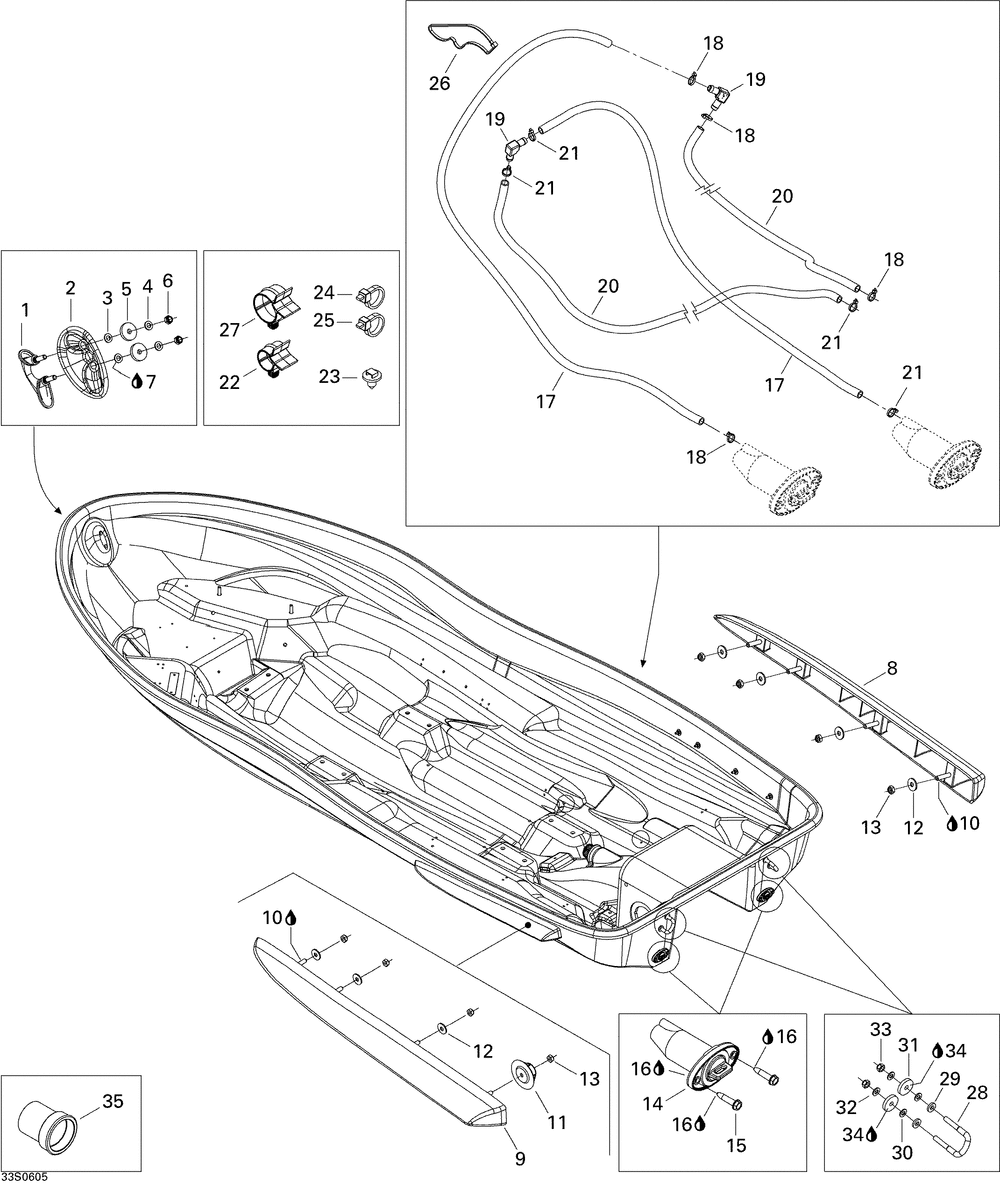

Корпус

Sea-Doo (Bombardier) 3D 947 DI
Sea-Doo (Bombardier)
#oem кодцена
1
292000708
Amarre Noire *bow-eye Black ( )
2
292000453
Coquille Noire *shell-black ( )
3
234081600
Washer-flat Din.125a-a2 ( )
4
250200011
Washer-flat Stlss. M8 ( )
5
293830037
Rondelle Caout.*washer-rubber ( )
6
232581600
Nut-stop Elastic Din.985a2 ( )
8
292000411
Stabilisat.dr. *sponson-rh. ( )
9
292000412
Stabilisat.ga. *sponson-lh. ( )
11
292000992
Isolateur *insulator ( )
12
234062600
Washer-flat Din.9021b-a2 ( )
13
232561600
Nut-stop Elastic Din.985-a2 ( )
14
292001252
Bouch.purge*drain Plug Ass Y ( )
15
211000023
Screw-plastite Hex.wr.hd.unsl ( )
17
275000263
Boyau Huile Inj*hose-oil Inj. ( )
18
293750001
Tie Rap 94mm *tie-rap 94mm ( )
19
293710057
Raccord Coude90*fitting-elbow ( )
20
275000007
Boyau 8mm. *hose-8mm. ( )
22
275500527
Attache *retainer ( )
23
293730018
Dard D Ancrage *dart-mount ( )
24
414115200
Tie-rap 180 Mm ( )
25
293750008
Tie Rap 350mm *tie-rap 350mm ( )
27
275500590
Attache *retainer ( )
28
292000933
Bride En U *u-clamp ( )
29
293050001
Rondelle Plate *flat Washer ( )
30
234081100
Washer-flat Din.125a ( )
35
292000075
Passe-coque *hull-thru Fitt ( )
