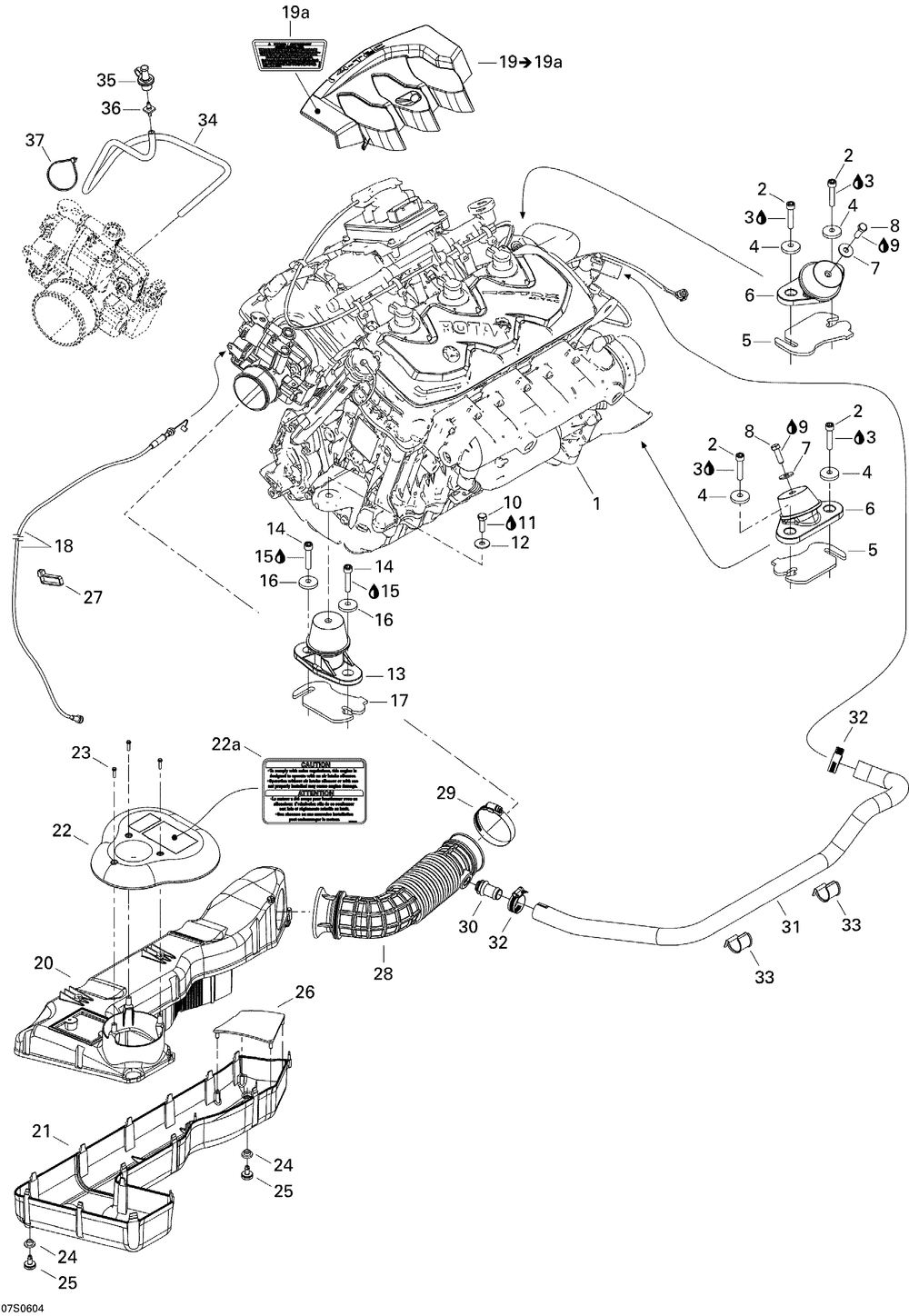

Опора двигателя и глушитель воздухозаборника

Sea-Doo (Bombardier) GTX 4-TEC, STD
Sea-Doo (Bombardier)
#oem кодцена
1
270000639
Moteur Rotax *engine-1503 ( )
2
205084060
Screw-socket Hd.din.912a2 ( )
3
293800060
Loctite 243
4
250200018
Rondelle Coniq.*washer-cone ( )
5
270000446
Cale Epaisseur *shim-1.3mm. ( )
6
270000669
Tampon Ancrage *mount-rubber ( )
7
234082600
Washer-flat Din.9021b-a2 ( )
8
207182560
Screw-hex.cap Din.933a2 ( )
13
270000690
Tampon Ancrage *mount-rubber ( )
18
277001170
Cable Accelerat*throttle Cable ( )
19
270000677
Couvercle Ass`e*cover Ass`y (includes 19 To 19a )
219902674
Avertissement *warning ( )
20
273000224
Silencieux Adm.*silenc-air Upp ( )
21
273000190
Silencieux Adm.*silenc-air Low ( )
22
273000192
Couvercle *cover ( )
219902673
Etiquette Inst.*inst-label ( )
23
241141660
Screw-pt.hex.flange K40 X 16 ( )
24
293720064
Passe-fils *grommet ( )
25
275500454
Soupape Retenue*valve-check ( )
26
273000206
Deflecteur .*deflector ( )
27
414115200
Tie-rap 180 Mm ( )
28
273000187
Boyau Admission*hose-intake ( )
29
293650064
Bride Serrage *clamp-tridon ( )
30
273000195
Reniflard *breather ( )
31
270000681
Boyau Forme *hose-formed ( )
32
293650051
Bride Serrage *clamp-tridon ( )
33
275500664
Attache *retainer ( )
34
270000469
Boyau 3mm *hose-3mm ( )
35
293830115
Oeillet Cap. *grommet Cap ( )
36
293710107
Raccord *connector ( )
37
293750001
Tie Rap 94mm *tie-rap 94mm ( )
