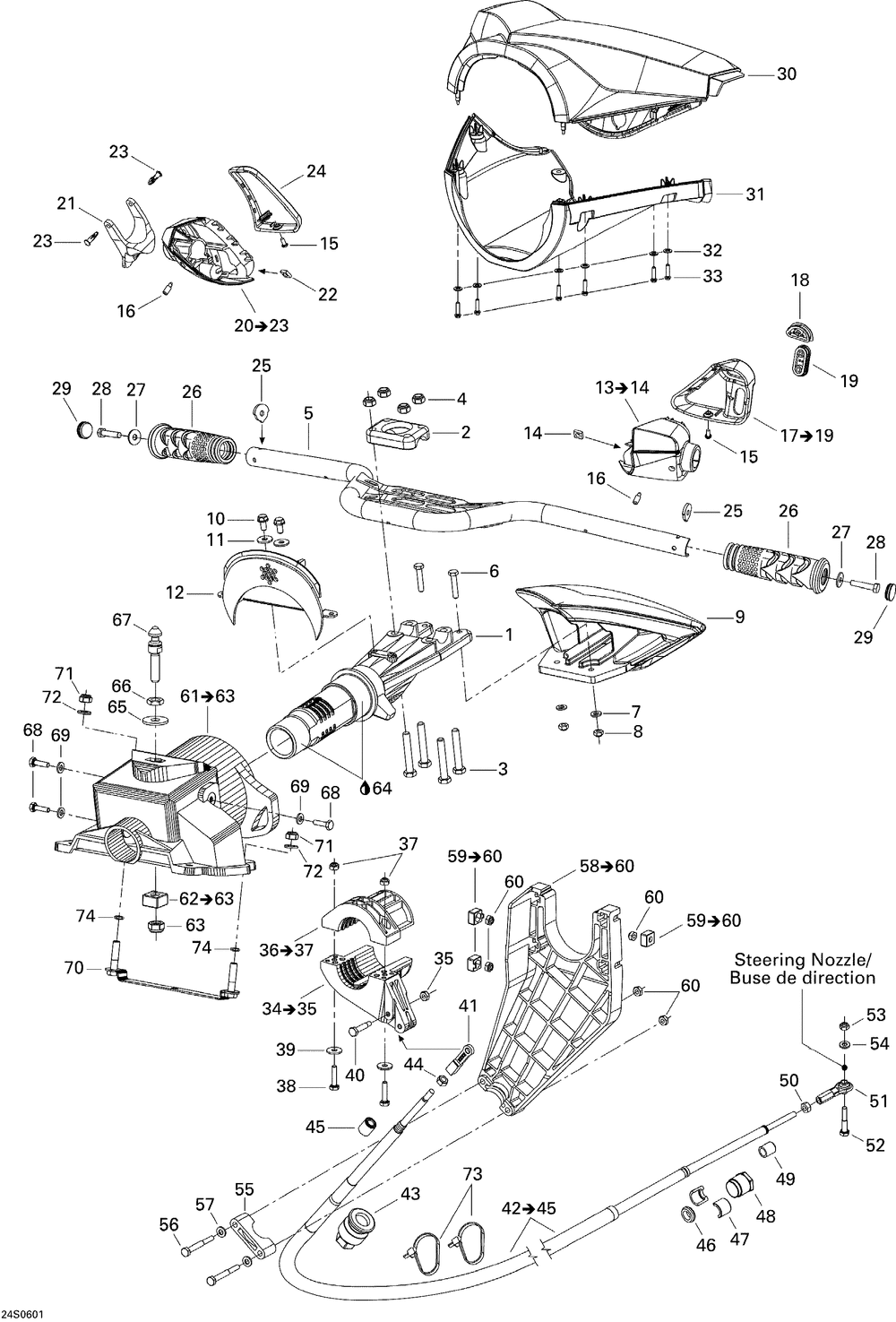

Рулевая система

Sea-Doo (Bombardier) RXP, 2006
Sea-Doo (Bombardier)
#oem кодцена
1
277000562400
Tige Direction *stem-steering ( )
2
277000142
Bride Direction*steering Clamp ( )
3
207085060
Screw-hex.cap Din.931a2 ( )
4
232581200
Nut-stop Elastic Din.985 ( )
5
277001460
Guidon Soude *bar-handle ( )
6
207063060
Screw-hex.cap Din.931a2 ( )
7
234061600
Washer-flat Din.125a-a2 ( )
8
232561200
Nut-stop Elastic Din.985 ( )
9
277001345
Tampon Guidon *handle Pad (viper Red, B-267 )
9
277001429
Tampon Guidon *handle Pad (maya Gold, B-270 )
10
211000036
Screw-forming Hex.hd. ( )
11
234062600
Washer-flat Din.9021b-a2 ( )
12
277000549
Plaque Mar.noir*plate-mar.blac ( )
13
277001481
Logement Ass. *housing-ass Y (includes 13 To 14 )
14
232860600
Nut-square Thin M6 Din.562a2 ( )
15
209630960
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
16
250000036
Screw-socket Set M6x16 Ss304-a2 ( )
17
277001442
Couvercle *housing-cover (includes 17 To 19 )
18
278001713
Bouton D Arret *knob-stop ( )
19
278002066
Bouton De Vts *vts Knob ( )
20
277001483
Log.man.acc.ass*housing-thrott (includes 20 To 23 )
21
277001485
Manette Acc. *throttle Handle ( )
23
277000381
Goupille *pin ( )
24
277001355
Couvercle *housing-cover ( )
25
277000554
Ajout Gaine *insert-grip ( )
26
277001336
Gaine Guidon *handle Grip ( )
28
250000002
Винт Din.933a2 (отпуск.по 10шт)
29
277000203
Capuchon Gaine *cap-grip Black ( )
30
277000952
Couvre Guidon *cover-stee.sup ( )
31
277001145
Couvre Guidon *cover-stee.inf. ( )
32
234051600
Washer-flat Din.125a-a2 ( )
33
241141660
Screw-pt.hex.flange K40 X 16 ( )
34
277001472
Support *support ( )
35
232561600
Nut-stop Elastic Din.985-a2 ( )
36
277001473
Palier Bras *thrust-arm ( )
38
207162560
Screw-hex.cap Din.933a2 ( )
40
211000081
Screw-hex.cap ( )
41
277001180
Joint Rotule *ball Joint ( )
42
277001580
Cable Direction*cable-steering (includes 42 To 45 )
42
277001582
Embout Petit *wiper Rod (includes 42 To 45 )
42
277001583
Embout Grand *end Piece (includes 42 To 45 )
43
277000782
Bouton Ajust. *knob-ajust. ( )
44
211100056
Nut-hex. 1/4-28 Ss-304 ( )
45
277000441
Racleur *wiper-terminal ( )
46
293830063
Rondelle Caout.*rubber Washer ( )
47
277000783
Demi-bague *half-ring ( )
48
277000784
Barrure Cable *lock-cable ( )
51
277000775
Joint Rotule *ball Joint ( )
52
207063560
Screw-hex.cap Din.931a2 ( )
55
277000162
Palier Support *thrust Support ( )
56
207065060
Screw-hex.cap Din.931a2 ( )
58
277001522
Support Cable *support-cable (includes 58 To 60 )
59
269500252
Logement Ecrou *housing-nut As ( )
61
277001471
Support Direct.*support-steer. (includes 61 To 63 )
62
271000598
Logement Ecrou *housing-nut ( )
63
232501600
Nut-stop Elastic Din.985a2 ( )
64
293550010
Graisse Synth. *grease-synth. ( )
65
234002600
Washer-flat Din.9021b-a2 ( )
66
232100600
Nut-jam Hexagonal Din.439b-a2 ( )
67
291000689
Ergot D Ancrage*stud-latch ( )
68
207162060
Screw-hex.cap Din.933a2 ( )
70
277001000
Support Direct.*support-steer. ( )
72
234081600
Washer-flat Din.125a-a2 ( )
73
293750008
Tie Rap 350mm *tie-rap 350mm ( )
74
293300123
Кольцо
