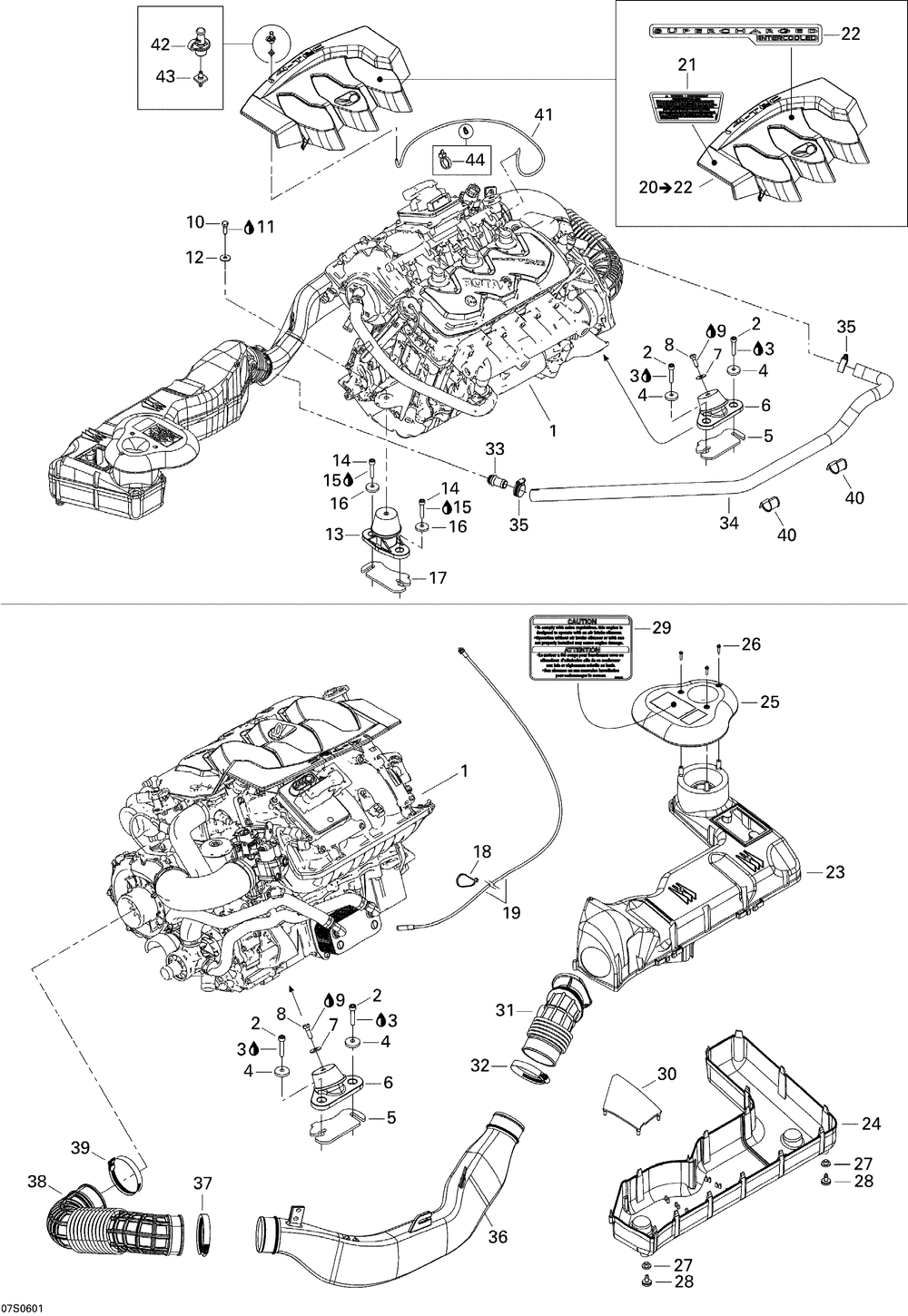

Опора двигателя и глушитель воздухозаборника

Sea-Doo (Bombardier) RXP, 2006
Sea-Doo (Bombardier)
#oem кодцена
1
270000641
Moteur *engine-1503 Bvic ( )
2
205084060
Screw-socket Hd.din.912a2 ( )
3
293800060
Loctite 243
4
250200018
Rondelle Coniq.*washer-cone ( )
5
270000446
Cale Epaisseur *shim-1.3mm. ( )
6
270000669
Tampon Ancrage *mount-rubber ( )
7
234082600
Washer-flat Din.9021b-a2 ( )
8
207182560
Screw-hex.cap Din.933a2 ( )
13
270000690
Tampon Ancrage *mount-rubber ( )
18
414115200
Tie-rap 180 Mm ( )
19
277001070
Cable Accelerat*throttle Cable ( )
20
270000679
Couvercle Ass`e*cover Ass`y (includes 20 To 22 )
21
219902674
Avertissement *warning ( )
22
219902676
Decalque Moteur*engine Decal ( )
23
273000222
Silencieux Adm.*silenc-air Upp ( )
24
273000190
Silencieux Adm.*silenc-air Low ( )
25
273000192
Couvercle *cover ( )
26
241141660
Screw-pt.hex.flange K40 X 16 ( )
27
293720064
Passe-fils *grommet ( )
28
275500454
Soupape Retenue*valve-check ( )
29
219902673
Etiquette Inst.*inst-label ( )
30
273000206
Deflecteur .*deflector ( )
31
273000186
Boyau Admission*intake Hose ( )
32
293650064
Bride Serrage *clamp-tridon ( )
33
273000195
Reniflard *breather ( )
34
270000655
Boyau Forme *hose-formed ( )
35
293650051
Bride Serrage *clamp-tridon ( )
36
273000185
Boyau Admission*intake Hose ( )
37
293650179
Bride Serrage *clamp-tridon ( )
38
273000188
Boyau Admission*hose-intake ( )
40
275500664
Attache *retainer ( )
41
270000469
Boyau 3mm *hose-3mm ( )
42
293830115
Oeillet Cap. *grommet Cap ( )
43
293710107
Raccord *connector ( )
44
293750001
Tie Rap 94mm *tie-rap 94mm ( )
