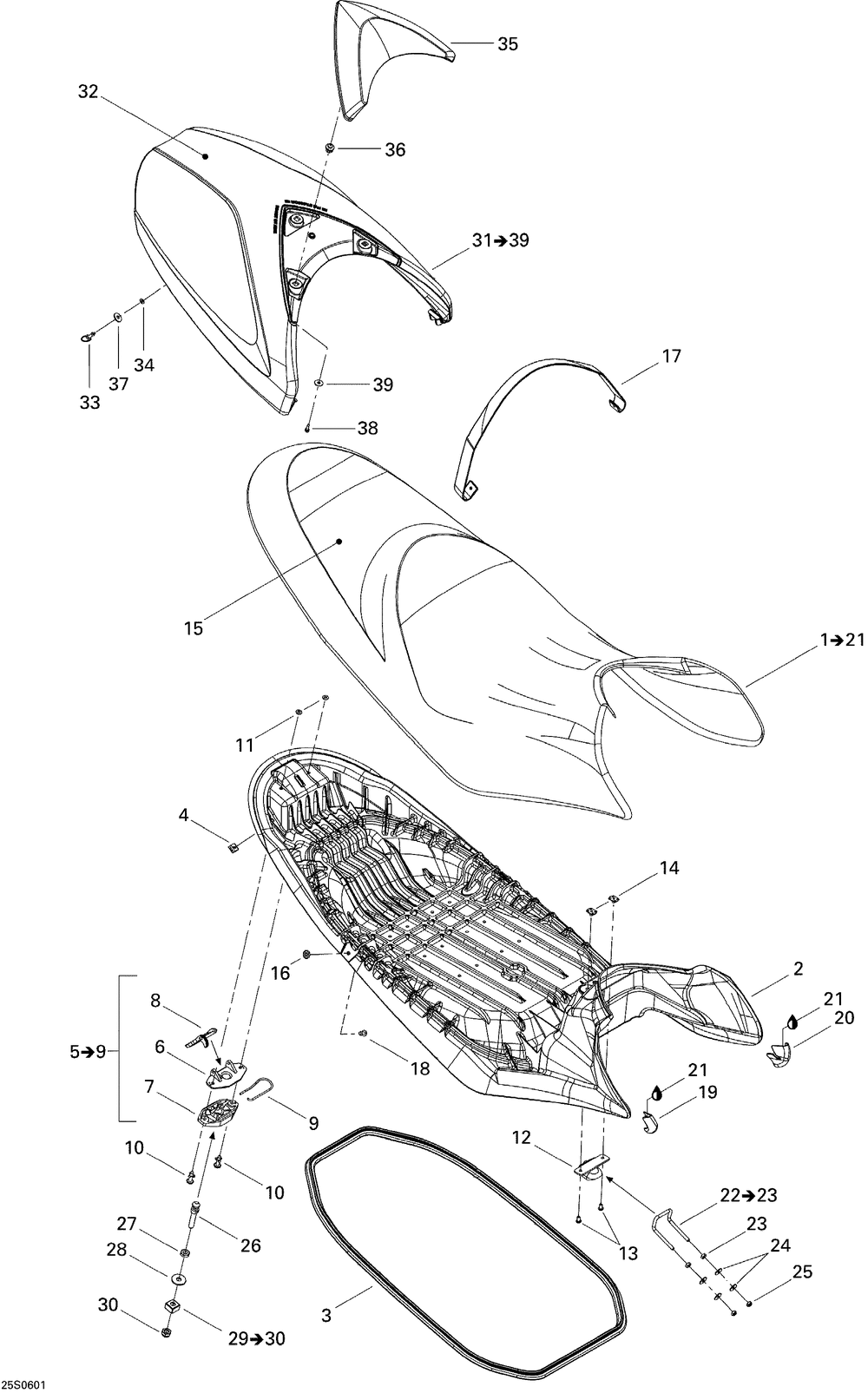

Сиденье

Sea-Doo (Bombardier) RXP, 2006
Sea-Doo (Bombardier)
#oem кодцена
1
269001198
Siege Assemble *seat Ass Y (includes 1 To 21, Viper Red, B-267 )
1
269001362
Siege Assemble *seat Ass Y (includes 1 To 21, Maya Gold, B-270 )
3
293200107
Joint Etanche *seal ( )
4
250100032
Quarter-turn Nut ( )
6
269700076
Couv.loquet *cover-latch ( )
7
269700109
Loquet Assemble*latch Ass Y ( )
8
269700077
Levier Loquet *lever-latch ( )
9
269700017
Ressort Loquet *spring-latch ( )
10
293150074
Rivet-pop 1/4 *rivet-pop 1/4 ( )
11
234061600
Washer-flat Din.125a-a2 ( )
12
291002012
Crochet Siege *hook-seat ( )
13
205961060
Screw-socket Bn.hd.s.grip Iso.7380a2 ( )
14
293100003
Ecrou A Souder *nut-weld. ( )
16
293720067
Passe-fils *grommet ( )
17
269001200
Sangle De Siege*seat Strap (viper Red, B-267 )
17
269001364
Sangle De Siege*seat Strap (maya Gold, B-270 )
18
293150078
Rivet-pop 1/4 *rivet-pop ( )
19
269001201
Coin Siege Dr. *rh. Corner (viper Red, B-267 )
20
269001202
Coin Siege Ga. *lh.corner (viper Red, B-267 )
21
413705800
Loctite 414 *loctite-414 ( )
22
291001937
Tige En U *u-clamp ( )
23
232061600
Nut-hexagonal Din.934a2 ( )
24
234062600
Washer-flat Din.9021b-a2 ( )
25
232561200
Nut-stop Elastic Din.985 ( )
26
291000691
Ergot De Siege *stud-seat ( )
27
232100600
Nut-jam Hexagonal Din.439b-a2 ( )
28
234002600
Washer-flat Din.9021b-a2 ( )
29
271000598
Logement Ecrou *housing-nut ( )
30
232501600
Nut-stop Elastic Din.985a2 (includes 29 To 30 )
32
269000945
Couvre-siege *seat Cover ( )
33
250100033
Quarter-turn Screw ( )
34
250200023
Rondelle Nylon *washer ( )
35
269001304
Couvre Siege *seat Cover ( )
37
517302265
Rondelle *washer ( )
38
243041660
Screw-plastite Hex.unsl ( )
