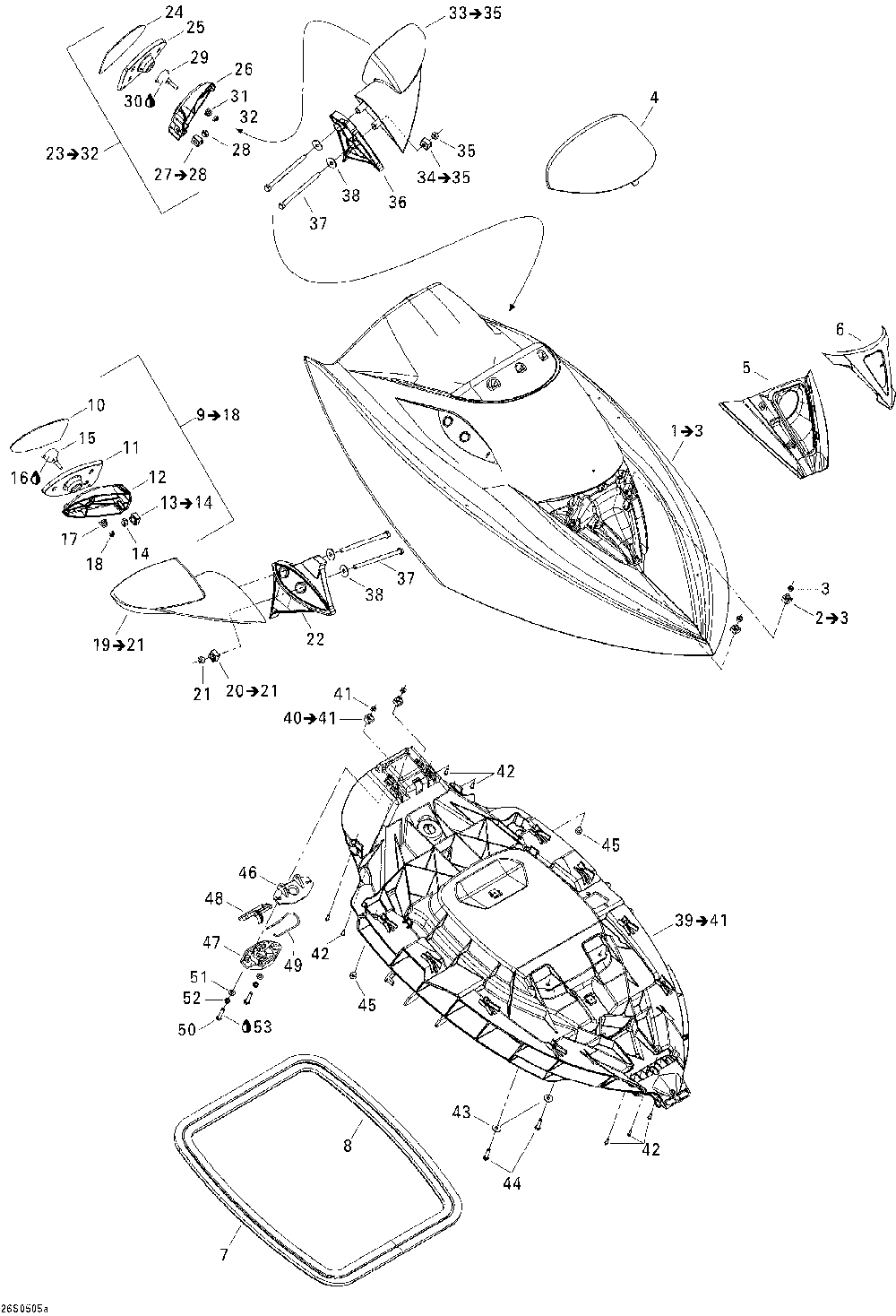

09- front storage compartment 1 wake

Sea-Doo (Bombardier) GTX 4-TEC, WAKE
Sea-Doo (Bombardier)
#oem кодцена
1
269501196
Couvercle *lugage Cover Wake, Includes 1 To 3
2
269500252
Logement Ecrou *housing-nut As Includes 2 To 3
3
232061600
Гайка
4
269501189
Дефлектор
5
269500994
Grille Inf. *grill-lower
6
269500942
Grille Chrome *grill-chrome
7
293200093
Неопреновый сальник
9
269501393
Miroir Droit*mirror Assy-rh. Wake, Includes 9 To 18
10
269501292
Miroir Droit *mirror-right Wake
11
269500697
Cadre Miroir *frame-mirror Wake
12
269500807
Support Cadre *supp.housing Wake
13
269501387
Logement Ecrou *housing-nut As Wake, Includes 13 To 14
15
269500079
Rotule Miroir *mirror Joint Wake
16
293550010
Graisse Synth. *grease-synth.
17
269500453
Ressort Miroir *spring-mirror Wake
18
232561600
Nut-stop Elastic Din.985-a2 Wake
19
269501327
Coq. Mirroir *mirror Sheel Wake, Includes 19 To 21
22
269500950
Support Droit *rh.support
23
269501394
Miroir Gauche*mirror Assy-lh. Wake, Includes 23 To 32
24
269501294
Miroir Gauche *mirror-left Wake
33
269501345
Coq. Mirroir *mirror Sheel Wake, Includes 33 To 35
36
269500951
Support Gauche *lh.support
37
230082060
Винт
38
234082600
Шайба
39
269501575
Couv.bag.sub.as*cover-storage Includes 39 To 41
42
241141360
Screw-pt.hex.flange K40 X 13
43
234062600
Шайба
44
207362560
Винт
45
293830005
Резиновый буфер
46
269700076
Couv.loquet *cover-latch
47
269700109
Loquet Assemble*latch Ass Y
48
269700077
Levier Loquet *lever-latch
49
269700017
Ressort Loquet *spring-latch
50
207063060
Винт
51
234061600
Шайба
52
234161601
Шайба Din.127b-a2
53
293800060
Фиксатор резьбы loctite-243
