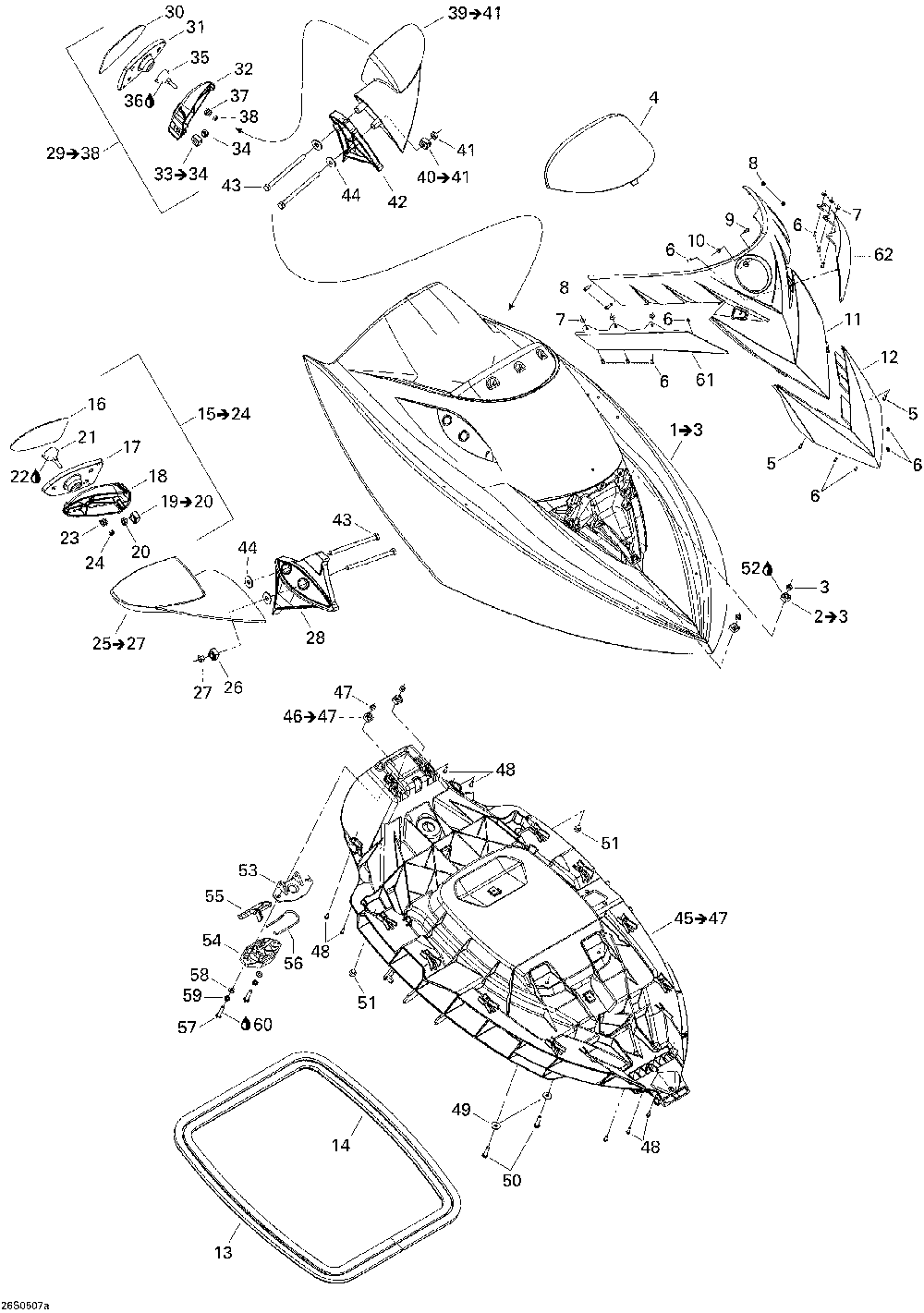

09- front storage compartment 1 red

Sea-Doo (Bombardier) RXT
Sea-Doo (Bombardier)
#oem кодцена
1
269501419
Couvercle *lugage Cover Includes 1 To 3 / Viper Red, B-267
2
269500252
Logement Ecrou *housing-nut As Includes 2 To 3
3
232061600
Гайка
4
269500943
Deflecteur *deflector Viper Red, B-267
5
241141360
Screw-pt.hex.flange K40 X 13
6
293150001
Заклепка
7
293150007
Шайба
9
293150029
Rivet-pop 5/32 *rivet-pop 5/32
10
234040600
Шайба DIN.433A2 (отпуск.по 10 шт)
11
269501519
Facia *fascia
12
269501407
Дефлектор
13
293200093
Неопреновый сальник
15
269501633
Miroir Droit*mirror Assy-rh. Includes 15 To 24
17
269501330
Cadre Miroir *frame-mirror
18
269501331
Support Cadre *supp.housing
19
269501387
Logement Ecrou *housing-nut As Includes 19 To 20
21
269500079
Rotule Miroir *mirror Joint
22
293550010
Graisse Synth. *grease-synth.
23
269501334
Ressort Miroir *spring-mirror
24
232561600
Гайка стопорная эластичная 985-A2
25
269501425
Coquille Miroir*mirror Sheel Includes 25 To 27 / Viper Red, B-267
28
269500950
Support Droit *rh.support
29
269501634
Miroir Gau. Ass*ror Assy-lh. Includes 29 To 38
39
269501427
Coquille Miroir*mirror Sheel Includes 39 To 41 / Viper Red, B-267
42
269500951
Support Gauche *lh.support
43
230082060
Винт
44
234082600
Шайба
45
269501575
Couv.bag.sub.as*cover-storage Includes 45 To 47
49
234062600
Шайба
50
207362560
Винт
51
293830005
Резиновый буфер
53
269700076
Couv.loquet *cover-latch
54
269700109
Loquet Assemble*latch Ass Y
55
269700077
Levier Loquet *lever-latch
56
269700017
Ressort Loquet *spring-latch
57
207063060
Винт
58
234061600
Шайба
59
234161601
Шайба Din.127b-a2
60
293800060
Фиксатор резьбы loctite-243
61
269501409
Дефлектор
62
269501410
Дефлектор
