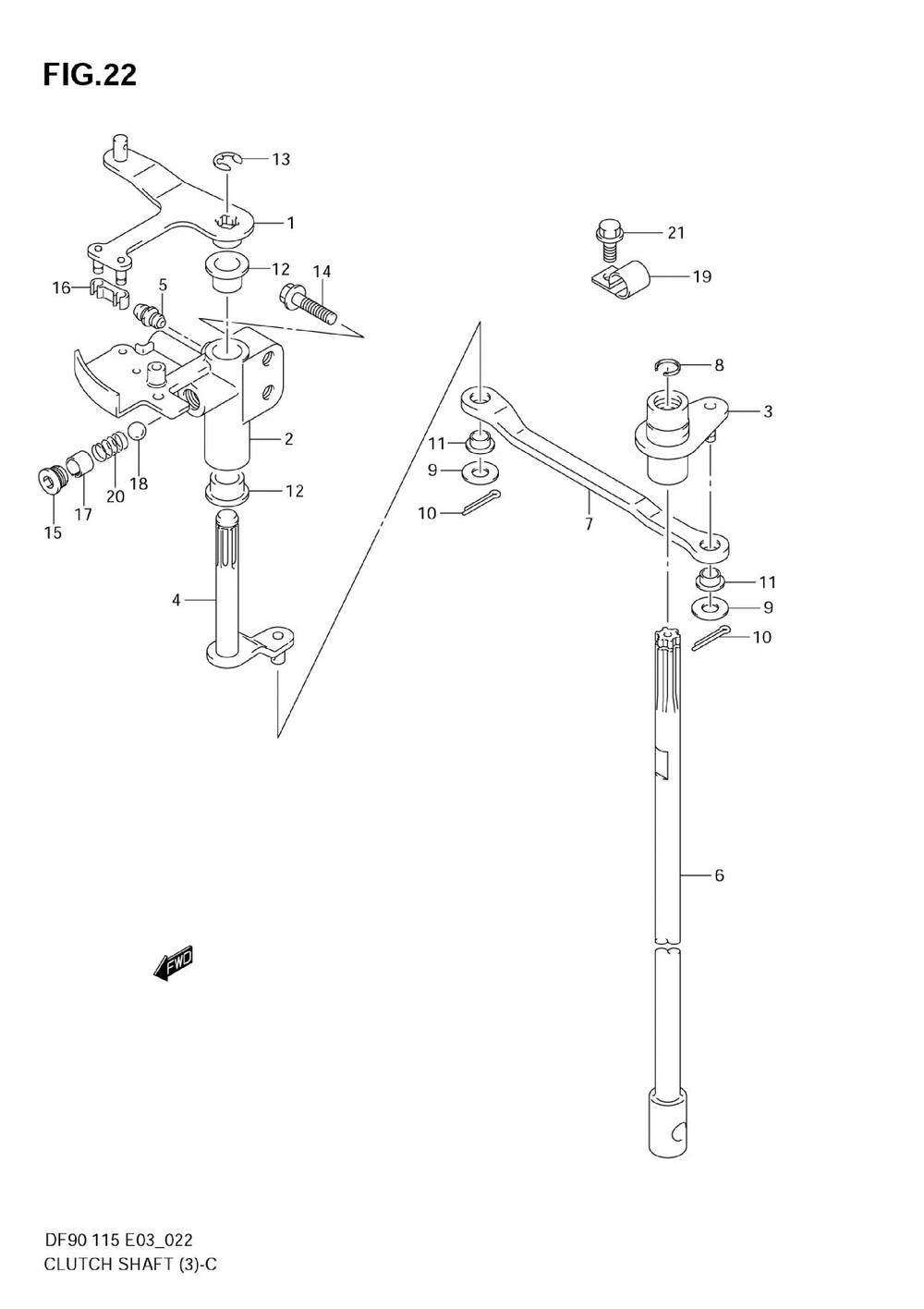

Ch shaft (df90t:680686~,df115t:681518~,df115z,df100t)
Ch shaft (df90t:680686~,df115t:681518~,df115z,df100t)

Ch shaft (df90t:680686~,df115t:681518~,df115z,df100t)

Suzuki Marine DF100-115

Ch shaft (df90t:680686~,df115t:681518~,df115z,df100t)

oem код

название

цена

Lever Comp, Clut ( )

Holder, Clutch L ( )

Shaft Comp, Clut ( )

Arm Comp, Clutch ( )

Nipple, Grease ( )

6-1

23111-90J02

Rod, Clutch (l) ( )

6-2

23111-90J12

Rod, Clutch (x) ( )

23115-92J00

Link, Clutch Lev ( )

23117-90J00

Ring, Clutch Rod (df90:~681180 Df115:~682292 )

09160-06094

Washer (6.5x15x1.5) ( )

09204-01006

Pin ( )

09306-06004

Bush, Clutch Lever Link ( )

Bush ( )

E Ring ( )

Bolt ( )

Plug, Notch Spri ( )

Bush, Clutch Lev ( )

Pin ( )

Ball ( )

Clamp, Hose ( )

Spring, Clutch Notch ( )

01550-06167

.bolt, Remocon Cable Holder ( )
