Suzuki Marine DF100-115

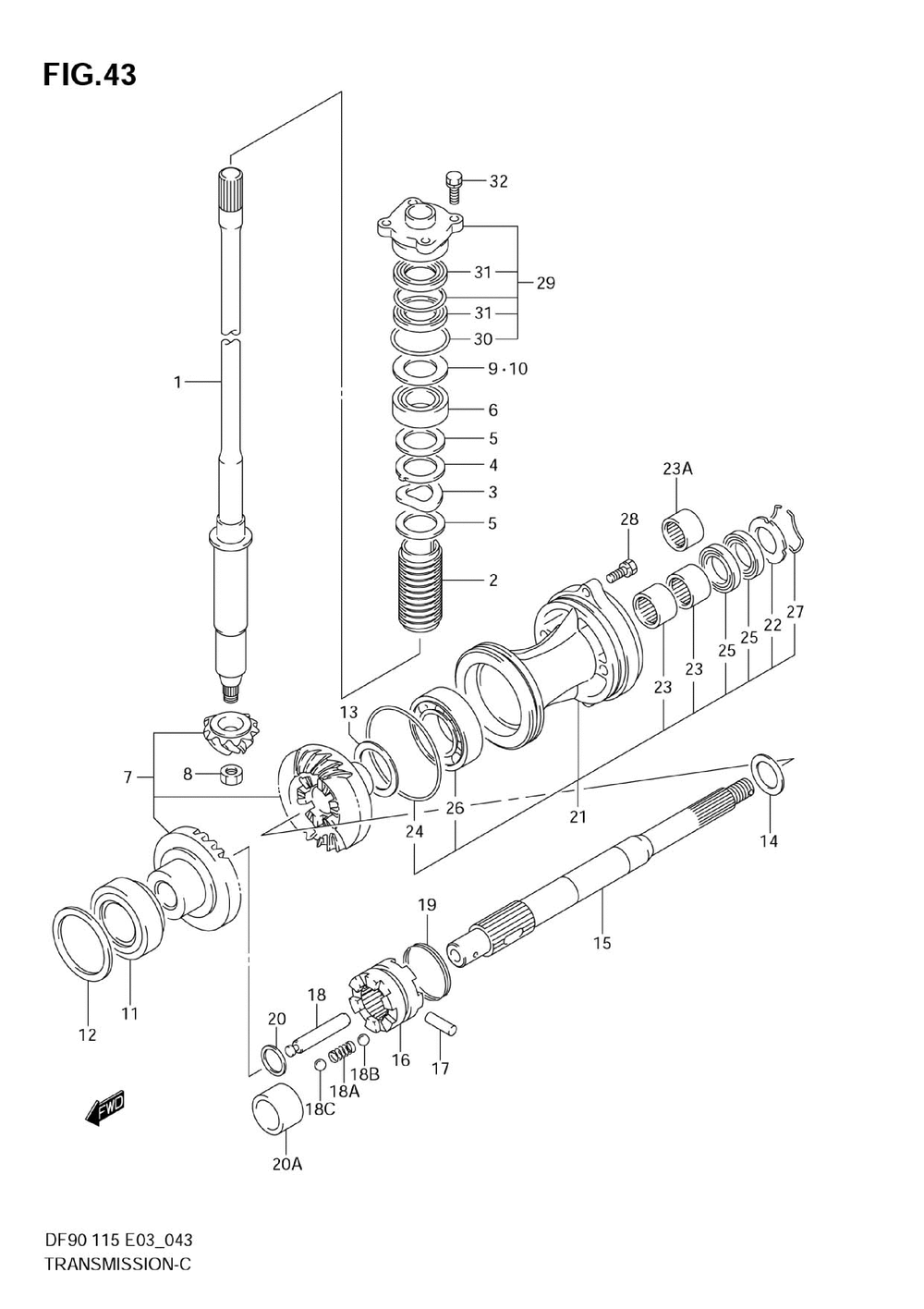

Transmission (df90t,df100t,df115t)

#

oem код

название

цена

1-1

Shaft, Drive (l) ( )

Shaft, Drive (l) ( )

1-2

Shaft Comp, Driv (model:04~06 )

Shaft Comp, Driv (model:04~06 )

1-4

Shaft, Drive (ul ( )

Shaft, Drive (ul ( )

1-5

Shaft Comp, Driv (model:04~06 )

Shaft Comp, Driv (model:04~06 )

2

Collar ( )

Collar ( )

3

Washer, Wave (model:01~03 )

Washer, Wave (model:01~03 )

4

Washer (model:01~03 )

Washer (model:01~03 )

5

Washer (model:01~03 )

Washer (model:01~03 )

6

Bearing ( )

Bearing ( )

7-1

Pinion / Gear S ( )

Pinion / Gear S ( )

7-2

Pinion / Gear S (df90:680686~ Df115:681518~ )

Pinion / Gear S (df90:680686~ Df115:681518~ )

7-3

Pinion / Gear S (model:07~09 )

Pinion / Gear S (model:07~09 )

8

Nut ( )

Nut ( )

9

Shim Set, Drive ( )

Shim Set, Drive ( )

10-1

.shim (t:0.50) ( )

.shim (t:0.50) ( )

10-2

Shim ( )

Shim ( )

10-3

.shim (t:0.60) ( )

.shim (t:0.60) ( )

10-4

.shim (t:0.65) ( )

.shim (t:0.65) ( )

10-5

.shim (t:0.70) ( )

.shim (t:0.70) ( )

10-6

.shim (t:0.75) ( )

.shim (t:0.75) ( )

10-7

.shim (t:0.80) ( )

.shim (t:0.80) ( )

10-8

.shim (t:0.85) ( )

.shim (t:0.85) ( )

10-9

.shim (t:0.90) ( )

.shim (t:0.90) ( )

10-10

.shim (t:0.95) ( )

.shim (t:0.95) ( )

10-11

.shim (t:1.00) ( )

.shim (t:1.00) ( )

10-12

.shim (t:1.05) ( )

.shim (t:1.05) ( )

10-13

.shim (t:1.10) ( )

.shim (t:1.10) ( )

10-14

.shim (t:1.15) ( Refer To Fig.44(g-13) For Df115z )

.shim (t:1.15) ( Refer To Fig.44(g-13) For Df115z )

11

Bearing (inc 55100-90802-0ep )

Bearing (inc 55100-90802-0ep )

12-1

Shim (t:0.45) ( )

Shim (t:0.45) ( )

12-2

Shim (t:0.50) ( )

Shim (t:0.50) ( )

12-3

Shim (t:0.55) ( )

Shim (t:0.55) ( )

12-4

Shim (t:0.60) ( )

Shim (t:0.60) ( )

12-5

Shim (t:0.65) ( )

Shim (t:0.65) ( )

12-6

Shim (t:0.70) ( )

Shim (t:0.70) ( )

12-7

Shim (t:0.75) ( )

Shim (t:0.75) ( )

12-8

Shim (t:0.80) ( )

Shim (t:0.80) ( )

12-9

Shim (t:0.85) ( )

Shim (t:0.85) ( )

12-10

Shim (t:0.90) ( )

Shim (t:0.90) ( )

13-1

Shim ( )

Shim ( )

13-2

Shim (t:1.1) ( )

Shim (t:1.1) ( )

13-3

Shim ( )

Shim ( )

13-4

Shim ( )

Shim ( )

13-5

Shim ( )

Shim ( )

13-6

Shim ( )

Shim ( )

13-7

Shim ( )

Shim ( )

14-1

Shim (t:1.5) ( )

Shim (t:1.5) ( )

14-2

Shim (t:1.0) ( )

Shim (t:1.0) ( )

14-3

Shim (t:1.2) ( )

Shim (t:1.2) ( )

14-4

Shim (t:1.3) ( )

Shim (t:1.3) ( )

14-5

Shim (t:1.4) ( )

Shim (t:1.4) ( )

14-6

Shim (t:1.6) ( )

Shim (t:1.6) ( )

15-1

Shaft, Propelle ( )

Shaft, Propelle ( )

15-2

Shaft, Propeller (df90:252072~ Df115:255123~ )

Shaft, Propeller (df90:252072~ Df115:255123~ )

15-3

Shaft, Prop (df90:680686~ Df100 )

Shaft, Prop (df90:680686~ Df100 )

16-1

Shifter, Clutch ( )

Shifter, Clutch ( )

16-2

Shifter, Clutch (df90:252072~ Df115:255123~ )

Shifter, Clutch (df90:252072~ Df115:255123~ )

16-3

Shifter, Clutch (df90:680686~ Df100 )

Shifter, Clutch (df90:680686~ Df100 )

17

Pin ( )

Pin ( )

18-1

Pin, Connector ( )

Pin, Connector ( )

18-2

Pin, Connector (df90:680686~ Df100 )

Pin, Connector (df90:680686~ Df100 )

18A

Spring, Detent (df90:680686~ Df100 )

Spring, Detent (df90:680686~ Df100 )

18B

Ball, Detent No.1 (df90:680686~ Df100 )

Ball, Detent No.1 (df90:680686~ Df100 )

18C

Ball (df90:680686~ Df100 )

Ball (df90:680686~ Df100 )

19-1

Spring Dog ( )

Spring Dog ( )

19-2

Spring (df90:252072~ Df100 )

Spring (df90:252072~ Df100 )

20

Shim (df90:~252071 Df115:~255122 )

Shim (df90:~252071 Df115:~255122 )

20A

Spacer, Clutch D (df90:252072~ Df100 )

Spacer, Clutch D (df90:252072~ Df100 )

21

56120-90J02-0EP

Housing, Prop Sh ( )

Housing, Prop Sh ( )

22

Washer, Oil Seal ( )

Washer, Oil Seal ( )

23

.bearing (df90:~252071 Df115:~255122 )

.bearing (df90:~252071 Df115:~255122 )

23A

Bearing, 28x37x3 (df90:252072~ Df100 )

Bearing, 28x37x3 (df90:252072~ Df100 )

24

.o Ring (d:3.5, Id:95.0) ( )

.o Ring (d:3.5, Id:95.0) ( )

25

.oil Seal ( )

.oil Seal ( )

26-1

.bearing ( )

.bearing ( )

26-2

.bearing (df90:251118~ Df100 )

.bearing (df90:251118~ Df100 )

27

Set Ring (sus) ( )

Set Ring (sus) ( )

28

Bolt (8x30) ( )

Bolt (8x30) ( )

29

Hsg Comp, Drive ( )

Hsg Comp, Drive ( )

30

.o Ring (d:3.5, Id:45.7) ( )

.o Ring (d:3.5, Id:45.7) ( )

31

.oil Seal ( )

.oil Seal ( )

32

Bolt (8x25) ( )

Bolt (8x25) ( )

1-5

Shaft, Drive (x) (model:04~06 )

Shaft, Drive (x) (model:04~06 )
