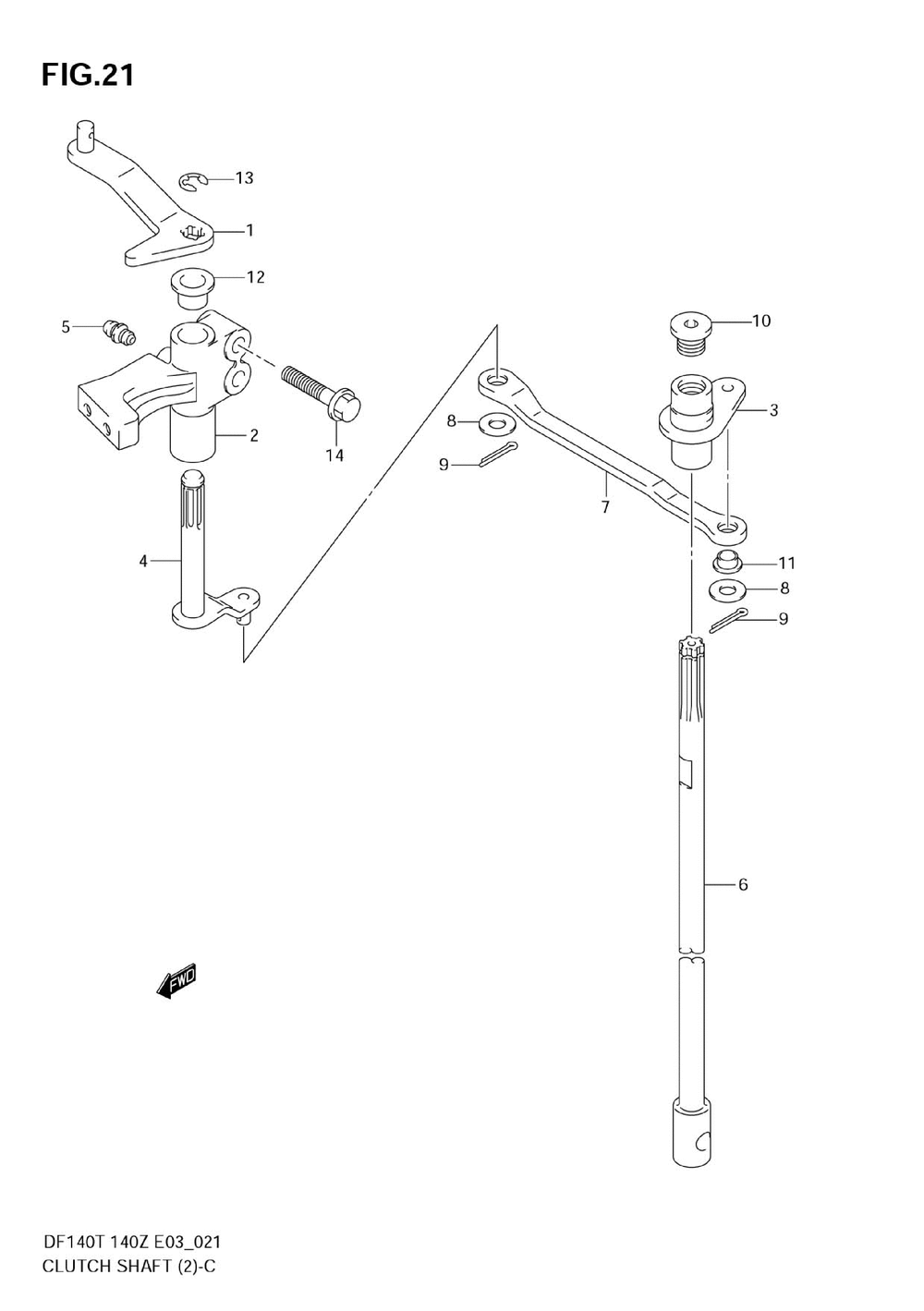

Clutch shaft (df140t:375472~,df140z:371347~)
Clutch shaft (df140t:375472~,df140z:371347~)

Clutch shaft (df140t:375472~,df140z:371347~)

Suzuki Marine DF140T,Z

Clutch shaft (df140t:375472~,df140z:371347~)

#

oem код

название

цена

1

Lever, Clutch ( )

Lever, Clutch ( )

2

Holder, Clutch L ( )

Holder, Clutch L ( )

3

Shaft Comp, Clut ( )

Shaft Comp, Clut ( )

4

Arm, Clutch Shaf ( )

Arm, Clutch Shaf ( )

5

Nipple, Grease ( )

Nipple, Grease ( )

6-1

Rod, Clutch (l) (df140t )

Rod, Clutch (l) (df140t )

6-2

Rod, Clutch (x) (df140t, Df140z )

Rod, Clutch (x) (df140t, Df140z )

7

Link, Clutch Lev ( )

Link, Clutch Lev ( )

8

Washer (6.5x15x1.5) ( )

Washer (6.5x15x1.5) ( )

9

Pin ( )

Pin ( )

10

Plug ( )

Plug ( )

11

Bush, Clutch Lever Link ( )

Bush, Clutch Lever Link ( )

12

Bush ( )

Bush ( )

13

E Ring ( )

E Ring ( )

14

Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ )

Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ )
