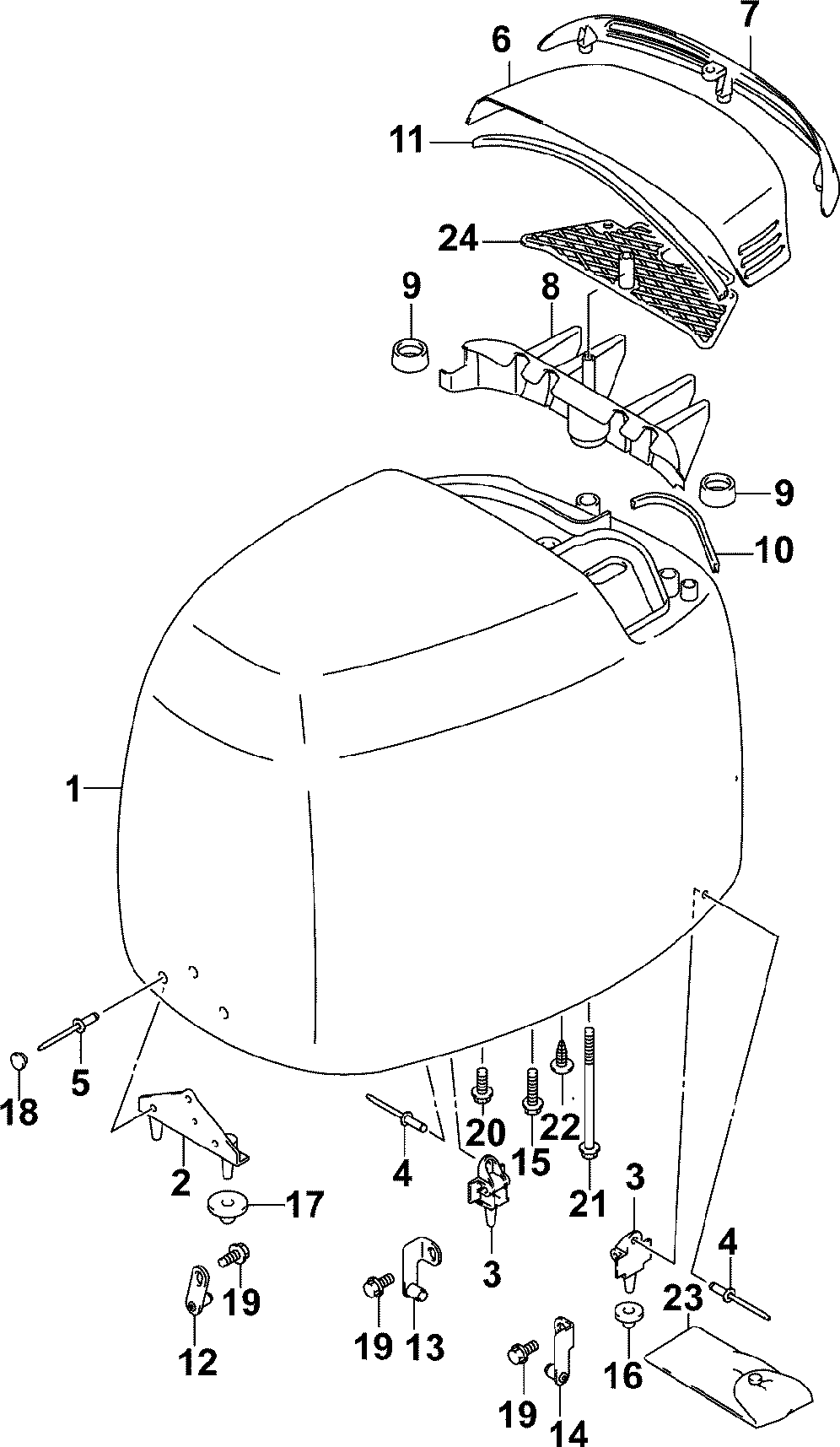

КАПОТ ДВИГАТЕЛЯ

Johnson J140CX4SRC
Johnson
#oem кодцена
1
5033959
Umc Ay, Jo/140/wht (important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal. )
2
5033862
Крепление
3
5033866
Bracket, Fastener
4
5033602
Заклёпка
5
5033603
Заклёпка
6
5033960
Handle, Tilt Up
7
5033961
Louver, Tilt Up Hdl
2
5034052
Handle,tilt Up (important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal., "blue" Color Models )
8
5033962
Кожух
9
5033963
Cushion, Air Intake
10
5033860
Уплотнение
11
5033964
Seal, Tilt Up Hdle
12
5033861
Застежка
13
5033867
Fastener Comp
14
5033868
Fastener, Rear Port
15
5033965
Bolt, 6x20 (new P/n For 2004 )
16
5030560
Подушка
17
5033620
Подушка
18
5033606
Крышка
19
5030988
Болт
20
5030989
Болт
21
5033293
Болт
22
5031012
Винт
23
5034538
Set, Tool (new P/n For 2004 )
24
5034643
Plate,air Intake (new P/n For 2004, Optional )
1
5033959
Umc Ay, Jo/140/wht (important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal. )
2
5033862
Крепление
2
5034052
Handle,tilt Up (important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal., "blue" Color Models )
3
5033866
Bracket, Fastener
4
5033602
Заклёпка
5
5033603
Заклёпка
6
5033960
Handle, Tilt Up
7
5033961
Louver, Tilt Up Hdl
8
5033962
Кожух
9
5033963
Cushion, Air Intake
10
5033860
Уплотнение
11
5033964
Seal, Tilt Up Hdle
12
5033861
Застежка
13
5033867
Fastener Comp
14
5033868
Fastener, Rear Port
15
5033965
Bolt, 6x20 (new P/n For 2004 )
16
5030560
Подушка
17
5033620
Подушка
18
5033606
Крышка
19
5030988
Болт
20
5030989
Болт
21
5033293
Болт
22
5031012
Винт
23
5034538
Set, Tool (new P/n For 2004 )
24
5034643
Plate,air Intake (new P/n For 2004, Optional )
