Gearcase, counter rotation Каталог оригинальных запчастей для лодочных моторов Johnson J140CX4SRC (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
2004
J140CX4SRC
Gearcase, counter rotation

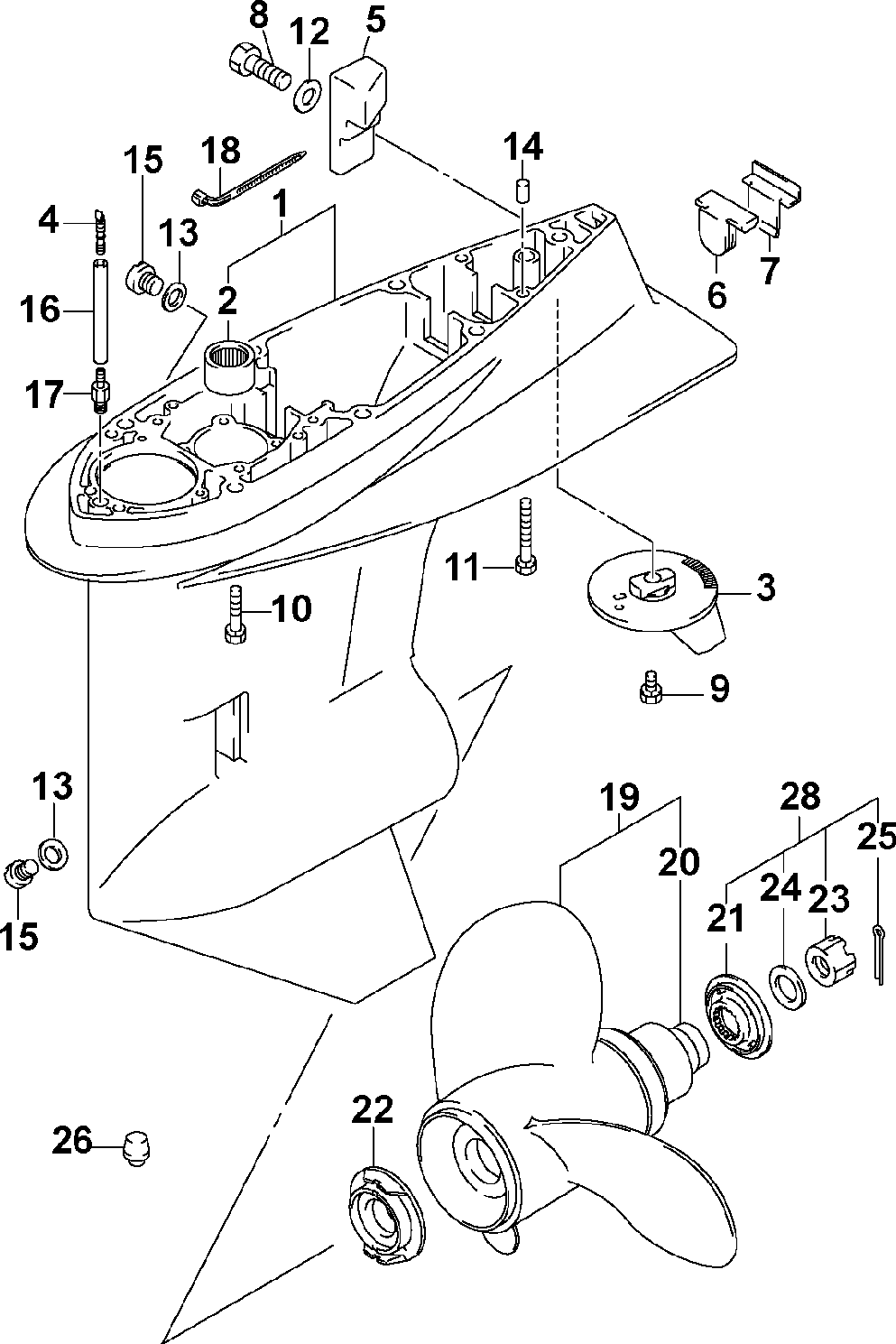

Gearcase, counter rotation

Gearcase, counter rotation

Johnson J140CX4SRC

Gearcase, counter rotation

#

oem код

название

цена

1

G-case & Brg/coro

G-case & Brg/coro

2

Bearing, Pinion

Bearing, Pinion

3

Trim Tab, 140 Coro

Trim Tab, 140 Coro

4

Соединение

Соединение

5

Anode, Gear Case

Anode, Gear Case

6

Уплотнение

Уплотнение

7

Plate, Exh Seal

Plate, Exh Seal

8

Болт М6x12

Болт М6x12

9

Bolt (8x22mm) (new P/n For 2004 )

Bolt (8x22mm) (new P/n For 2004 )

10

Bolt, (l55)

Bolt, (l55)

11

Bolt, 10x80

Bolt, 10x80

12

Washer, 6.5x15x1

Washer, 6.5x15x1

13

Fill Plug Washer

Fill Plug Washer

14

Штифт

Штифт

15

Plug, Drain, 10x7.5

Plug, Drain, 10x7.5

17

Ниппель

Ниппель

18

Tie Strap

Tie Strap

19

Prop, Sst 13-7/8x17 (stainless Steel (lh) )

Prop, Sst 13-7/8x17 (stainless Steel (lh) )

19

Prop, Ss Lh 19" (stainless Steel (lh) )

Prop, Ss Lh 19" (stainless Steel (lh) )

19

Prop, Sst 13-7/8x21 (stainless Steel (lh) )

Prop, Sst 13-7/8x21 (stainless Steel (lh) )

19

Prop, Ss Lh 23" (stainless Steel (lh) )

Prop, Ss Lh 23" (stainless Steel (lh) )

20

Bushing, Propeller

Bushing, Propeller

21

Prop Nut Spacer (new P/n For 2004 )

Prop Nut Spacer (new P/n For 2004 )

22

Stopper, Prop Bush

Stopper, Prop Bush

23

Гайка винта гребного

Гайка винта гребного

24

Шайба

Шайба

25

Шплинт

Шплинт

26

Plug, Water Tube (optional )

Plug, Water Tube (optional )

28

Kit, Propeller Nut (optional )

Kit, Propeller Nut (optional )

29

Seal Kit,gearcase (optional, Not Shown )

Seal Kit,gearcase (optional, Not Shown )

1

G-case & Brg/coro

G-case & Brg/coro

2

Bearing, Pinion

Bearing, Pinion

3

Trim Tab, 140 Coro

Trim Tab, 140 Coro

4

Соединение

Соединение

5

Anode, Gear Case

Anode, Gear Case

6

Уплотнение

Уплотнение

7

Plate, Exh Seal

Plate, Exh Seal

8

Болт М6x12

Болт М6x12

9

Bolt (8x22mm) (new P/n For 2004 )

Bolt (8x22mm) (new P/n For 2004 )

10

Bolt, (l55)

Bolt, (l55)

11

Bolt, 10x80

Bolt, 10x80

12

Washer, 6.5x15x1

Washer, 6.5x15x1

13

Gasket (washer) (010 Per Pack)

Gasket (washer) (010 Per Pack)

14

Штифт

Штифт

15

Plug, Drain, 10x7.5

Plug, Drain, 10x7.5

17

Ниппель

Ниппель

18

Tie Strap

Tie Strap

19

Prop, Sst 13-7/8x17 (stainless Steel (lh) )

Prop, Sst 13-7/8x17 (stainless Steel (lh) )

19

Prop, Ss Lh 19" (stainless Steel (lh) )

Prop, Ss Lh 19" (stainless Steel (lh) )

19

Prop, Sst 13-7/8x21 (stainless Steel (lh) )

Prop, Sst 13-7/8x21 (stainless Steel (lh) )

19

Prop, Ss Lh 23" (stainless Steel (lh) )

Prop, Ss Lh 23" (stainless Steel (lh) )

20

Bushing, Propeller

Bushing, Propeller

21

Prop Nut Spacer (new P/n For 2004 )

Prop Nut Spacer (new P/n For 2004 )

22

Stopper, Prop Bush

Stopper, Prop Bush

23

Гайка винта гребного

Гайка винта гребного

24

Шайба

Шайба

25

Cotter Pin (010 Per Pack)

Cotter Pin (010 Per Pack)

26

Plug, Water Tube (optional )

Plug, Water Tube (optional )

28

Kit, Propeller Nut (optional )

Kit, Propeller Nut (optional )

29

Seal Kit,gearcase (optional, Not Shown )

Seal Kit,gearcase (optional, Not Shown )
