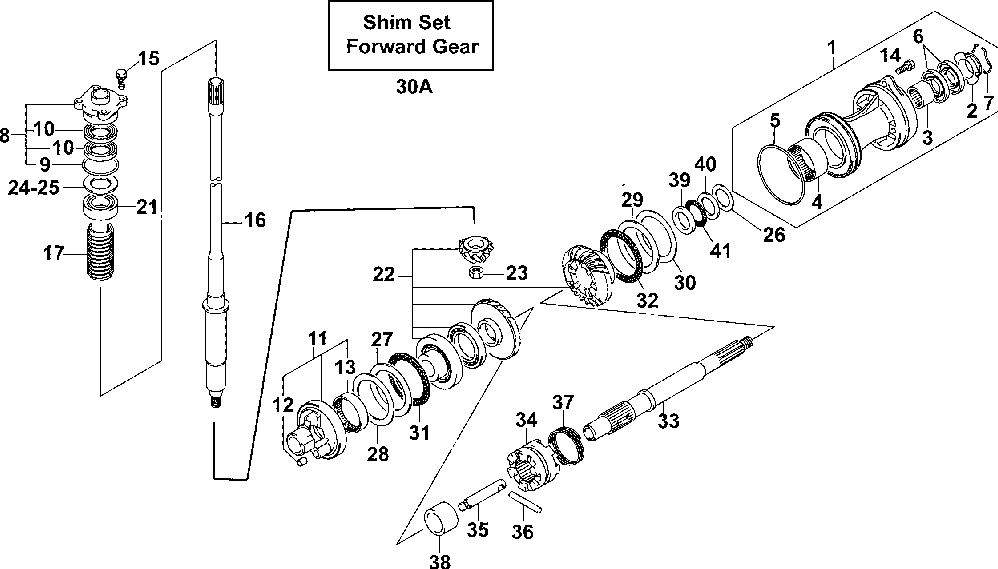

Gears, counter rotation

Johnson J140CX4SRC
Johnson
#oem кодцена
1
5034098
Housing Comp
2
5033947
Шайба
3
5033905
Bearing, 30x37x26
4
5033985
Роликовый подшипник
5
5032589
Кольцо уплотнительное
6
5033907
Сальник
7
5032592
СТОПОРНОЕ КОЛЬЦО
8
5033846
Housing Comp
9
5030542
Oring
10
5033612
Сальник
11
5034099
Кожух
12
5032549
Штифт
13
5034093
Подшипник
14
5031216
Болт
15
5030398
Bolt, 8x25
16
5034640
Shaft, Drive 25"t (new P/n For 2004 )
17
5032553
Collar, D'shaft
21
5030532
Taper Roller Brg (new P/n For 2004 )
22
5034100
Gr Set/fwd/pin/rev
23
5033966
Pinion Nut, 14mm (new P/n For 2004 )
24
5030975
Shim Set, Drive Sft
25
5030488
Shim, 41x52x0.6
25
5030489
Shim, 41x52x0.65
25
5030490
Shim, 41x52x0.7
25
5030491
Shim, 41x52x0.75
25
5030485
Shim, 40x52x0.8
25
5030492
Shim, 41x52x0.85
25
5030493
Shim, 41x52x0.9
25
5030494
Shim, 41x52x0.95
25
5030486
Shim, 40x52x1.0
25
5030495
Shim, 41x52x1.05
25
5030496
Shim, 41x52x1.1
25
5030497
Shim, 41x52x1.15
26
5034111
Washer,35x46x0.6 (propeller Shaft, Reverse Propeller Shaft, Reverse)
26
5034110
Washer,35x46x0.7 (propeller Shaft, Reverse )
26
5034109
Washer,35x46x0.8 (propeller Shaft, Reverse )
26
5034105
Washer,35x46x0.90 (propeller Shaft, Reverse )
26
5034106
Washer,35x46x0.95 (propeller Shaft, Reverse )
26
5034103
Washer,35x46x1.00 (propeller Shaft, Reverse )
26
5034107
Washer,35x46x1.05 (propeller Shaft, Reverse )
26
5034104
Washer,35x46x1.10 (propeller Shaft, Reverse )
26
5034108
Washer,35x46x1.15 (propeller Shaft, Reverse )
27
5034091
Washer, 60x85x3 (reverse Gear )
28
5034117
Washer, 60x85x0.8 (reverse Gear )
28
5034118
Washer, 60x85x0.9 (reverse Gear )
28
5034112
Washer, 60x85x1 (reverse Gear )
28
5034113
Washer, 60x85x1.1 (reverse Gear )
28
5034114
Washer, 60x85x1.2 (reverse Gear )
28
5034115
Washer, 60x85x1.3 (reverse Gear )
28
5034116
Washer, 60x85x1.4 (reverse Gear )
29
5034092
Washer, 70x95x3.7 (forward Gear )
30A
5033991
Shim Set, Forward (forward Gear )
30
5033978
Shim 70x95x0.6 (forward Gear )
30
5033979
Shim Forward Gear (forward Gear )
30
5033974
Shim 70x95x0.7 (forward Gear )
30
5033980
Shim Forward Gear (forward Gear )
30
5033975
Shim 70x95x0.8 (forward Gear )
30
5033981
Shim Forward Gear (forward Gear )
30
5033976
Shim 70x95x0.9 (forward Gear )
30
5033982
Shim Forward Gear (forward Gear )
30
5033977
Shim 70x95x1 (forward Gear )
31
5034119
Подшипник опорный
32
5033986
Thrust Bearing
33
5034101
Вал гребного винта
34
5033953
Shifter, Clutch Dog
35
5033855
Pin, Connector
36
5032584
Палец
37
5034145
Пружина
38
5034102
Проставка
39
5034089
Washer,30x47x6.0 (propeller Shaft, Reverse )
40
5034090
Washer,32x47x3.0 (propeller Shaft, Reverse )
41
5034094
Bearing,thrust (propeller Shaft, Reverse )
1
5034098
Housing Comp
2
5033947
Шайба
3
5033905
Bearing, 30x37x26
4
5033985
Роликовый подшипник
5
5032589
Уплотнительное кольцо
6
5033907
Сальник
7
5032592
СТОПОРНОЕ КОЛЬЦО
8
5033846
Housing Comp
9
5030542
Oring
10
5033612
Сальник
11
5034099
Кожух
12
5032549
Штифт
13
5034093
Подшипник
14
5031216
Болт
15
5030398
Bolt, 8x25
16
5034640
Shaft, Drive 25"t (new P/n For 2004 )
17
5032553
Collar, D'shaft
21
5030532
Taper Roller Brg (new P/n For 2004 )
22
5034100
Gr Set/fwd/pin/rev
23
5033966
Pinion Nut, 14mm (new P/n For 2004 )
24
5030975
Shim Set, Drive Sft
25
5030488
Shim, 41x52x0.6
25
5030489
Shim, 41x52x0.65
25
5030490
Shim, 41x52x0.7
25
5030491
Shim, 41x52x0.75
25
5030485
Shim, 40x52x0.8
25
5030492
Shim, 41x52x0.85
25
5030493
Shim, 41x52x0.9
25
5030494
Shim, 41x52x0.95
25
5030486
Shim, 40x52x1.0
25
5030495
Shim, 41x52x1.05
25
5030496
Shim, 41x52x1.1
25
5030497
Shim, 41x52x1.15
26
5034111
Washer,35x46x0.6 (propeller Shaft, Reverse Propeller Shaft, Reverse)
26
5034110
Washer,35x46x0.7 (propeller Shaft, Reverse )
26
5034109
Washer,35x46x0.8 (propeller Shaft, Reverse )
26
5034105
Washer,35x46x0.90 (propeller Shaft, Reverse )
26
5034106
Washer,35x46x0.95 (propeller Shaft, Reverse )
26
5034103
Washer,35x46x1.00 (propeller Shaft, Reverse )
26
5034107
Washer,35x46x1.05 (propeller Shaft, Reverse )
26
5034104
Washer,35x46x1.10 (propeller Shaft, Reverse )
26
5034108
Washer,35x46x1.15 (propeller Shaft, Reverse )
27
5034091
Washer, 60x85x3 (reverse Gear )
28
5034117
Washer, 60x85x0.8 (reverse Gear )
28
5034118
Washer, 60x85x0.9 (reverse Gear )
28
5034112
Washer, 60x85x1 (reverse Gear )
28
5034113
Washer, 60x85x1.1 (reverse Gear )
28
5034114
Washer, 60x85x1.2 (reverse Gear )
28
5034115
Washer, 60x85x1.3 (reverse Gear )
28
5034116
Washer, 60x85x1.4 (reverse Gear )
29
5034092
Washer, 70x95x3.7 (forward Gear )
30
5033978
Shim 70x95x0.6 (forward Gear )
30
5033979
Shim Forward Gear (forward Gear )
30
5033974
Shim 70x95x0.7 (forward Gear )
30
5033980
Shim Forward Gear (forward Gear )
30
5033975
Shim 70x95x0.8 (forward Gear )
30
5033981
Shim Forward Gear (forward Gear )
30
5033976
Shim 70x95x0.9 (forward Gear )
30
5033982
Shim Forward Gear (forward Gear )
30
5033977
Shim 70x95x1 (forward Gear )
31
5034119
Подшипник опорный
32
5033986
Thrust Bearing
33
5034101
Вал
34
5033953
Shifter, Clutch Dog
35
5033855
Pin, Connector
36
5032584
Палец
37
5034145
Пружина
38
5034102
Проставка
39
5034089
Washer,30x47x6.0 (propeller Shaft, Reverse )
40
5034090
Washer,32x47x3.0 (propeller Shaft, Reverse )
41
5034094
Bearing,thrust (propeller Shaft, Reverse )
30A
5033991
Shim Set, Forward (forward Gear )
