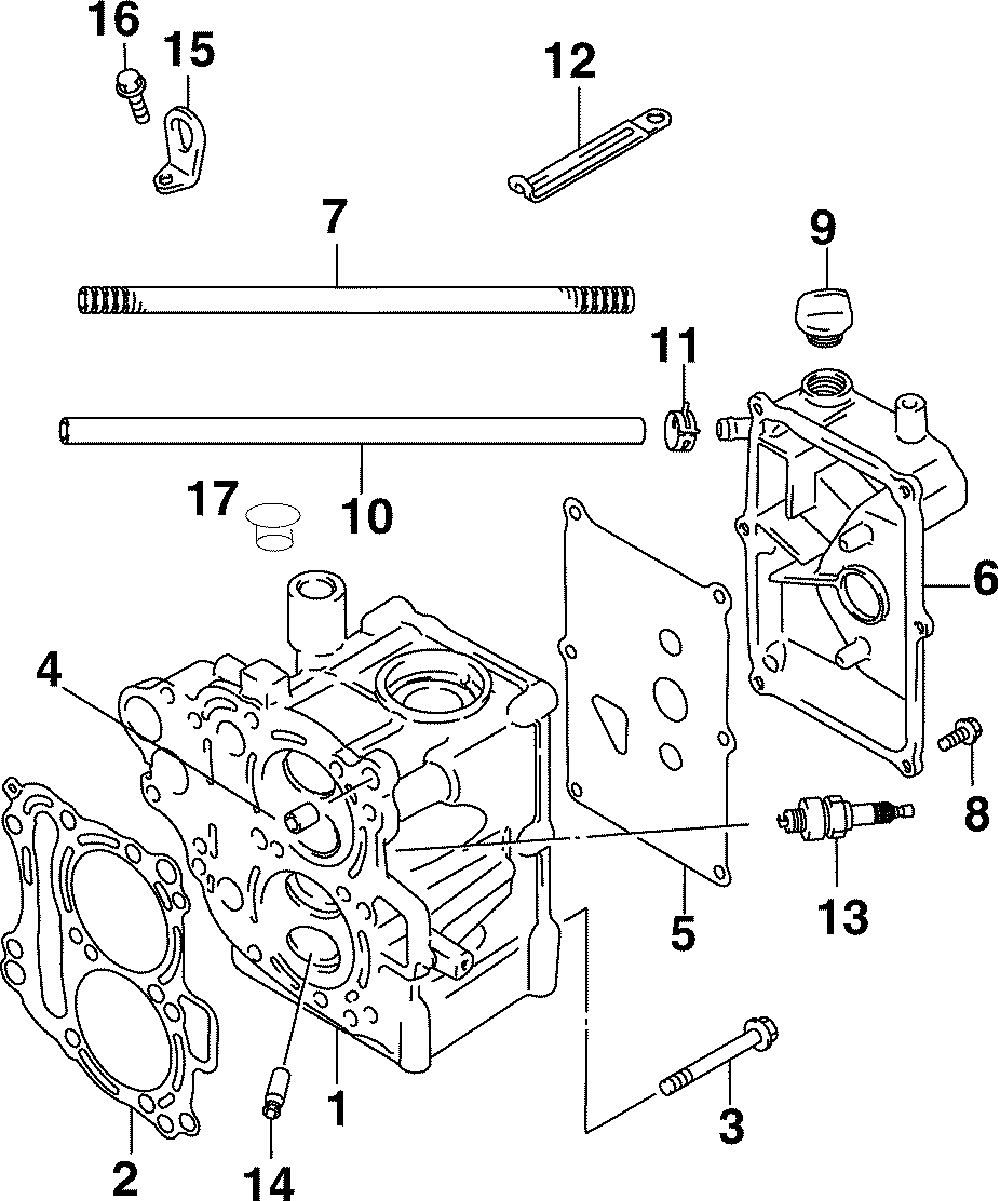

ГОЛОВКА ЦИЛИНДРА

Johnson J15RL4SR (R and F)
Johnson
#oem кодцена
1
5034456
Head, Cylinder (wh) (new P/n For 2004 )
1
5034457
Head, Cylinder (bl) (new P/n For 2004 )
2
5033046
Hd Gasket 9.9&15
3
5032765
Bolt, 8x65
4
5033288
Штифт
5
5036118
Прокладка
6
5032715
Cover, Cylinder Hd
6
5034036
Крышка
8
5030989
Болт
9
5032993
Plug Set
11
5033029
Зажим
12
5030588
Зажим
13
5031287
Ngk S/p - Dcpr6e
14
5033045
Guide, Valve Os:0.3 (optional )
15
5033048
Hook, Engine (optional )
16
5030994
Bolt (optional )
17
5035541
Plug (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
17
5034458
Крышка
1
5034456
Head, Cylinder (wh) (new P/n For 2004 )
1
5034457
Head, Cylinder (bl) (new P/n For 2004 )
2
5033046
Hd Gasket 9.9&15
3
5032765
Bolt, 8x65
4
5033288
Штифт
5
5036118
Прокладка
6
5032715
Cover, Cylinder Hd
6
5034036
Крышка
8
5030989
Болт
9
5032993
Plug Set
11
5033029
Зажим
13
5031287
Ngk S/p - Dcpr6e (010 Per Pack)
13
5031287
Ngk S/p - Dcpr6e (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. ) (010 Per Pack)
14
5033045
Guide, Valve Os:0.3 (optional )
15
5033048
Hook, Engine (optional )
16
5030994
Bolt (optional )
17
5035541
Plug (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
17
5034458
Крышка
