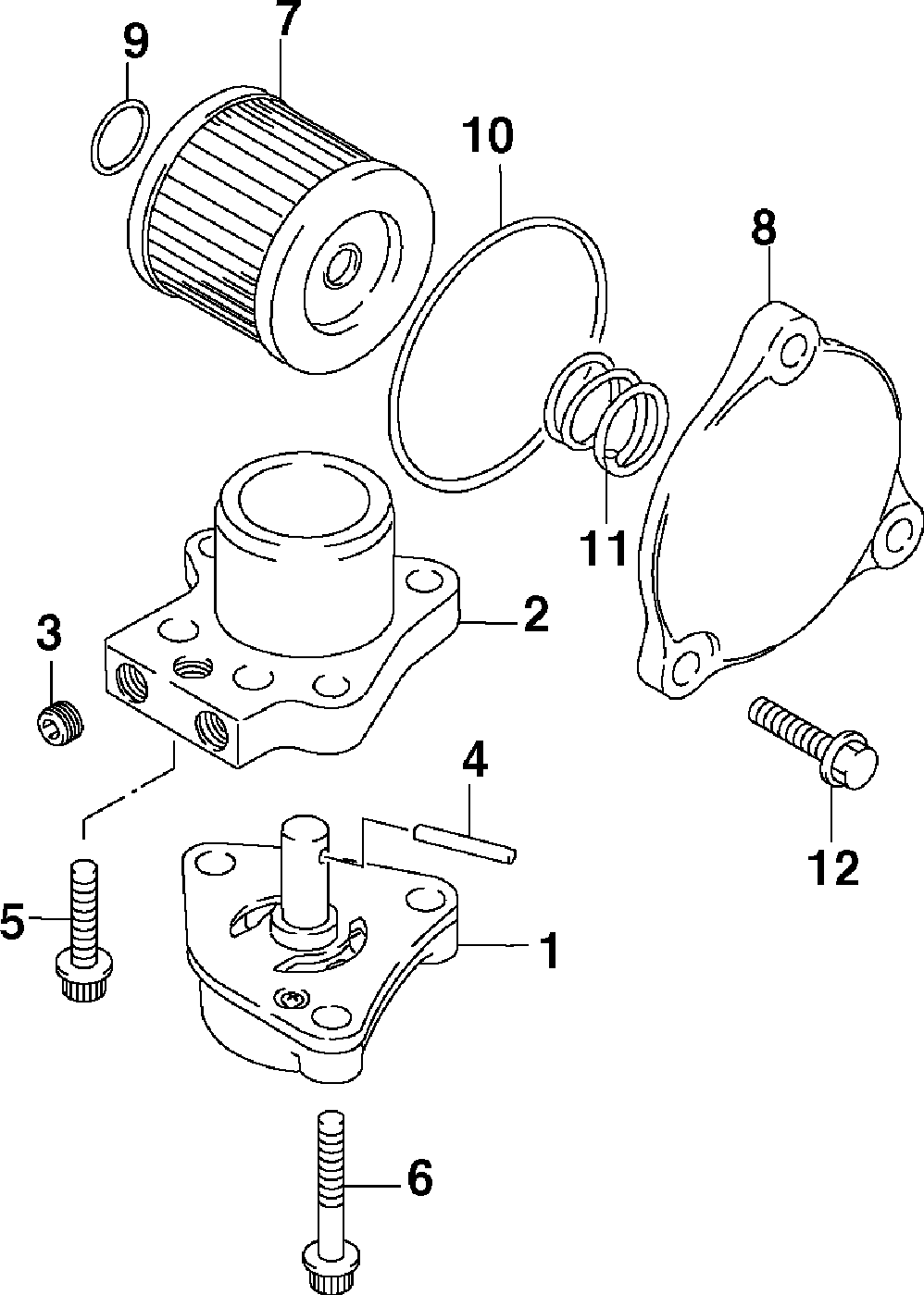

МАСЛЯНЫЙ НАСОС

Johnson J15TE4SR (R and F)
Johnson
#oem кодцена
1
5033099
МАСЛЯНЫЙ НАСОС
2
5033100
Block Assy, Oil
3
5030521
Заглушка
4
5033000
Pin, D:3, L:19.8
4
5035574
Pin (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
5
5033295
Болт
7
0763364
Oil Filter Element
8
5032721
Cap, Oil Filter ("white" Color Models )
8
5035575
Cap,oil (white) ("white" Color Models, 9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
8
5034040
Cap, Oil Filter ("blue" Color Models )
8
5035576
Cap,oil (blue) ("blue" Color Models, 9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
9
5033006
O Ring D:1.9 Id:13
10
5033009
O Ringd:2.4id:52.6
11
5033036
Пружина
12
5030000
Болт
1
5033099
МАСЛЯНЫЙ НАСОС
2
5033100
Block Assy, Oil
2
5033100
Block Assy, Oil (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
3
5030521
Заглушка
4
5033000
Pin, D:3, L:19.8
4
5035574
Pin (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
5
5033295
Болт
7
0763364
Oil Filter Element
8
5032721
Cap, Oil Filter ("white" Color Models )
8
5035575
Cap,oil (white) ("white" Color Models, 9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
8
5034040
Cap, Oil Filter ("blue" Color Models )
8
5035576
Cap,oil (blue) ("blue" Color Models, 9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
9
5033006
O Ring D:1.9 Id:13
10
5033009
Уплотнительное кольцо
11
5033036
Пружина
12
5030000
Болт
