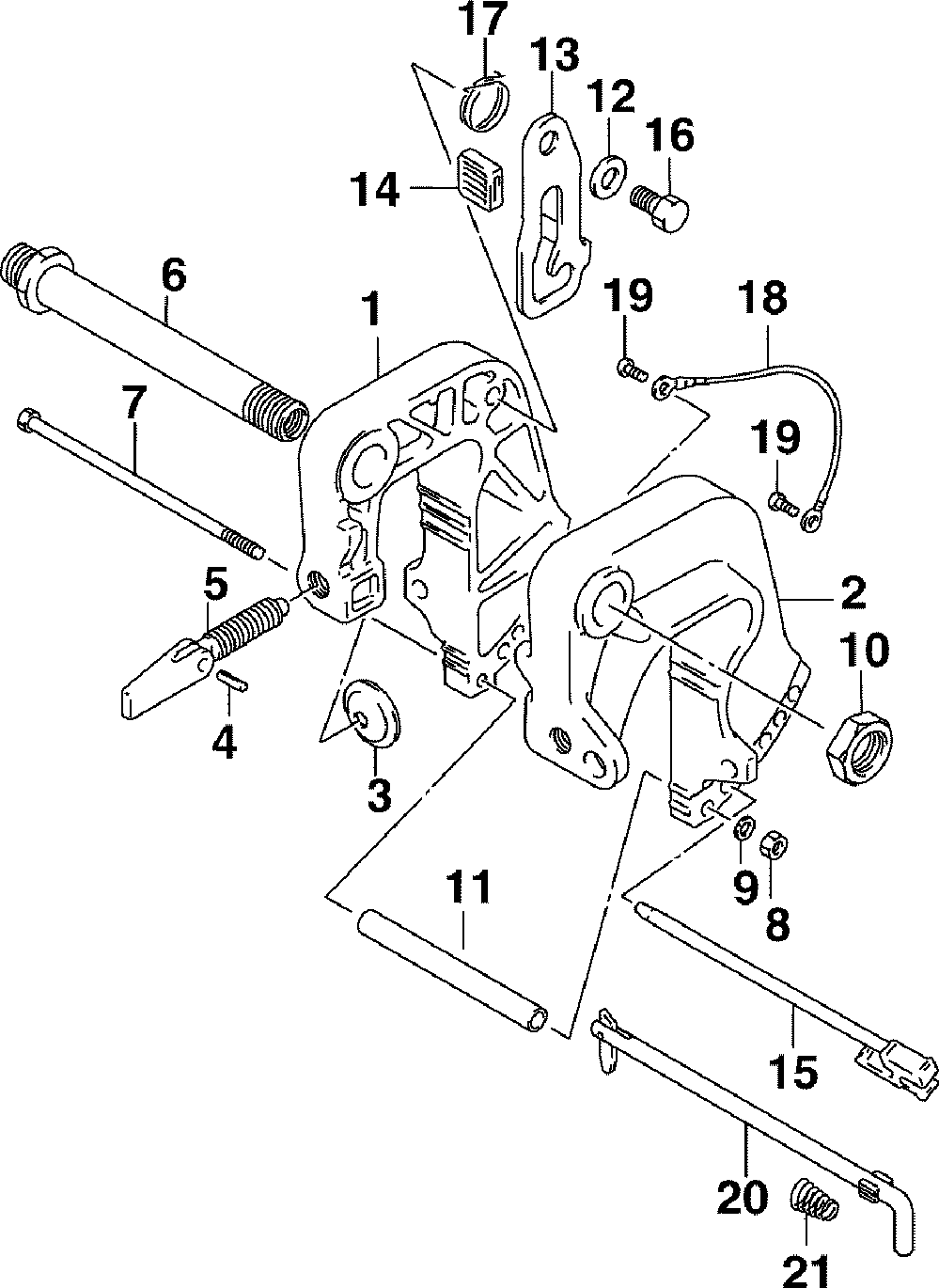

Струбцина

Johnson J15TE4SR (R and F)
Johnson
#oem кодцена
1
5032733
Bracket, Clamp Stbd
1
5034592
Brkt, Clamp Stbd-bl
2
5032734
Bracket, Clamp Port
2
5034593
Bracket, Clamp Port
3
5030234
Пластина
4
5031865
Spring Pin, 6x25
5
5033164
Screw Assy, Clamp (optional )
6
5035586
Tube, Tilt
6
5035587
Tube, Tilt
7
5030026
Болт
8
5030051
Гайка
8
5035581
Nut (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
9
5030068
Шайба-замок
10
5032820
Гайка
11
5032262
Spacer, Stern Brkts
12
5030057
Шайба
13
5033165
Arm, Tilt Lock
14
5030844
Rubber, Tilt Lk Arm
15
5034242
Tilt Pin&spring Ay
16
5031819
Bolt, 10x20.4
17
5033040
Пружина
17
5035589
Spring (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
18
5030821
Lead, L: 165
19
5030407
Screw, 5x8
20
5034240
Pin, Tilt Lock (optional )
21
5034241
Spring, Tilt Lock (optional )
