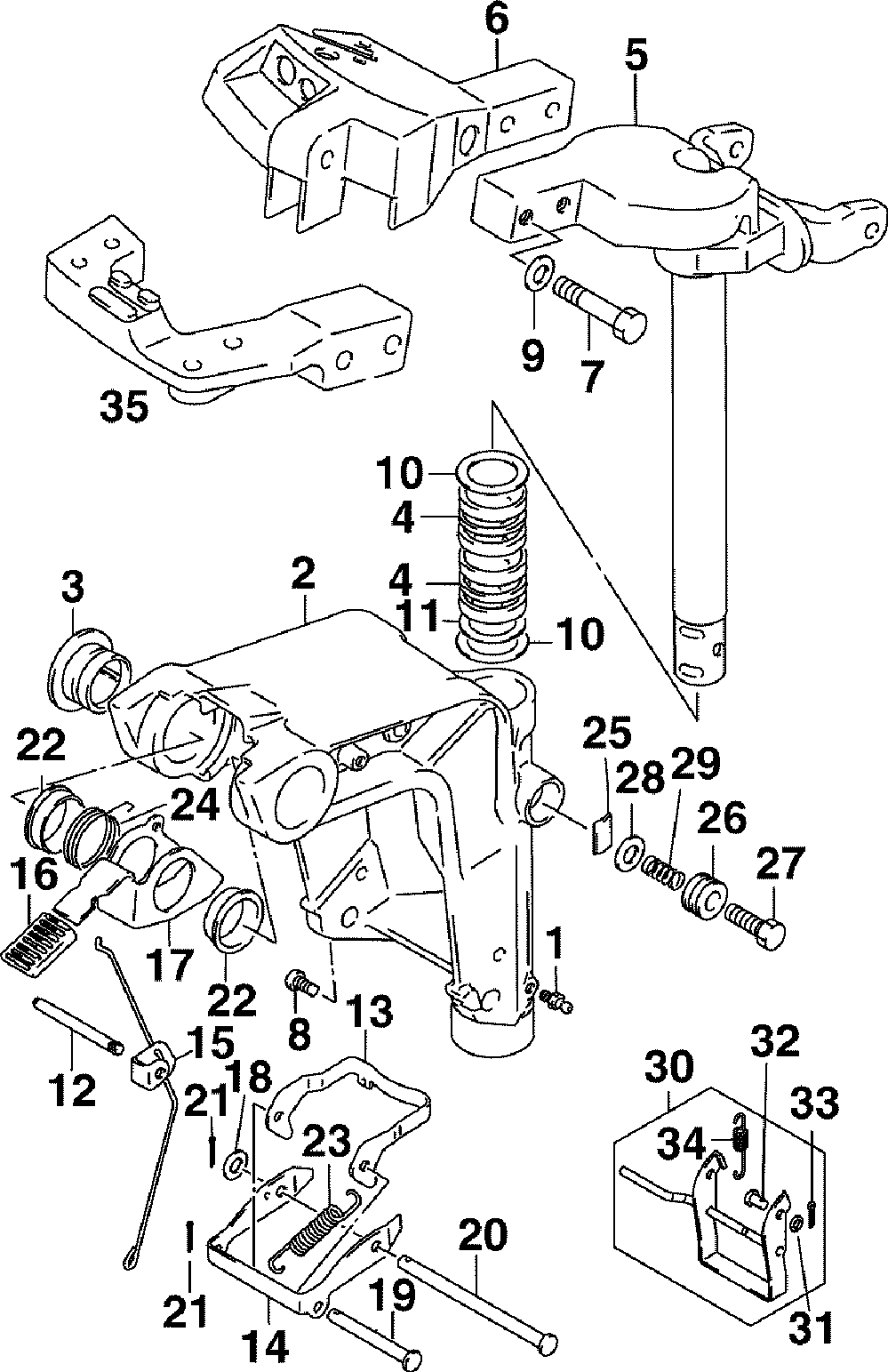

ПОВОРОТНЫЙ КРОНШТЕЙН

Johnson J15TE4SR (R and F)
Johnson
#oem кодцена
1
5030207
Ниппель
2
5032735
Bracket, Swivel ("white" Color Models )
2
5034043
Bracket, Swivel ("blue" Color Models )
3
5032058
Bush, Shaft Swivel
4
5033170
Bush Steering
5
5034468
Steering Bracket ("white" Color Models, New P/n For 2004 )
5
5034469
Steering Bracket ("blue" Color Models, New P/n For 2004 )
6
5032737
Bracket, Handle ("white" Color Models )
6
5034045
Bracket, Handle ("blue" Color Models )
7
5032761
Болт
8
5030409
Screw, 6x10
9
5030433
Washer, 8.5x16x1.2
10
5032974
Washer, 27.5x47x2.0
11
5033008
O Ringd:3.1id:26.2
12
5033166
Pin, Tilt Lock
13
5033172
Arm, Reverse Lock
14
5033173
Link Reverse Lock
15
5033174
Link Reverse
16
5033175
Опора
17
5033176
Lever, Release
18
5030429
Шайба
19
5032990
Штифт
20
5032991
Pin(sus)
21
5030086
Шплинт
21
5035590
Pin, Cotter (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
22
5033016
Втулка
23
5034243
Spring, Rev. Lock
24
5033041
Пружина
24
5035591
Spring (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
25
5033169
Adjuster Steering
26
5031499
Крышка
26
5035592
Cover (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
27
5032760
Bolt, 8x30
29
5031284
Пружина
29
5035593
Spring (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
30
5033177
Shallow Drive Assy
32
5032992
Shaft, Shallow
33
5030512
Штифт
34
5033038
Пружина
35
5034076
Ctrl Cbl Holder (j10el4src Model Only )
1
5030207
Ниппель
2
5032735
Bracket, Swivel ("white" Color Models )
2
5034043
Bracket, Swivel ("blue" Color Models )
3
5032058
Bush, Shaft Swivel
4
5033170
Bush Steering
5
5034468
Steering Bracket ("white" Color Models, New P/n For 2004 )
5
5034469
Steering Bracket ("blue" Color Models, New P/n For 2004 )
6
5032737
Bracket, Handle ("white" Color Models )
6
5034045
Bracket, Handle ("blue" Color Models )
7
5032761
Болт
8
5030409
Screw, 6x10
9
5030433
Washer, 8.5x16x1.2
10
5032974
Washer, 27.5x47x2.0
11
5033008
O Ringd:3.1id:26.2
12
5033166
Pin, Tilt Lock
13
5033172
Arm, Reverse Lock
14
5033173
Link Reverse Lock
15
5033174
Link Reverse
16
5033175
Опора
17
5033176
Lever, Release
18
5030429
Шайба
19
5032990
Штифт
20
5032991
Pin(sus)
21
5030086
Шплинт
21
5035590
Pin, Cotter (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
22
5033016
Втулка
23
5034243
Spring, Rev. Lock
24
5033041
Пружина
24
5035591
Spring (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
25
5033169
Adjuster Steering
26
5031499
Крышка
26
5035592
Cover (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
27
5032760
Bolt, 8x30
28
5030433
Washer, 8.5x16x1.2
29
5031284
Пружина
29
5035593
Spring (9.9 Hp Serial Number 22030001 And Above. 15 Hp Serial Number 23030001 And Above. )
30
5033177
Shallow Drive Assy
31
5030429
Шайба
32
5032992
Shaft, Shallow
33
5030512
Штифт
34
5033038
Пружина
35
5034076
Ctrl Cbl Holder (j10el4src Model Only )
