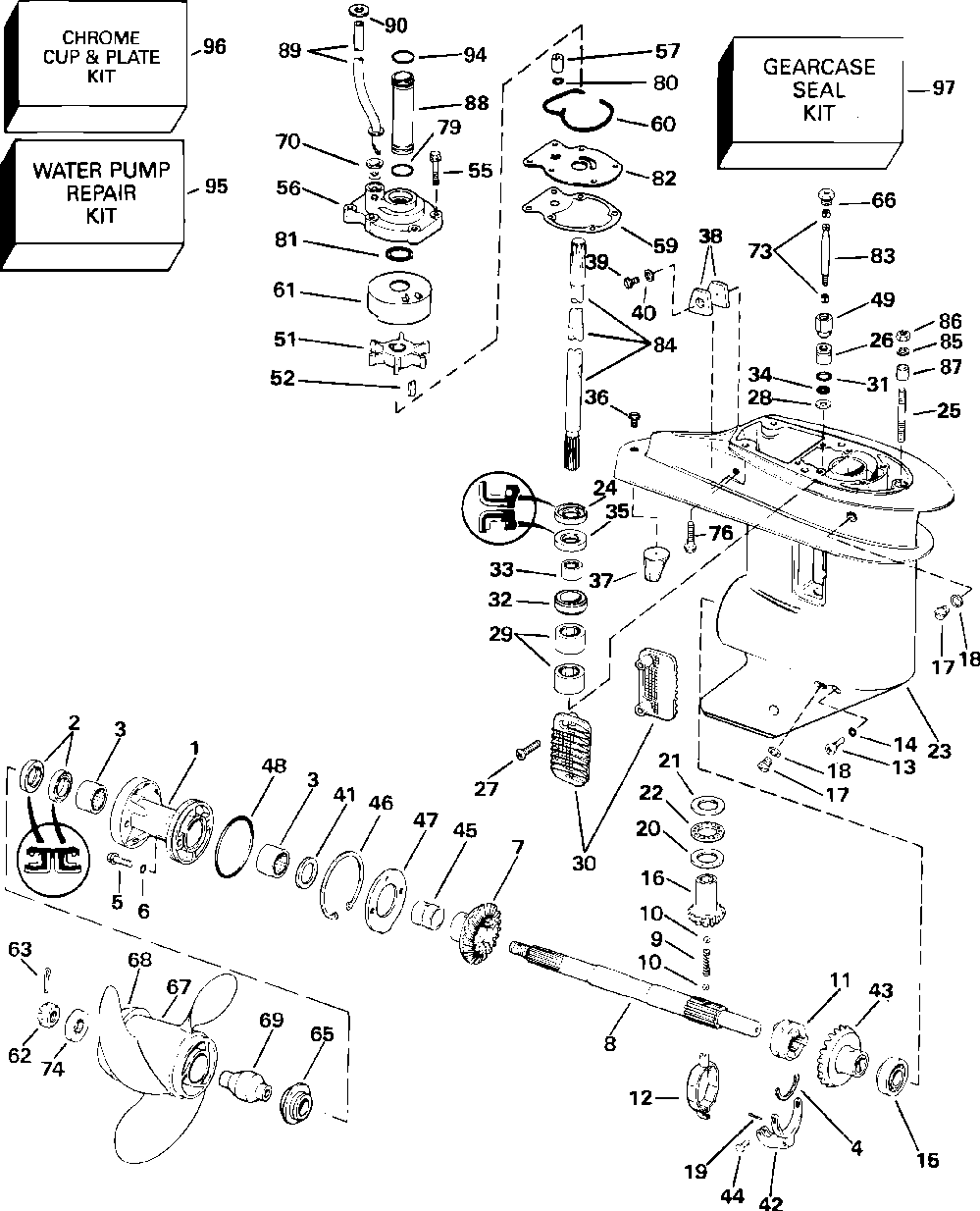

Редуктор

Johnson J30MLSRC
Johnson
#oem кодцена
5005697
G-case Ay,less D/s (not Shown, New P/n For 2004 )
1
0433428
Корпус
2
0321453
Oil Seal (contents Of Gearcase Seal Kit )
3
0437288
Подшипник игольчатый
4
0328311
Зажим
5
0319743
Sst Screw
6
0332584
Шайба
7
0327655
Gear Rev
8
0439143
Вал гребново винта
9
0327070
Пружина
10
0316506
Шарик фиксирующий
11
0337020
Рычаг переключения
12
0390023
Yoke & Connector
13
0308376
Винт
15
0386186
Roller Brg Ay
16
0351147
Gear, Pinion (new P/n For 2004 )
17
0307551
Drain Fill Plg 10p (contents Of Gearcase Seal Kit )
18
0311598
Шайба
19
0303049
Шплинт
20
0330441
Упорная шайба
21
0327716
Thrust Washer-upr
22
0388027
Thrust Brg Ay
23
0434030
Kit, G-case Hsg
24
0332261
Oil Retainer (contents Of Gearcase Seal Kit )
25
0320173
Ff Stud
26
0326361
Втулка
27
0325539
Винт
28
0321738
Washer (contents Of Gearcase Seal Kit )
30
0336206
Screen, Water Inlet
31
0303347
O Ring (contents Of Gearcase Seal Kit )
32
0322018
Bearing Hsg Dshaft
33
0386473
Подшипник
34
0301877
O Ring (contents Of Gearcase Seal Kit )
35
0321928
Oil Ret Brg Hsg Ds (contents Of Gearcase Seal Kit )
36
0329217
Винт
37
5007651
Kit Ay, Trim Tab
38
5007582
Kit Ay, Anode
39
0333677
Винт
40
0304454
Стопорная шайба
41
0319684
Ff Thrust Washer
42
0337019
Рычаг
43
0392475
Gear & Bushing, Fwd
44
0302504
Штифт
45
0319635
Ff Bushing Rev Gr
46
0319747
Ff Retaining Ring
47
0319746
Ff Retainer Plate
48
0338518
O-ring (contents Of Gearcase Seal Kit )
49
0331465
Nut, Shift Connctr
51
0395289
Imp & Key (contents Of Water Pump Repair Kit )
52
0344470
Key, Impeller-blk (contents Of Water Pump Repair Kit )
55
0328725
Screw (contents Of Water Pump Repair Kit )
56
0393632
Imp Hsg & Bush Ay (contents Of Water Pump Repair Kit )
57
0328754
Втулка
59
0325537
Gasket (contents Of Gearcase Seal Kit, Contents Of Water Pump Repair Kit )
60
0328753
Seal (contents Of Gearcase Seal Kit, Contents Of Water Pump Repair Kit )
61
0328773
Cup-chrome (optional )
61
0328751
Cup (contents Of Water Pump Repair Kit )
62
0319891
Ff Prop Nut
63
0320785
Ff Cotter Pin 5pk
65
0335420
Bushing, Thrust
66
0325624
Connctr, Shft Rod
68
0332542
Converging Ring
69
0392881
Bushing Ay (optional )
69
0386638
Prop Hub 35 Hp (optional )
70
0302497
Grommet (contents Of Water Pump Repair Kit )
73
0325625
Keeper
74
0323943
Spacer Prop Nut
76
0328333
Винт
81
0554545
O Ring (contents Of Gearcase Seal Kit, Contents Of Water Pump Repair Kit )
82
0328772
Plate (optional )
82
0328755
Plate (contents Of Water Pump Repair Kit )
83
0331479
Shift Rod-lower
0325541
Shift Rod-lng (not Shown )
84
0341637
Driveshaft, 20"
85
0306470
Lockwasher (optional )
86
0306422
Nut (optional )
87
0319785
Bushing (optional )
88
0326693
Spacer, Long
89
0395340
Wtr Tube Ay
90
0330658
Шайба
94
0311338
O Ring (contents Of Gearcase Seal Kit, Contents Of Water Pump Repair Kit )
0325975
Rubber Mount (not Shown )
0325974
Rubber Mount (not Shown )
0330621
Gasket (optional, Not Shown )
95
0393630
Wtr Pump Kit
96
0394415
Chrome Pump Kit (optional )
97
0396351
Комплект сальников редуктора
