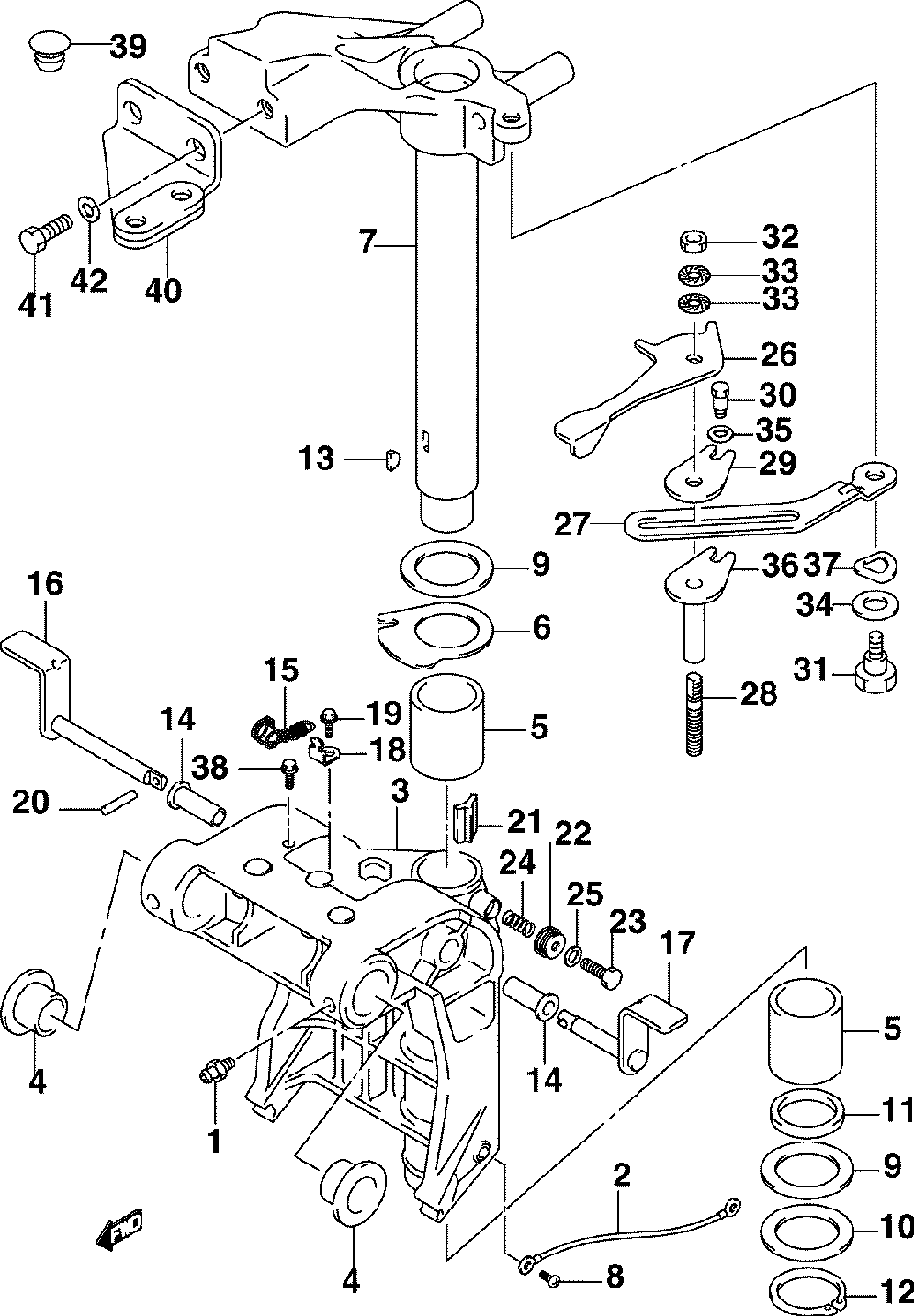

ПОВОРОТНЫЙ КРОНШТЕЙН

Johnson J30PL4SRS, J30TEL4SRS
Johnson
#oem кодцена
1
5030207
Ниппель
2
5030821
Lead, L: 165
3
5034691
Bracket, Swivel
4
5032058
Bush, Shaft Swivel
5
5032064
Bush, Steering
6
5032352
Plate, Steer-upper
7
5034692
Кронштейн
8
5030407
Screw, 5x8
9
5031851
Washer, 39.5x64x1.0
10
5032353
Шайба
11
5030548
Сальник
12
5030572
СТОПОРНОЕ КОЛЬЦО
13
5031907
Шпонка
14
5031491
Втулка
15
5031492
Пружина
16
5034248
Lever, Tilt Lock-st
17
5034249
Lever, Tilt Lock-pt
18
5032069
Plate, Shal Wtr Dr
19
5030035
Болт 6x15
20
5031249
Пружинный Штифт
21
5032354
Adjuster, Steering
22
5031499
Крышка
23
5032355
Bolt (8x27)
24
5031284
Пружина
25
5030433
Washer, 8.5x16x1.2
26
5034693
Adjuster, Steering (tel Models )
27
5032061
Plate, Steering Adj (tel Models )
28
5034694
Shaft (tel Models )
29
5034695
Actuator (tel Models )
30
5031817
Bolt, 6x17 (tel Models )
31
5031819
Bolt, 10x20.4 (tel Models )
32
5034696
Nut (tel Models )
33
5034697
Washer (tel Models )
34
5030063
Washer, 12.5x23x1 (tel Models )
35
5030429
Washer (tel Models )
36
5034698
Plate (tel Models )
37
5031858
Washer, Wave (tel Models )
38
5031821
Bolt, 6x12 (pl Models )
39
5034699
Plug (pl Models )
40
5032188
Attach, Strg Brkt (pl Models )
41
5032177
Bolt, 10x25 (pl Models )
42
5031611
Washer (pl Models )
