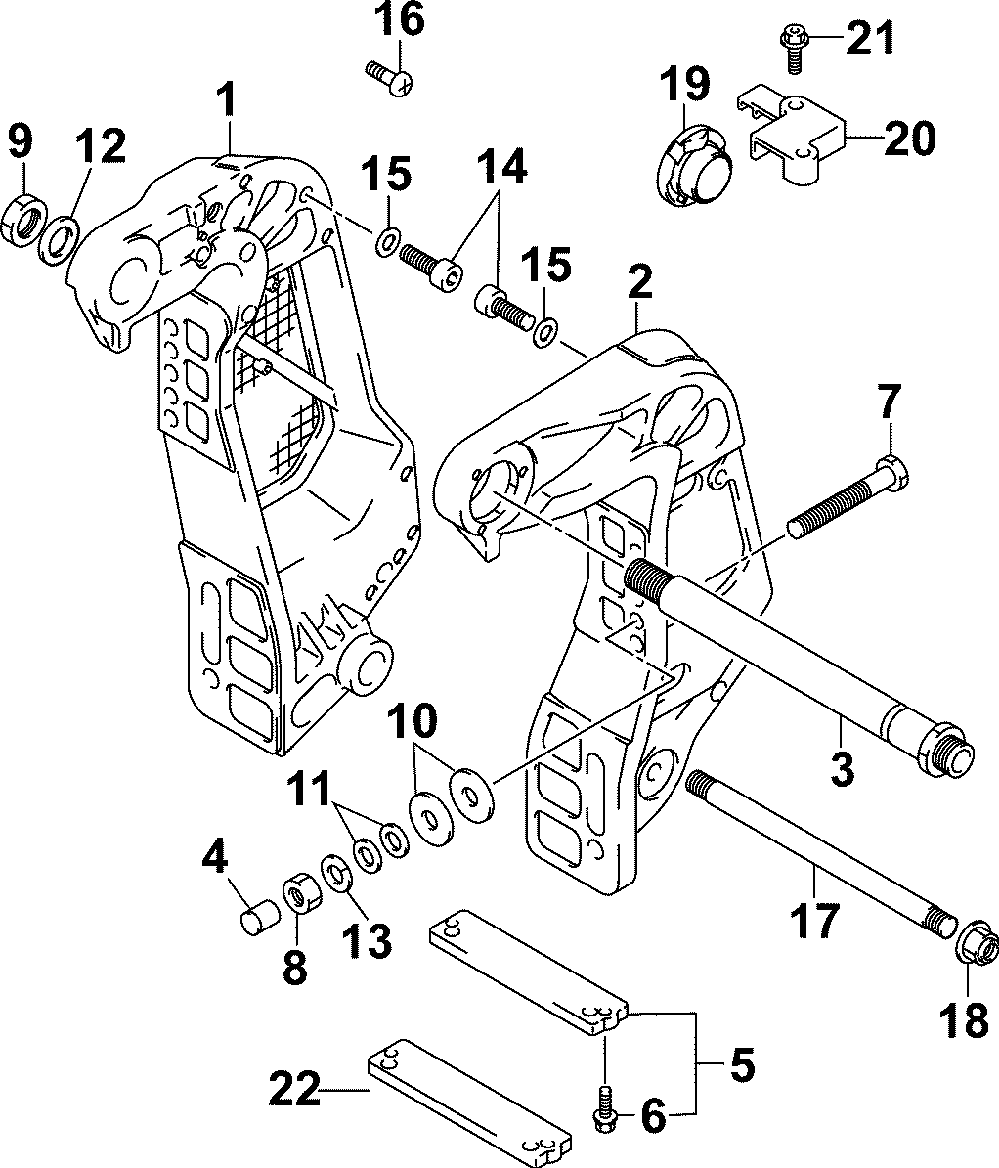

Струбцина

Johnson J90PX4SRC
Johnson
#oem кодцена
1
5034519
Bracket, Clamp Stbd (new P/n For 2004 )
2
5034520
Bracket, Clamp Port (new P/n For 2004 )
3
5034521
Shaft (new P/n For 2004 )
4
5030839
Cap, Transom Bolt
5
5030907
Anode Set, Clp Brkt
6
5030391
Болт 6x25
7
5030386
Bolt, 12x115mm
7
5036557
Bolt & Nut Ay (optional )
8
5030418
Гайка 12mm
9
5032820
Гайка
10
5030436
Washer, 12.5x35x3.2
11
5030438
Washer, 12.5x22x2.5
12
5031846
Washer, 22.5x38x1.0
13
5030462
Шайба
14
5030388
Болт
15
5030057
Шайба
16
5030409
Screw, 6x10
17
5033839
Pin, Tilt Lock (optional )
18
5030426
Nut, 14mm (optional )
19
5034523
Cam Ay, Tilt Switch (new P/n For 2004 )
20
5034524
Holder (new P/n For 2004 )
21
5033965
Bolt, 6x20 (new P/n For 2004 )
22
5034522
Anode (new P/n For 2004 )
1
5037197
Bracket, Clamp Stbd (new P/n For 2004 )
2
5034520
Bracket, Clamp Port (new P/n For 2004 )
3
5036608
Shaft, Clamp Brkt (new P/n For 2004 )
4
5030839
Cap, Transom Bolt
5
5030907
Anode Set, Clp Brkt
6
5030391
Болт 6x25
7
5036599
Болт
7
5036557
Bolt & Nut Ay (optional )
8
5030418
Гайка 12mm
9
5032820
Гайка
10
5030436
Washer, 12.5x35x3.2
11
5030438
Washer, 12.5x22x2.5
12
5031846
Washer, 22.5x38x1.0
13
5030462
Шайба
14
5030388
Болт
15
5030057
Шайба
16
5030409
Screw, 6x10
17
5033839
Pin, Tilt Lock (optional )
18
5030426
Nut, 14mm (optional )
19
5034523
Cam Ay, Tilt Switch (new P/n For 2004 )
20
5034524
Holder (new P/n For 2004 )
21
5033965
Bolt, 6x20 (new P/n For 2004 )
22
5034522
Anode (new P/n For 2004 )
