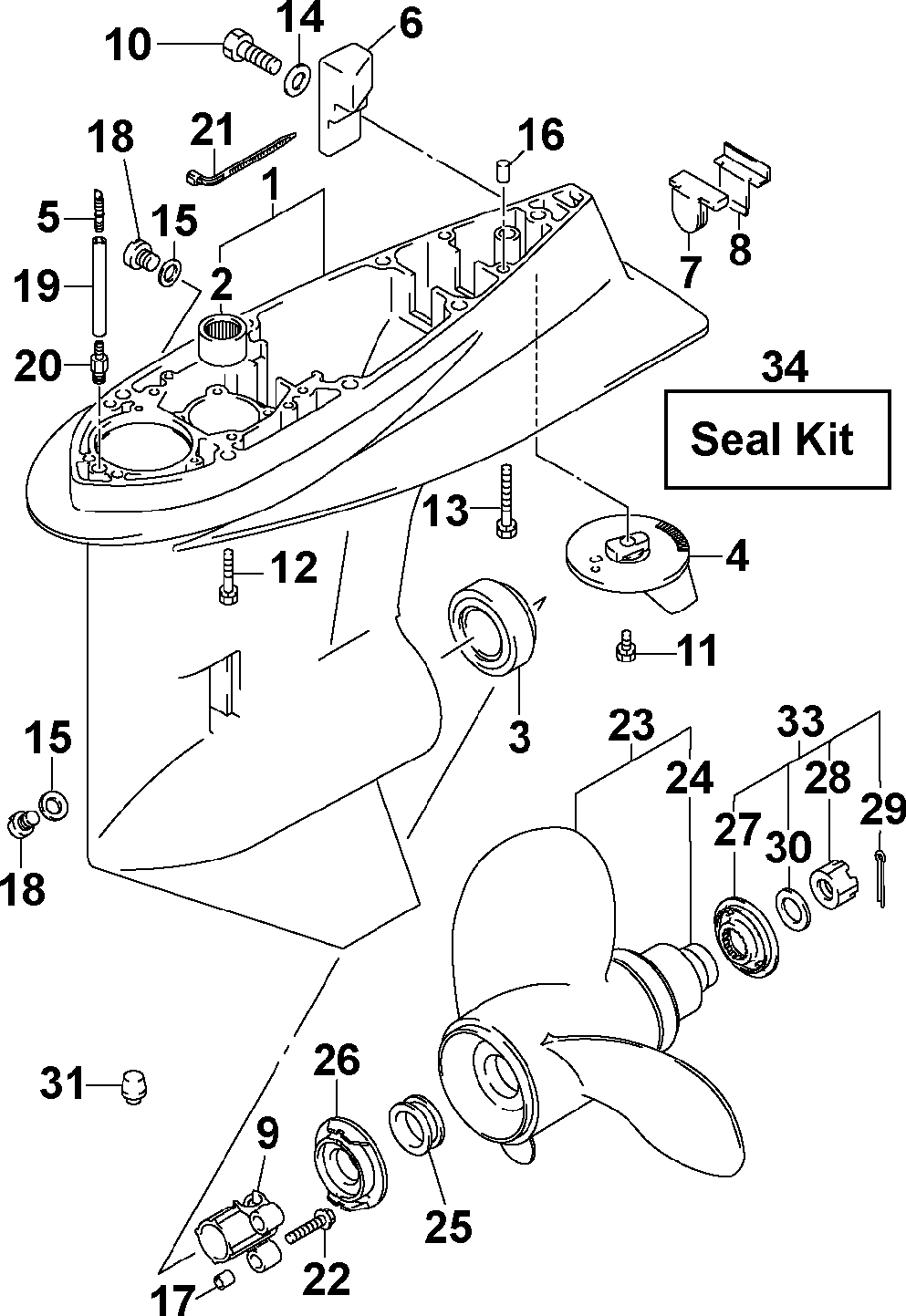

Редуктор

Johnson J115PX4STS
Johnson
#oem кодцена
1
5036614
G-case&brg, 60-115
2
5032541
Bearing, Pinion
3
5032882
Подшипник
4
5032929
Trim Tab 60-140std
5
5030906
Соединение
6
5032930
Anode, Gear Case
7
5037215
Уплотнение
8
5032545
Plate, Exh Seal
9
5033847
Housing, Shift Cam
10
5030338
Болт М6x12
11
5034400
Болт (8x22mm)
12
5034788
Bolt, (l55)
13
5030401
Bolt, 10x80
14
5030430
Washer, 6.5x15x1
15
5030071
Fill Plug Washer
16
5030511
Штифт
17
5032549
Штифт
18
5030094
Plug, Drain, 10x7.5
19
5033622
Hose, 4x8x2000
20
5030568
Ниппель
21
5031118
Tie Strap
22
5030990
Болт
23
5033322
Prop,al 13-1/2x15 (optional, Aluminum (rh) )
23
5033323
Prop, Al 14x17 (optional, Aluminum (rh) )
23
5033324
Prop,al 14x19 (optional, Aluminum (rh) )
23
5033325
Prop, Al 14x21 (optional, Aluminum (rh) )
23
5033326
Prop, Al 14x23 (optional, Aluminum (rh) )
23
0777024
Prop,sst 13-7/8x17 (optional, Stainless Steel (rh) )
23
0777025
Prop,sst 13-7/8x19 (optional, Stainless Steel (rh) )
23
0777026
Prop,sst 13-7/8x21 (optional, Stainless Steel (rh) )
23
0777027
Prop, Ss Rh 23" (optional, Stainless Steel (rh) )
23
0777028
Prop, Ss Rh 25" (optional, Stainless Steel (rh) )
24
5033992
Bushing, Propeller
25
5033856
Проставка
26
5033567
Stopper, Prop Bush
27
5034638
Prop Nut Spacer
28
5030422
Гайка винта гребного
29
5030087
Шплинт
30
5030441
Шайба
31
5032685
Plug, Water Tube
33
5033854
Kit, Propeller Nut
34
5033798
Sealing Kit
1
5036614
G-case&brg, 60-115
2
5032541
Bearing, Pinion
3
5032882
Подшипник
4
5032929
Trim Tab 60-140std
5
5030906
Соединение
6
5032930
Anode, Gear Case
7
5037215
Уплотнение
8
5032545
Plate, Exh Seal
9
5033847
Housing, Shift Cam
10
5030338
Болт М6x12
11
5034400
Болт (8x22mm)
12
5034788
Bolt, (l55)
13
5030401
Bolt, 10x80
14
5030430
Washer, 6.5x15x1
15
5030071
Gasket (washer) (010 Per Pack)
16
5030511
Штифт
17
5032549
Штифт
18
5030094
Plug, Drain, 10x7.5
19
5033622
Hose, 4x8x2000
20
5030568
Ниппель
21
5031118
Tie Strap
22
5030990
Болт
23
5033322
Prop,al 13-1/2x15 (optional, Aluminum (rh) )
23
5033323
Prop, Al 14x17 (optional, Aluminum (rh) )
23
5033324
Prop,al 14x19 (optional, Aluminum (rh) )
23
5033325
Prop, Al 14x21 (optional, Aluminum (rh) )
23
5033326
Prop, Al 14x23 (optional, Aluminum (rh) )
23
0777024
Prop,sst 13-7/8x17 (optional, Stainless Steel (rh) )
23
0777025
Prop,sst 13-7/8x19 (optional, Stainless Steel (rh) )
23
0777026
Prop,sst 13-7/8x21 (optional, Stainless Steel (rh) )
23
0777027
Prop, Ss Rh 23" (optional, Stainless Steel (rh) )
23
0777028
Prop, Ss Rh 25" (optional, Stainless Steel (rh) )
24
5033992
Bushing, Propeller
25
5033856
Проставка
26
5033567
Stopper, Prop Bush
27
5034638
Prop Nut Spacer
28
5030422
Гайка винта гребного
29
5030087
Cotter Pin (010 Per Pack)
30
5030441
Шайба
31
5032685
Plug, Water Tube
33
5033854
Kit, Propeller Nut
34
5033798
Sealing Kit
