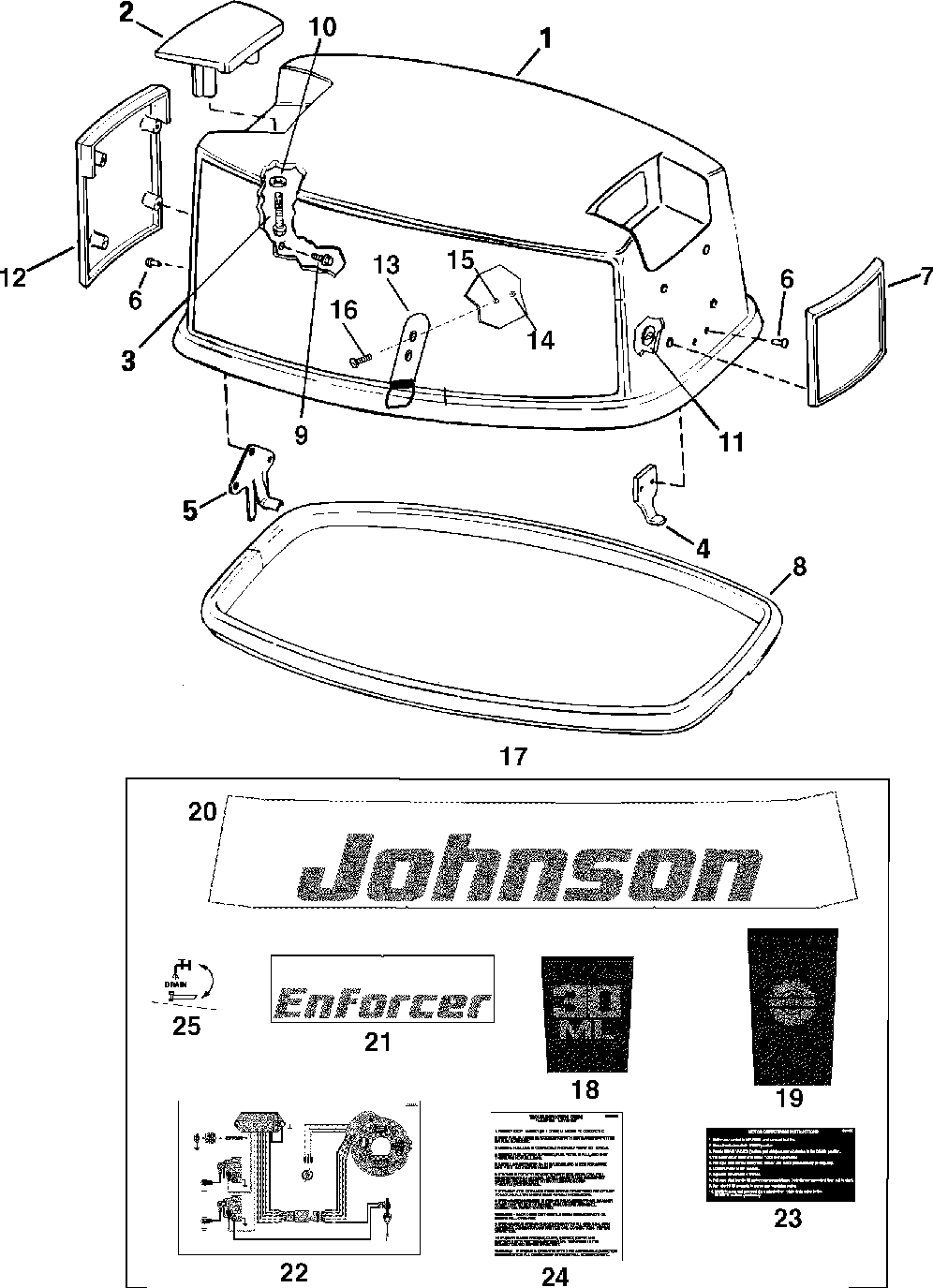

Engine cover & decals

Johnson J30MLSTS
Johnson
#oem кодцена
1
5005396
Umc-30hp Military (important: When Ordering "engine Cover Assy" Also Order "decal Set", New P/n For 2003 )
2
0208399
Ручка наклона
3
0330838
Винт
4
0207482
Hook Front Mtr Cvr
5
0329635
Hook-motor Cover
6
0554355
Заклёпка
7
0335032
Рама
8
0316225
Seal Mtr Cvr, Blk
9
0334528
Винт
10
0202150
Шайба
12
0335041
Рама
13
0351007
Retainer (new P/n For 2003 )
14
0313022
Nut (new P/n For 2003 )
15
0328702
Washer (new P/n For 2003 )
16
0343505
Screw (new P/n For 2003 )
17
5005519
Set Ay, Decal (new P/n For 2003 )
18
0350381
Plate, "30 Ml" (new P/n For 2003 )
19
0350386
Plate, Sprocket (new P/n For 2003 )
20
0350387
Decal, "johnson" (new P/n For 2003 )
21
0350388
Decal, "enforcer" (new P/n For 2003 )
1
5005396
Umc-30hp Mltry,blk (important: When Ordering "engine Cover Assy" Also Order "decal Set", New P/n For 2003 )
2
0208399
Ручка наклона
3
0330838
Screw (005 Per Pack)
4
0207482
Hook Front Mtr Cvr
5
0329635
Hook-motor Cover
6
0554355
Заклёпка
7
0335032
Рама
8
0316225
Seal Mtr Cvr, Blk
9
0334528
Винт
11
0765406
Nut, Push On
12
0335041
Рама
13
0351007
Retainer (new P/n For 2003 )
14
0313022
Nut (new P/n For 2003 )
15
0328702
Washer (new P/n For 2003 )
16
0343505
Screw (new P/n For 2003 )
17
5005519
Set Ay, Decal (new P/n For 2003 )
18
0350381
Plate, "30 Ml" (new P/n For 2003 )
19
0350386
Plate, Sprocket (new P/n For 2003 )
20
0350387
Decal, "johnson" (new P/n For 2003 )
