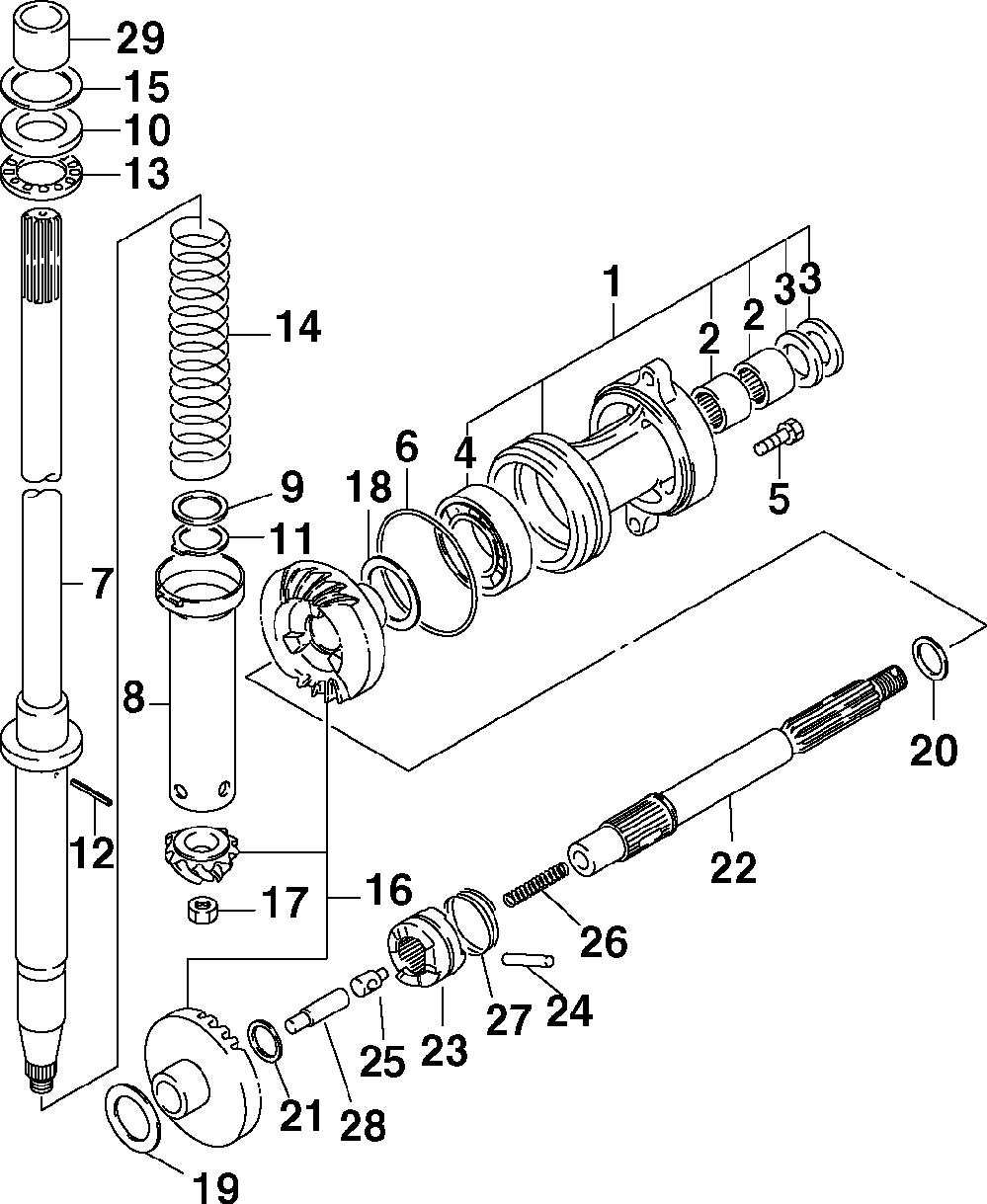

ТРАНСМИССИЯ

Johnson J40PL4STC
Johnson
#oem кодцена
1
5032801
Housing, Propshaft
2
5031255
Подшипник
3
5031270
Seal, Oil ((included In Gearcase Seal Kit P/n 5031456.) )
4
5033253
Bearing, Side-diff (new P/n For 2003 )
5
5031216
Болт
6
5031263
O-ring ((included In Gearcase Seal Kit P/n 5031456.) )
7
5032840
Driveshaft Ay
8
5031544
Кожух
9
5030443
Washer, 24x33x2.5
10
5031232
Шайба
11
5031233
Шайба
12
5031250
Штифт
13
5031258
Подшипник
14
5031285
Пружина
15
5031237
Shim ((driveshaft.) )
15
5031238
Shim ((driveshaft.) )
15
5031239
Shim ((driveshaft.) )
15
5031240
Shim ((driveshaft.) )
15
5031241
Shim ((driveshaft.) )
16
5031545
Gr Set, Fwd/pin/rev
17
5030421
Гайка
18
5031242
Shim ((reverse Gear Thrust.) )
18
5031695
Shim, .5 Mm ((reverse Gear Thrust.) )
18
5031243
Shim ((reverse Gear Thrust.) )
18
5031696
Shim, .8 Mm ((reverse Gear Thrust.) )
18
5031244
Shim ((reverse Gear Thrust.) )
18
5031697
Shim, 1.0 Mm ((reverse Gear Thrust.) )
20
5031226
Washer ((propshaft Thrust.) )
20
5031227
Washer ((propshaft Thrust.) )
20
5031228
Washer ((propshaft Thrust.) )
20
5031229
Washer ((propshaft Thrust.) )
20
5031230
Washer ((propshaft Thrust.) )
20
5031231
Washer ((propshaft Thrust.) )
21
5031698
Thrust Washer 2.0 ((propshaft Thrust.) )
21
5031699
Thrust Washer 2.2
22
5031546
Вал гребного винта
23
5036059
Shifter, Clutch Dog
24
5031245
Штифт
25
5031251
Штифт
26
5031283
Пружина
27
5031286
Пружина
28
5031549
Толкатель
29
5031543
Втулка
1
5032801
Housing, Propshaft
2
5031255
Подшипник
3
5031270
Seal, Oil ((included In Gearcase Seal Kit P/n 5031456.) )
4
5033253
Bearing, Side-diff (new P/n For 2003 )
5
5031216
Болт
6
5031263
O-ring ((included In Gearcase Seal Kit P/n 5031456.) )
7
5032840
Driveshaft Ay
8
5031544
Кожух
9
5030443
Washer, 24x33x2.5
10
5031232
Шайба
11
5031233
Шайба
12
5031250
Штифт
13
5031258
Подшипник
14
5031285
Пружина
15
5031237
Shim ((driveshaft.) )
15
5031238
Shim ((driveshaft.) )
15
5031239
Shim ((driveshaft.) )
15
5031240
Shim ((driveshaft.) )
15
5031241
Shim ((driveshaft.) )
16
5031545
Gr Set, Fwd/pin/rev
17
5030421
Гайка
18
5031242
Shim ((reverse Gear Thrust.) )
18
5031695
Shim, .5 Mm ((reverse Gear Thrust.) )
18
5031243
Shim ((reverse Gear Thrust.) )
18
5031696
Shim, .8 Mm ((reverse Gear Thrust.) )
18
5031244
Shim ((reverse Gear Thrust.) )
18
5031697
Shim, 1.0 Mm ((reverse Gear Thrust.) )
19
5031237
Shim ((forward Gear Thrust.) )
19
5031238
Shim ((forward Gear Thrust.) )
19
5031239
Shim ((forward Gear Thrust.) )
19
5031240
Shim ((forward Gear Thrust.) )
19
5031241
Shim ((forward Gear Thrust.) )
20
5031226
Washer ((propshaft Thrust.) )
20
5031227
Washer ((propshaft Thrust.) )
20
5031228
Washer ((propshaft Thrust.) )
20
5031229
Washer ((propshaft Thrust.) )
20
5031230
Washer ((propshaft Thrust.) )
20
5031231
Washer ((propshaft Thrust.) )
21
5031698
Thrust Washer 2.0 ((propshaft Thrust.) )
21
5031699
Thrust Washer 2.2
22
5031546
Вал
23
5036059
Shifter, Clutch Dog
24
5031245
Штифт
25
5031251
Штифт
26
5031283
Пружина
27
5031286
Пружина
28
5031549
Толкатель
29
5031543
Втулка
