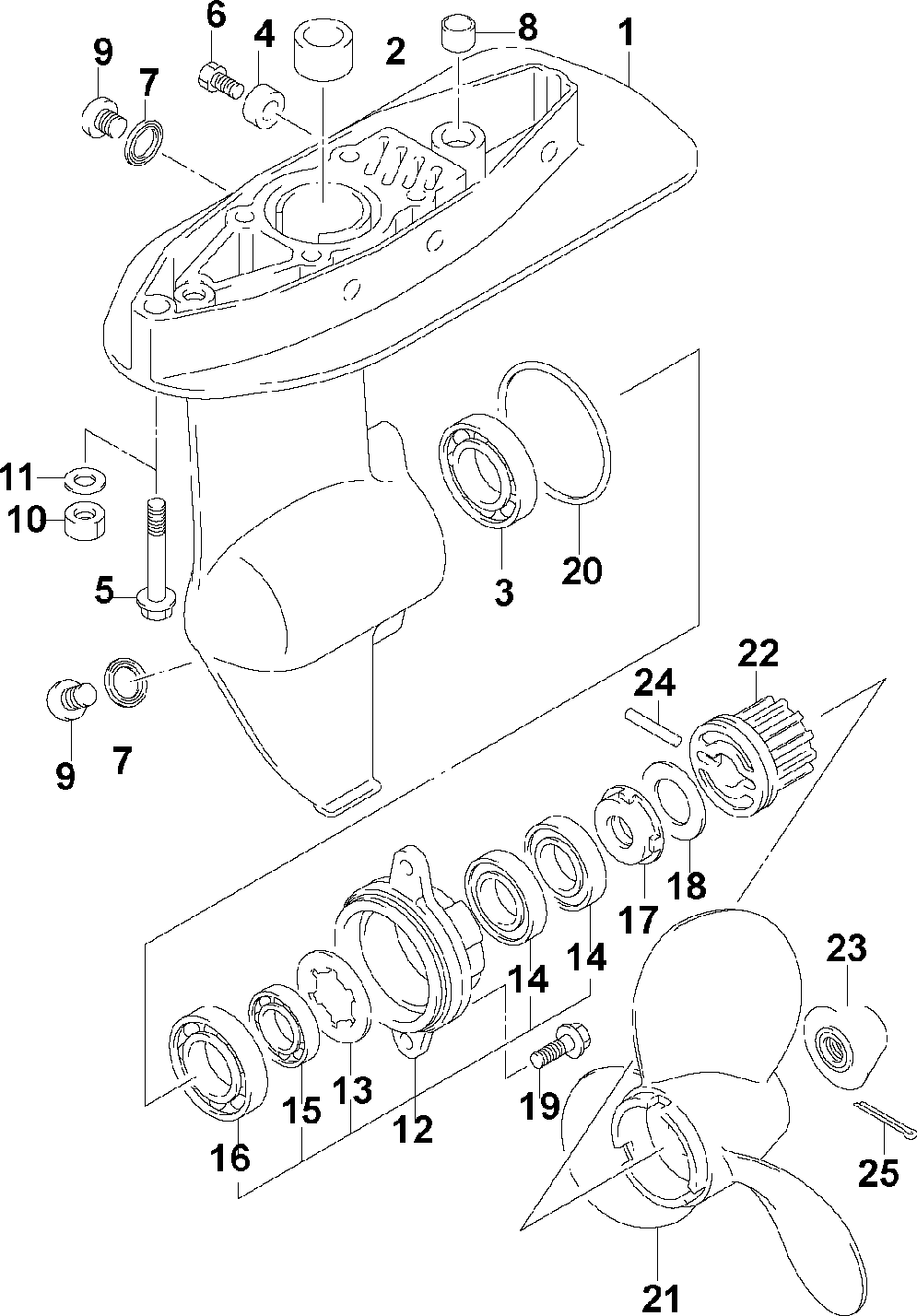

Редуктор

Johnson J5R4STS
Johnson
#oem кодцена
1
5033425
Case Assy, Gear
2
5030113
Bush 10x16x21.5
3
5030099
Bearing, 20x42x12
4
5031705
Анод
5
5031822
Bolt, 8x50
6
5030413
Screw, 6x14
7
5030071
Fill Plug Washer
8
5030092
Pin(sus)
9
5030094
Plug, Drain, 10x7.5
10
5030052
Nut (20 In. Models )
11
5030433
Washer, 8.5x16x1.2 (20 In. Models )
12
5033426
Кожух
13
5030070
Шайба-замок
14
5030108
Seal, Oil, 12x24x4.5
15
5030097
Bearing, 12x28x8
17
5030270
Protector, Oil Seal
18
5030271
Шайба
19
5030035
Болт 6x15
20
5030106
Кольцо
21
5030283
Al Prop 7.5x6, 3bld
21
5034197
Prop, Al 7.5x6.5
21
5034198
Prop, Al (7.5 X 7)
22
5030287
Bushing, Propeller
23
5030288
Nut, Propeller
24
5030084
Drive Pin 10 Pk
25
5030087
Шплинт
1
5033425
Case Assy, Gear
4
5031705
Анод
5
5031822
Bolt, 8x50
6
5030413
Screw, 6x14
7
5030071
Gasket (washer) (010 Per Pack)
9
5030094
Plug, Drain, 10x7.5
10
5030052
Nut (20 In. Models )
11
5030433
Washer, 8.5x16x1.2 (20 In. Models )
12
5033426
Кожух
13
5030070
Шайба-замок
14
5030108
Seal, Oil, 12x24x4.5
17
5030270
Protector, Oil Seal
18
5030271
Шайба
19
5030035
Болт 6x15
20
5030106
Кольцо
21
5030283
Prop, Al 7.5x6
21
5034197
Prop, Al 7.5x6.5
21
5034198
Prop, Al (7.5 X 7)
22
5030287
Bushing, Propeller
23
5030288
Nut, Propeller
24
5030084
Drive Pin 10 Pk (010 Per Pack)
25
5030087
Cotter Pin (010 Per Pack)
