КАПОТ ДВИГАТЕЛЯ Каталог оригинальных запчастей для лодочных моторов Johnson J70PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft (2002)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
2002
J70PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft

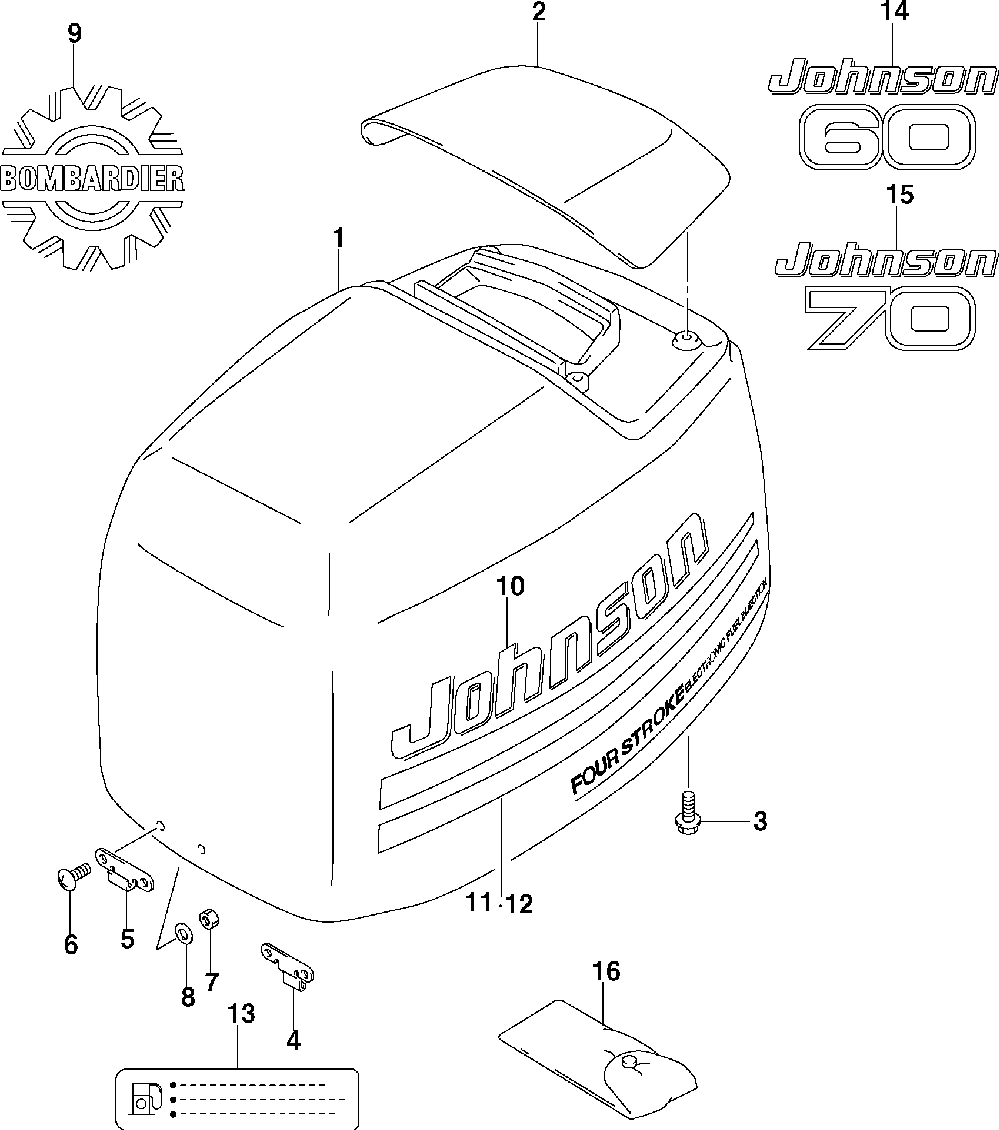

КАПОТ ДВИГАТЕЛЯ
КАПОТ ДВИГАТЕЛЯ

КАПОТ ДВИГАТЕЛЯ

Johnson J70PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft

КАПОТ ДВИГАТЕЛЯ

#

oem код

название

цена

1

Umc Ay, 60-70 Jo ((important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal..) )

Umc Ay, 60-70 Jo ((important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal..) )

2

Tilt Up Handle

Tilt Up Handle

3

Болт М6х20

Болт М6х20

4

Bracket, Cover

Bracket, Cover

5

Hook, Fastener

Hook, Fastener

6

Винт

Винт

7

Гайка

Гайка

8

Шайба

Шайба

9

Decal, Sprocket

Decal, Sprocket

10

Side Mark-johnson

Side Mark-johnson

11

Stbd Stripe

Stbd Stripe

12

Port Stripe

Port Stripe

13

Decal, Fuel Limit

Decal, Fuel Limit

14

Emblem Mark (60) ((60hp Models.) )

Emblem Mark (60) ((60hp Models.) )

15

Decal, 70hp-frt&rr ((70hp Models.) )

Decal, 70hp-frt&rr ((70hp Models.) )

16

Tool Ay

Tool Ay

1

Umc Ay, 60-70 Jo ((important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal..) )

Umc Ay, 60-70 Jo ((important: When Ordering "engine Cover Assy" Also Order Appropriate "hp" Decal..) )

2

Tilt Up Handle

Tilt Up Handle

3

Болт М6х20

Болт М6х20

4

Bracket, Cover

Bracket, Cover

5

Hook, Fastener

Hook, Fastener

6

Винт

Винт

7

Гайка

Гайка

8

Шайба

Шайба

9

Decal, Sprocket

Decal, Sprocket

10

Side Mark-johnson

Side Mark-johnson

11

Stbd Stripe

Stbd Stripe

12

Port Stripe

Port Stripe

13

Decal, Fuel Limit

Decal, Fuel Limit

14

Emblem Mark (60) ((60hp Models.) )

Emblem Mark (60) ((60hp Models.) )

15

Decal, 70hp-frt&rr ((70hp Models.) )

Decal, 70hp-frt&rr ((70hp Models.) )
