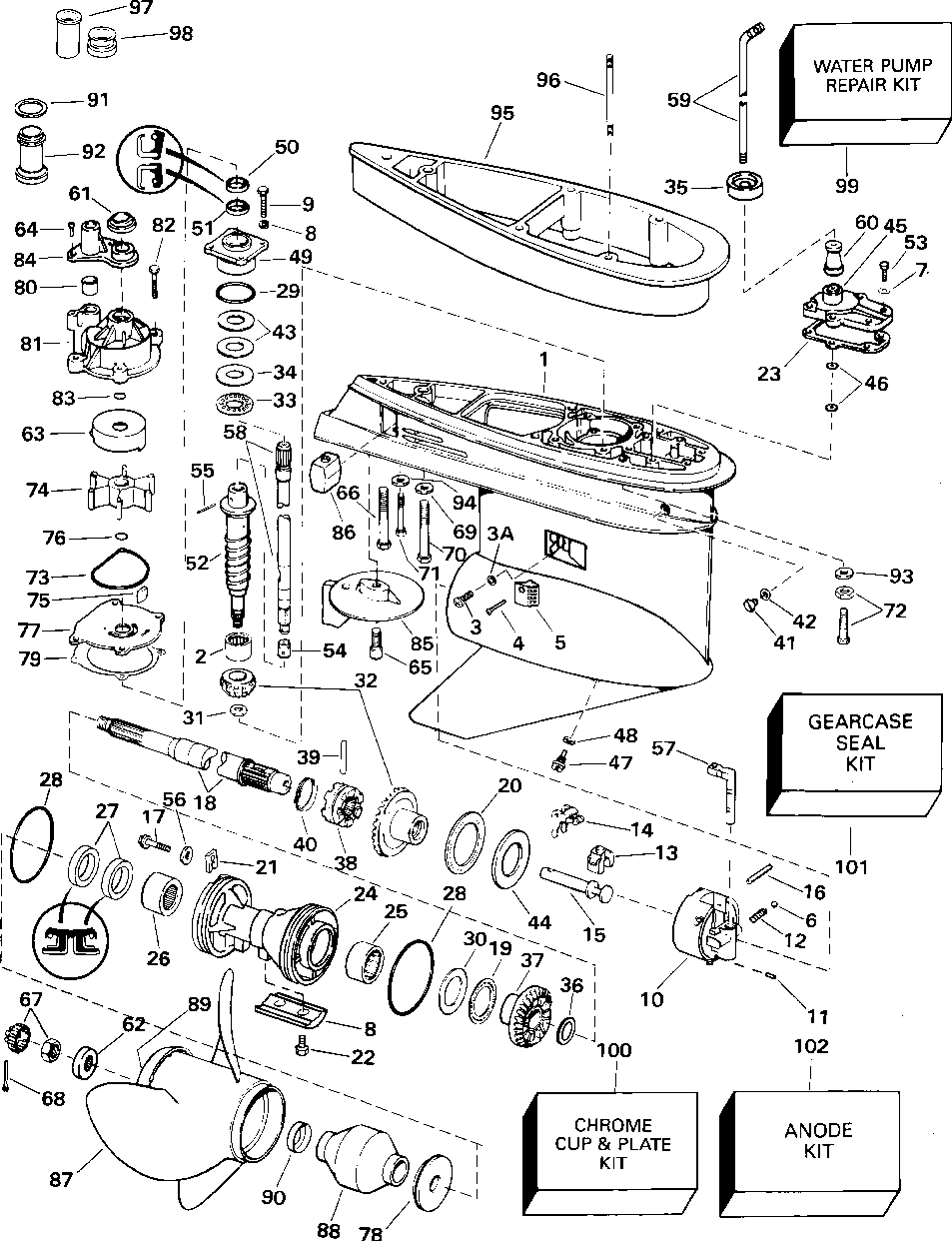

Редуктор

Johnson J105WRLSIF commercial, rope start, 20 in shaft
Johnson
#oem кодцена
5005744
G-case .44 Os Wht ((not Shown.) )
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
3A
0332584
Шайба
4
0337061
Винт
5
0337778
Screen, Water Inlet
6
0160084
Шарик
7
0328702
Шайба
8
0431708
Анодная пластина
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0331880
Штифт
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0350271
Screw, Brg Carrier
18
5004765
Propshaft Ay, Serv
19
0382408
Подшипник
20
0389042
Thrust Brg-fwd Gr
21
0333957
Retaining Tab
22
0908158
Винт
23
0352165
Gasket ((contents Of Gearcase Seal Kit.) )
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ((contents Of Gearcase Seal Kit.) )
28
0305123
O-ring ((contents Of Gearcase Seal Kit.) )
29
0314728
O Ring ((contents Of Gearcase Seal Kit.) )
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0435123
Gearset, Fwd&pin V4
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0321008
Grommet Exh Hsg ((contents Of Water Pump Repair Kit.) )
36
0336565
Шайба
37
0336574
Шестерня заднего хода
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Washer ((contents Of Gearcase Seal Kit.) )
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0397566
Thrust Washer Ay
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ((contents Of Gearcase Seal Kit.) )
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer ((contents Of Gearcase Seal Kit.) )
51
0329923
Oil Retainer ((contents Of Gearcase Seal Kit.) )
52
0345905
Driveshaft, Lower
53
0302325
Винт
54
0338504
Retainer, Dr Sft
55
0311538
Pin, Roll
56
0328743
Шайба
57
0915954
Detent
58
5000616
Driveshaft Ay ((wrl Models Only.) )
58
5000621
Driveshaft Ay ((wry Models Only.) )
59
0342994
Shift Rod 20" ((wrl Models Only.) )
61
0320943
Grommet ((contents Of Water Pump Repair Kit.) )
62
0320570
Spacer Prop Nut
63
0338486
Cup, Imp Housing ((contents Of Water Pump Repair Kit.) )
63
0338551
Cup Imp Housing
64
0306643
Screw ((contents Of Water Pump Repair Kit.) )
65
0313715
Винт
66
0330263
Screw ((wrl Models Only.) )
66
0333278
Screw ((wry Models Only.) )
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Screw ((wrl Models Only.) )
70
0333279
Screw ((wry Models Only.) )
71
0328096
Screw, Anode
72
0331999
Screw ((wrl Models Only.) )
72
0307160
Nut ((wry Models Only.) )
73
0331353
Seal ((contents Of Water Pump Repair Kit.) )
74
5001593
Kit Ay, Impeller ((contents Of Water Pump Repair Kit.) )
75
0331107
Imp Key ((contents Of Water Pump Repair Kit.) )
76
0302035
O Ring ((contents Of Water Pump Repair Kit.) )
77
0338485
Plate, Water Pump ((contents Of Water Pump Repair Kit.) )
77
0338552
Plate Water Pump
78
0126870
Bushing, Thrust
78
0127212
Bushing, Thrust
79
0338484
Gasket, Wtr Pmp 5pk ((contents Of Water Pump Repair Kit. Contents Of Gearcase Seal Kit.) )
80
0314008
Grommet ((contents Of Water Pump Repair Kit.) )
81
0435959
Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )
83
0331188
O-ring-thermostat ((contents Of Water Pump Repair Kit.) )
84
0338893
Cover, Impeller Hsg ((contents Of Water Pump Repair Kit.) )
85
0338742
Tab, Trim-std
86
0436745
Anode&insert Ay
87
0763918
Vipertbx14.75x19rh
88
0387157
Prop Hub, 15 Spline
88
0175401
Bushing Ay, Prop
89
0332394
Converging Ring
90
0313926
Гильца
91
0333272
Seal ((wry Models Only.) )
92
0333275
Spacer ((wry Models Only.) )
93
0330266
Washer ((wry Models Only.) )
94
0307161
Lockwasher ((wry Models Only.) )
95
0334552
Extension ((wry Models Only.) )
96
0333270
Stud ((wry Models Only.) )
97
0354580
Sleeve ((contents Of Water Pump Repair Kit. Wry Models Only.) )
98
0338601
Grommet ((contents Of Water Pump Repair Kit. Wry Models Only.) )
99
5001595
Рем.комплект водяного насоса
100
0435526
Cup & Plate Ay
101
5006373
Kit Ay, Seal-gc
102
0392160
Anode Kit
5005744
G-case .44 Os Wht ((not Shown.) )
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0337061
Винт
5
0337778
Screen, Water Inlet
6
0160084
Шарик
7
0328702
Шайба
8
0431708
Анодная пластина
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0331880
Штифт
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0350271
Screw, Brg Carrier
18
5004765
Propshaft Ay, Serv
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0333957
Retaining Tab
22
0908158
Винт
23
0352165
Gasket ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ((contents Of Gearcase Seal Kit.) )
28
0305123
O-ring ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)
29
0354731
O-ring ((contents Of Gearcase Seal Kit.) )
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0435123
Gearset, Fwd&pin V4
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0321008
Grommet Exh Hsg ((contents Of Water Pump Repair Kit.) )
36
0336565
Шайба
37
0336574
Gear, Reverse(.44)
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
3A
0332584
Washer 5pk (005 Per Pack)
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Washer-10 Pk ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0397566
Thrust Washer Ay
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)
47
0318544
Drain Screw
48
0311598
Washer-10 Pk ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer ((contents Of Gearcase Seal Kit.) )
51
0329923
Oil Retainer ((contents Of Gearcase Seal Kit.) )
52
0345905
Driveshaft, Lower
53
0302325
Screw (005 Per Pack)
54
0338504
Retainer, Dr Sft
55
0311538
Pin, Roll
56
0328743
Шайба
57
0915954
Detent
58
5000616
Driveshaft Ay ((wrl Models Only.) )
59
0342994
Shift Rod 20" ((wrl Models Only.) )
61
0320943
Grommet ((contents Of Water Pump Repair Kit.) )
62
0320570
Spacer Prop Nut
63
0338486
Cup, Imp Housing ((contents Of Water Pump Repair Kit.) )
63
0338551
Cup Imp Housing
64
0306643
Screw ((contents Of Water Pump Repair Kit.) )
65
0313715
Винт
66
0330263
Screw ((wrl Models Only.) )
67
5008966
Nut&keeper Ay, Prop
68
0306394
Cotter Pin 10 Pk (010 Per Pack)
69
0330265
Шайба
70
0331998
Screw ((wrl Models Only.) )
70
0333279
Screw ((wry Models Only.) )
71
0328096
Screw, Anode
72
0331999
Screw ((wrl Models Only.) )
72
0307160
Nut ((wry Models Only.) )
73
0331353
Seal ((contents Of Water Pump Repair Kit.) )
74
5001593
Kit Ay, Impeller ((contents Of Water Pump Repair Kit.) )
75
0331107
Imp Key ((contents Of Water Pump Repair Kit.) )
76
0302035
O Ring ((contents Of Water Pump Repair Kit.) )
77
0338485
Plate, Water Pump ((contents Of Water Pump Repair Kit.) )
77
0338552
Plate Water Pump
78
0126870
Bushing, Thrust
78
0127212
Bushing, Thrust
79
0338484
Gasket, Wtr Pmp 5pk ((contents Of Water Pump Repair Kit. Contents Of Gearcase Seal Kit.) ) (005 Per Pack)
80
0314008
Grommet ((contents Of Water Pump Repair Kit.) )
81
5007968
Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )
82
0302325
Screw ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)
83
0331188
O-ring ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)
84
0338893
Cover, Impeller Hsg ((contents Of Water Pump Repair Kit.) )
85
0338742
Tab, Trim-std
86
0436745
Anode&insert Ay
87
0763918
Vipertbx14.75x19rh
88
0387157
Prop Hub, 15 Spline
88
0175401
Bushing Ay, Prop
89
0332394
Converg Ring, V6
90
0313926
Гильца
93
0330266
Washer ((wry Models Only.) )
94
0307161
Lockwasher ((wry Models Only.) )
96
0333270
Stud ((wry Models Only.) )
97
0354580
Sleeve ((contents Of Water Pump Repair Kit. Wry Models Only.) )
98
0338601
Grommet ((contents Of Water Pump Repair Kit. Wry Models Only.) )
99
5001595
Рем.комплект водяного насоса
100
0435526
Cup & Plate Ay
101
5006373
Kit Ay, Seal-gc
102
0392160
Anode Kit
