Карбюратор Каталог оригинальных запчастей для лодочных моторов Johnson J3RTLSIA Commercial, Rope Start, Tiller, 20 IN. shaft (2001)

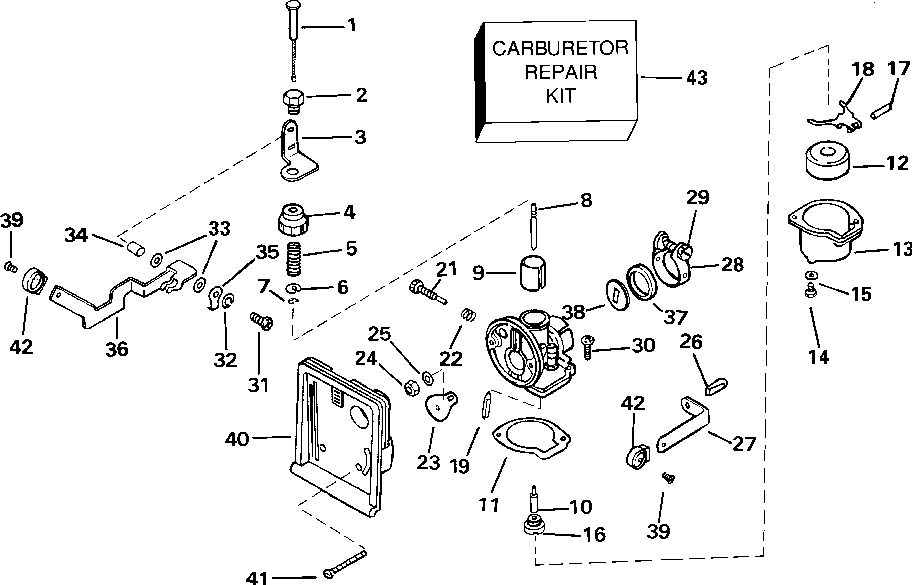

Карбюратор

Johnson J3RTLSIA Commercial, Rope Start, Tiller, 20 IN. shaft

oem код

название

цена

5005713

Carburetor Ay ((not Shown.) )

0115559

Throttle Wire ((contents Of Carburetor Repair Kit.) )

0115560

Винт

0115561

Держатель

0115563

Spring ((contents Of Carburetor Repair Kit.) )

0115564

Spring ((contents Of Carburetor Repair Kit.) )

0115565

Clip ((contents Of Carburetor Repair Kit.) )

Jet Needle 3.3hp

Throttle Valve

Needle Jet, 3.3 Hp

Gasket ((contents Of Carburetor Repair Kit.) )

0115570

Float ((contents Of Carburetor Repair Kit.) )

0115571

Поплавковая камера

0115572

Drain Screw ((contents Of Carburetor Repair Kit.) )

0115573

Gasket-drain Screw ((contents Of Carburetor Repair Kit.) )

0115602

Main Jet 3.3hp

0115575

Pin ((contents Of Carburetor Repair Kit.) )

0115576

Float Hinge ((contents Of Carburetor Repair Kit.) )

5007028

Needle, Seat&hinge ((contents Of Carburetor Repair Kit.) )

Screw-slow Stop

Пружина

Choke Plate

Гайка

Шайба

Shutter Screw

Shutter Lever

Band-carb Body

Винт

Винт

Винт

Gasket-throttle

Манжета

Supporter

Throttle Lever

O'ring, Carburetor ((contents Of Carburetor Repair Kit.) )

Screw-knob

Air Silencer&decal

Винт

Ручка

Рем.компл.Карбюратора
