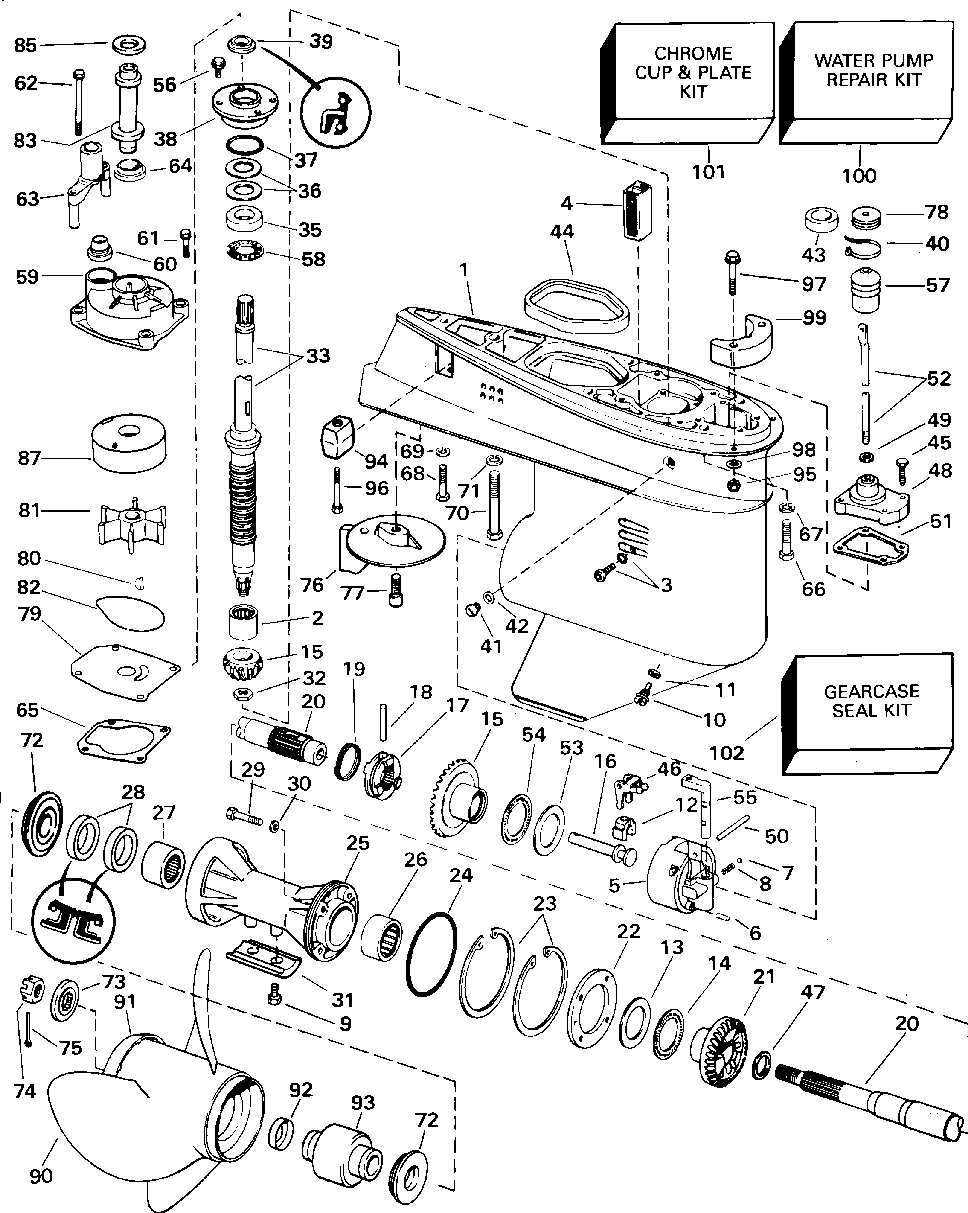

Редуктор Каталог оригинальных запчастей для лодочных моторов Johnson J55WRSIR commercial, rope start, 15 in shaft (2001)

Редуктор

Johnson J55WRSIR commercial, rope start, 15 in shaft

oem код

название

цена

5005598

Gearcase Ay - 20" ((not Shown. 20 In. (508mm) Models Only.) )

Корпус редуктора

Подшипник

Retaining Screw

Washer 5pk ((not Shown.) )

Водозаборная решетка

Brg Hgs, Pin&spring

Штифт

Ball, Detent

Пружина

Винт

Drain Screw

Шайба

Cradle-shift

Шайба

Подшипник

Gearset, Fwd&pin

Вал

Рычаг переключения

Штифт

Пружина

Вал гребново винта

Reverse Gear

Plate, Retainer

Прокладка

O-ring ((contents Of Gearcase Seal Kit.) )

Bearing Hsg Ay

Подшипник игольчатый

Needle Brg Ay

Seal, Drl 5-pk ((contents Of Gearcase Seal Kit.) )

0320041

Screw Brg Hsg ((contents Of Gearcase Seal Kit.) )

0431708

Анодная пластина

0313339

Гайка

5000174

Driveshaft Ay 20 ((20 In. (508mm) Models Only.) )

5000175

Driveshft Ay, 22.5 ((22.5 In. (571mm) Models Only.) )

Упорная шайба

Shim-pinion .003

Shim-pinion .004

Shim 005

O-ring ((contents Of Gearcase Seal Kit.) )

0385087

Dr Shft Brgseal3/4

0342786

Seal, Oil(.750) ((contents Of Gearcase Seal Kit.) )

0320107

Tie Strap 100pk ((20 In. (508mm) Models Only. 22.5 In. (571mm) Models Only.) )

0307551

Drain Fill Plg 10p ((contents Of Gearcase Seal Kit.) )

0305762

Seal Ring ((wrl Models Only.) )

0324937

Seal ((contents Of Gearcase Seal Kit.) )

Винт

Shifter Lever

Упорная шайба

Cvr&bush Ay Shftrd

O-ring ((contents Of Gearcase Seal Kit.) )

0320145

Штифт

0314082

Gasket 5 Pk ((contents Of Gearcase Seal Kit.) )

0327366

Shift Rod Std ((wrl Models Only. 20 In. (508mm) Models Only.) )

0327367

Shift Rod-long ((20 In. (508mm) Models Only.) )

0330704

Shift Rod-long ((22.5 In. (571mm) Models Only.) )

Упорная шайба

Thrust Brg Ay

Detent-shifter

Screw-ret Plate

Seal ((20 In. (508mm) Models Only. 22.5 In. (571mm) Models Only.) )

0385068

Подшипник опорный

0438545

Hsg Ay, Impeller ((rope Models.) )

0333758

Grommet ((rope Models.) )

0337574

Screw ((rope Models.) )

0438424

Bracket Ay

0341732

Grommet ((rope Models.) )

0336530

Gasket, W/p Plate ((rope Models.) )

0305282

Screw ((wrl Models Only. 20 In. (508mm) Models Only.) )

0307708

Lockwasher ((wrl Models Only. 20 In. (508mm) Models Only.) )

0306503

Screw ((wrl Models Only. 20 In. (508mm) Models Only.) )

0328561

Screw ((22.5 In. (571mm) Models Only.) )

0306470

Стопорная шайба

0313697

Screw ((wrl Models Only. 20 In. (508mm) Models Only.) )

0329022

Screw ((22.5 In. (571mm) Models Only.) )

Lockwasher 4pk

Bushing, Thrust

Проставка

Гайка гребного винта

Шплинт

Tab, Trim

Винт

Grommet ((20 In. (508mm) Models Only. 22.5 In. (571mm) Models Only.) )

0341038

Imp Hsg Plate ((stainless Steel. Rope Models.) )

0341187

Plate ((chrome Plated.) )

0334897

Key, Imp - Blk ((rope Models.) )

0396725

Imp & Key Ay ((rope Models.) )

0324981

Seal-imp Hsg ((rope Models.) )

0330205

Spacer ((22.5 In. (571mm) Models Only.) )

0329171

Seal ((22.5 In. (571mm) Models Only.) )

0340619

Cup, Impeller Hsg ((stainless Steel. Rope Models.) )

0341186

Cup, Impeller Hsg ((chrome Plated.) )

0765182

Prop Ay, Al 13.5x15 ((refer To Genuine Parts Propeller Chart.) )

Converging Ring

Гильца

Prop Hub 50-135 Hp

Anode Kit ((not Shown.) )

Anode&insert Ay

Гайка

Screw, Anode

Screw-imp Hsg

Стопорная шайба

Анодная пластина

100

5000308

Рем.комплект водяного насоса

101

0389145

Chrome Pump Kit

102

5000309

Kit Ay, Seal-grc
